  9. Round OEM Blower, 3400 RPM, 1 Phase, Direct, Plastic 1 Speed

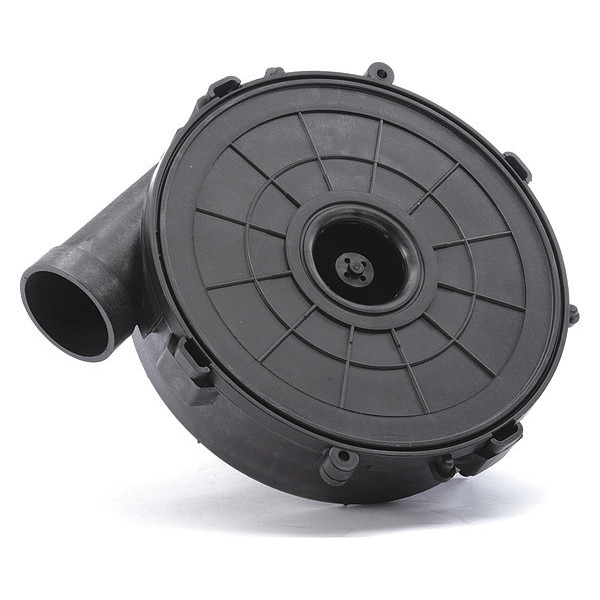

Fasco Round OEM Blower, 3400 RPM, 1 Phase, Direct, Plastic 1 Speed A203 - main

Round OEM Blower, 3400 RPM, 1 Phase, Direct, Plastic 1 Speed

  • Mfr # A203

  • Zoro # G2031410

product price: $250.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct
Full Load Amps
1.80
Housing Material
Plastic
Inlet Dia.
2 in
Number of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A203
Zoro #
G2031410
UPC #
815585025313
Country of Origin
Mexico

Dimensions

Inlet Dia.
2 in
Overall Height
9 1/2 in
Overall Width
9 1/2 in
Blower Wheel Diameter
7 1/2 in
Blower Wheel Width
1 5/16 in
Lead Length
6 in
Overall Depth
6 in
Outlet Diameter
2 3/8 in
Inlet Diameter
2 in
Wheel Diameter
7 1/2 in

Details

Drive Type
Direct
Full Load Amps
1.80
Housing Material
Plastic
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
No
Blower Motor Type
Shaded Pole
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Mounting Position
Shaft Horizontal
Max. Ambient Temp.
104 Degrees F
Replaces
Mfr. Model No. 7021-10841, 49L5302
Bearing Type
Ball
Motor Enclosure
Open Internal Fan-Cooled
Wheel Type
Backward-Curved
Motor Insulation
Class B
Max. Inlet Temp.
180 Degrees F
Item
OEM Blower
RPM
3400
Housing Color
Black
Agency Compliance
CSA Compliant, UL Recognized
Hz
60
Replacement For Manufacturer Model Number
49L5301, 7021-10841
Electrical Connection
Wire Leads
Motor Type
Shaded Pole
Compatible with Brand
Lennox
Nameplate Voltage
115V AC
Maximum Static Pressure
3 5/8 in wc
Frequency
60 Hz
Maximum Inlet Air Temperature
180 Degrees F
Application
Furnaces
Maximum Motor Speed
3,400 RPM
Maximum Fan Speed
3,400 RPM
Wheel Material
Polypropylene
Motor Insulation Class
B
Mounting Orientation
Horizontal
Outlet Shape
Round
Airflow @ 0.000 in SP
85 cfm
Standards
CSA Certified, UL Listed
Current
1.8 A
OEM Replacement
Yes
Voltage
115VAC

Description

OEM Blower, Application Furnaces, Inlet Diameter 2 in, Outlet Diameter 2 3/8 in, Compatible with Brand Lennox, Replacement For Manufacturer Model Number 49L5301, 7021-10841, Nameplate Voltage 115V AC, Phase 1, Current 1.8 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Shaded Pole, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM, Maximum Motor Speed 3,400 RPM, Maximum Inlet Air Temperature 180 Degrees F, Maximum Static Pressure 3 5/8 in wc, Airflow @ 0.000 in SP 85 cfm
