  9. Round OEM Blower, 3400/2400 RPM, 1 Phase, Direct, Plastic 2 Speed

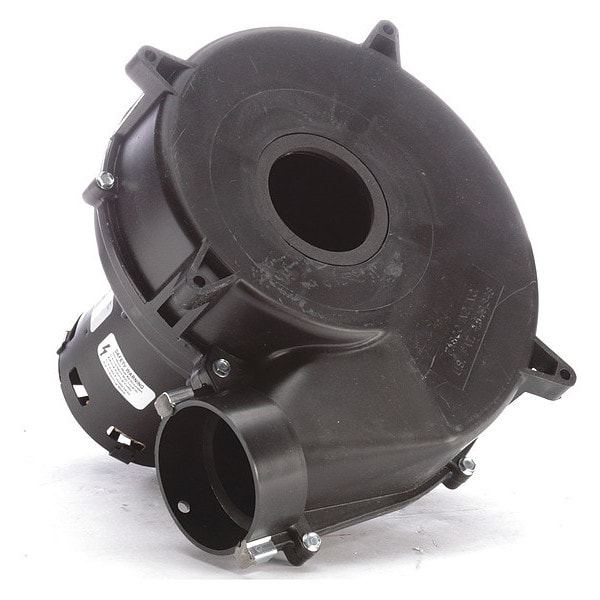

Fasco Round OEM Blower, 3400/2400 RPM, 1 Phase, Direct, Plastic 2 Speed A246 - main

Round OEM Blower, 3400/2400 RPM, 1 Phase, Direct, Plastic 2 Speed

  • Mfr # A246

  • Zoro # G2031121

product price: $265.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct
Full Load Amps
0.85
Housing Material
Plastic
Number of Speeds
2
Overall Height
9 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A246
Zoro #
G2031121
UPC #
815585026112
Country of Origin
Mexico

Dimensions

Overall Height
9 1/8 in
Overall Width
7 3/4 in
Blower Wheel Diameter
4 3/4 in
Blower Wheel Width
1 11/16 in
Lead Length
9 in
Overall Depth
7 in
Inlet Diameter
2 in
Wheel Diameter
4 5/8 in
Outlet Diameter
2 3/8 in

Details

Drive Type
Direct
Full Load Amps
0.85
Housing Material
Plastic
Number of Speeds
2
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
No
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Motor Insulation
Class B
Item
OEM Blower
Housing Color
Black
Max. Ambient Temp.
104 Degrees F
Wheel Type
Forward-Curved
Hz
60
Mounting Position
Shaft Horizontal
Motor Enclosure
Open
Agency Compliance
CSA Compliant, UL Recognized
RPM
3400/2400
Max. Inlet Temp.
180 Degrees F
Bearing Type
Ball
Replaces
Mfr. Model No. 70-24206-01, 7062-3925
Wheel Material
Polypropylene
Nameplate Voltage
115V AC
Standards
CSA Certified, UL Listed
Airflow @ 0.000 in SP
99 cfm
Maximum Inlet Air Temperature
180 Degrees F
Mounting Orientation
Horizontal
Maximum Motor Speed
3,400 RPM
Electrical Connection
Wire Leads
Current
0.85 A
OEM Replacement
Yes
Maximum Static Pressure
3 7/8 in wc
Maximum Fan Speed
3,400 RPM
Motor Insulation Class
B
Compatible with Brand
Rheem, RUUD
Replacement For Manufacturer Model Number
70-24206-01, 7062-3925
Motor Type
Permanent Split Capacitor
Outlet Shape
Round
Application
Furnaces
Frequency
60 Hz
Voltage
115VAC

Description

OEM Blower, Application Furnaces, Inlet Diameter 2 in, Outlet Diameter 2 3/8 in, Compatible with Brand Rheem, RUUD, Replacement For Manufacturer Model Number 70-24206-01, 7062-3925, Nameplate Voltage 115V AC, Phase 1, Current 0.85 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM, Maximum Motor Speed 3,400 RPM, Maximum Inlet Air Temperature 180 Degrees F, Maximum Static Pressure 3 7/8 in wc
