  9. Round OEM Blower, 3450 RPM, 1 Phase, Direct, Plastic 1 Speed

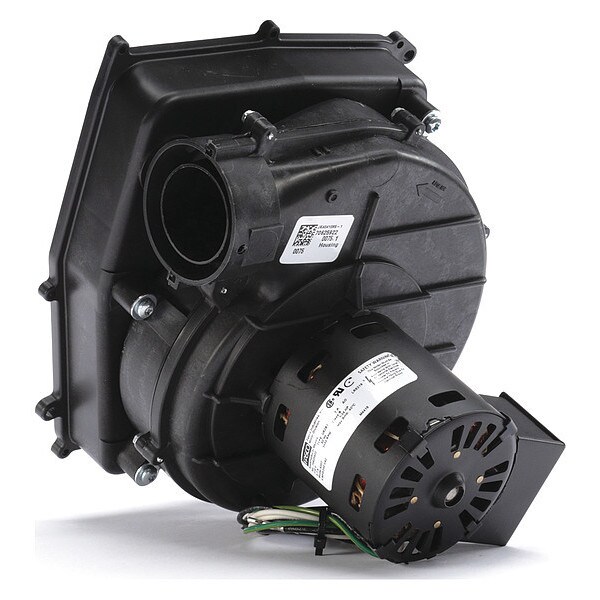

Fasco Round OEM Blower, 3450 RPM, 1 Phase, Direct, Plastic 1 Speed A307 - main

Round OEM Blower, 3450 RPM, 1 Phase, Direct, Plastic 1 Speed

  • Mfr # A307

  • Zoro # G2030841

original price: $311.99
9% off
new price: $281.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct
Full Load Amps
0.70
Housing Material
Plastic
Includes
Parts Kit
Number of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A307
Zoro #
G2030841
UPC #
815585026648
Country of Origin
Mexico

Dimensions

Overall Height
9 1/2 in
Overall Width
8 1/2 in
Blower Wheel Diameter
4 3/4 in
Blower Wheel Width
1 11/16 in
Overall Depth
8 1/8 in
Lead Length
31 in
Outlet Diameter
2 7/8 in
Wheel Diameter
4 5/8 in
Inlet Diameter
5 3/4 in

Details

Drive Type
Direct
Full Load Amps
0.70
Housing Material
Plastic
Includes
Parts Kit
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
No
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
Yes
Agency Compliance
CSA Compliant, UL Recognized
Item
OEM Blower
Mounting Position
Shaft Horizontal
Bearing Type
Sleeve
Motor Enclosure
Open
Max. Inlet Temp.
180 Degrees F
Housing Color
Black
Replaces
Mfr. Model No. 1008416P, Mfr. Model No. 1149097, Mfr. Model No. 7062-3794, Mfr. Model No. 7062-5165
Motor Insulation
Class B
Wheel Type
Forward-Curved
RPM
3450
Max. Ambient Temp.
104 Degrees F
Hz
60
Nameplate Voltage
115V AC
Outlet Shape
Round
Current
0.7 A
Frequency
60 Hz
Application
Furnaces
Motor Insulation Class
B
Replacement For Manufacturer Model Number
1008416P, 1149097, 7062-3794, 7062-5165
Mounting Orientation
Horizontal
Maximum Inlet Air Temperature
180 Degrees F
Maximum Fan Speed
3,450 RPM
Motor Type
Permanent Split Capacitor
Compatible with Brand
Intercity Products
Standards
CSA Certified, UL Listed
OEM Replacement
Yes
Maximum Motor Speed
3,450 RPM
Wheel Material
Polypropylene
Electrical Connection
Wire Leads
Voltage
115VAC

Description

OEM Blower, Application Furnaces, Inlet Diameter 5 3/4 in, Outlet Diameter 2 7/8 in, Compatible with Brand Intercity Products, Replacement For Manufacturer Model Number 1008416P, 1149097, 7062-3794, 7062-5165, Nameplate Voltage 115V AC, Phase 1, Current 0.7 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Fan Speed 3,450 RPM, Maximum Motor Speed 3,450 RPM, Maximum Inlet Air Temperature 180 Degrees F
