  9. Round OEM Blower, 3500 RPM, 1 Phase, Direct, Aluminum 1 Speed

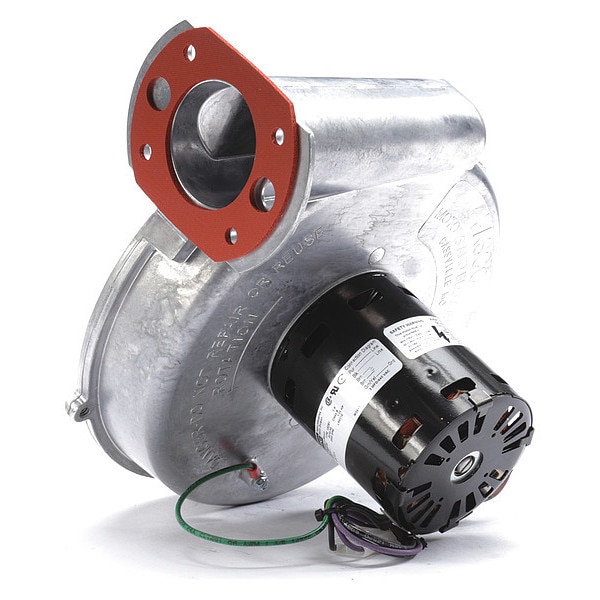

Fasco Round OEM Blower, 3500 RPM, 1 Phase, Direct, Aluminum 1 Speed A274 - main

Round OEM Blower, 3500 RPM, 1 Phase, Direct, Aluminum 1 Speed

  • Mfr # A274

  • Zoro # G2031036

product price: $492.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct
Full Load Amps
0.37/0.33
Housing Material
Aluminum
Includes
Gasket
Number of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A274
Zoro #
G2031036
UPC #
815585026327
Country of Origin
Mexico

Dimensions

Overall Height
10 1/2 in
Overall Width
9 1/2 in
Blower Wheel Diameter
7 7/8 in
Lead Length
12 in
Blower Wheel Width
3/4 in
Overall Depth
8 in
Outlet Diameter
2 1/4 in
Wheel Diameter
7 3/4 in
Inlet Diameter
8 3/4 in

Details

Drive Type
Direct
Full Load Amps
0.37/0.33
Housing Material
Aluminum
Includes
Gasket
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
Yes
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
208/230V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Wheel Type
Backward-Curved
Bearing Type
Ball
Motor Insulation
Class B
Item
OEM Blower
Replaces
Mfr. Model No. 7062-3973, X38040311-01
Housing Color
Natural
Motor Enclosure
Open
Max. Ambient Temp.
104 Degrees F
Agency Compliance
CSA Compliant, UL Recognized
RPM
3500
Hz
50/60
Mounting Position
All Position
Max. Inlet Temp.
200 Degrees F
Electrical Connection
Wire Leads
OEM Replacement
Yes
Maximum Static Pressure
3 1/4 in wc
Outlet Shape
Round
Replacement For Manufacturer Model Number
7062-3973, X38040311-01
Airflow @ 0.000 in SP
32 cfm
Motor Insulation Class
B
Maximum Inlet Air Temperature
200 Degrees F
Standards
CSA Certified, UL Listed
Wheel Material
Aluminum
Motor Type
Permanent Split Capacitor
Maximum Motor Speed
3,500 RPM
Maximum Fan Speed
3,500 RPM
Current
0.34 A
Application
Furnaces
Compatible with Brand
Trane
Nameplate Voltage
208-230V AC
Frequency
50/60 Hz
Voltage
208/230VAC

Description

OEM Blower, Application Furnaces, Inlet Diameter 8 3/4 in, Outlet Diameter 2 1/4 in, Compatible with Brand Trane, Replacement For Manufacturer Model Number 7062-3973, X38040311-01, Nameplate Voltage 208-230V AC, Phase 1, Current 0.34 A, Frequency 50/60 Hz, Electrical Connection Wire Leads, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Fan Speed 3,500 RPM, Maximum Motor Speed 3,500 RPM, Maximum Inlet Air Temperature 200 Degrees F, Maximum Static Pressure 3 1/4 in wc
