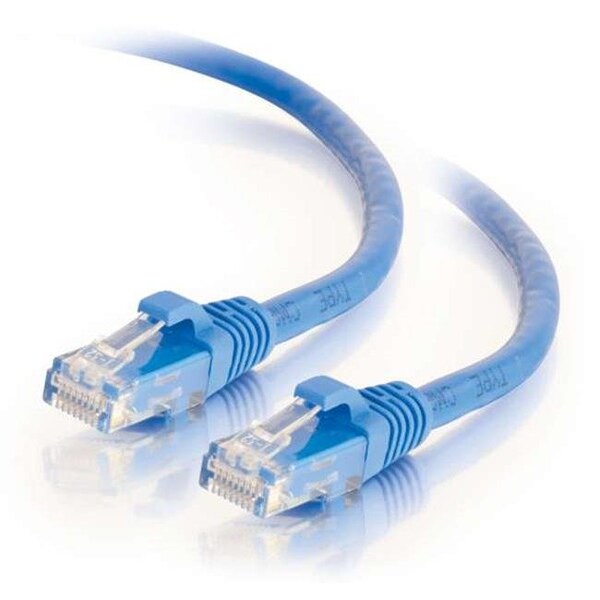

20 ft. Cat6 Snagless Unshielded-UTP Ethernet Network Patch Cable - Blue

For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.

• Snagless design protects clips when plugging and unplugging
• Standard RJ45 connectors and unshielded twisted pair wires

• Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
• Insulation - H-D PE
• Diameter - 0.98 ± 0.05 mm

• Connector Type - 8P8C (RJ45)
• Connector Material - Polycarbonate
• Contact Material - Copper Alloy, Gold Plating - 50μm
• Hood Material - Molded PVC

• Jacket - PVC
• Minimum Average Thickness - 0.60mm
• Outer Diameter - 6.20 ± 0.30 mm

• Color: Blue
• Conductor DC Resistance: 9.38 Ohm 100m (maximum)
• Impedance: 100 Ohm
• Capacitance: 5600pf/100m
• Voltage Rating: 30V
• Temperature Rating: 60°C
• Size: 20 ft.
• Weight : 0.509 lbs
