CR12600SE-P3 3V Lithium Battery Cell with PC Pins CR12600SE-FT3 (Discontinued)

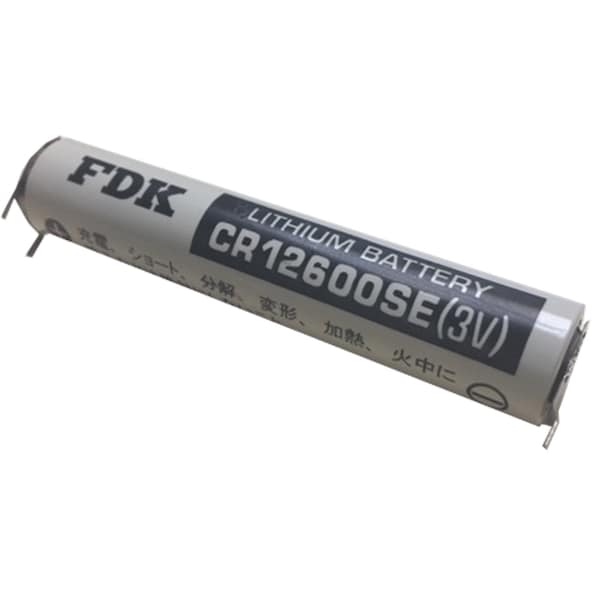

FDK CR12600SE-P3 3V Lithium Cell with PC Pins Replaces Sanyo CR12600SE-FT3
FDK CR12600SE-P3 3V Lithium Battery is a high-capacity cylindrical-type Primary Lithium Battery with a bobbin structure and laser-sealing. The CR12600SE-P3 uses Lithium Manganese Dioxide chemistry for a high energy density and a wide operating temperature range of -40?C to + 85?C. Self discharge is low at less than 0.5% per annum at 20?C, giving an effective shelf life of 10 years. This CR12600SE-P3 3V Lithium battery is widely used in numerical control systems, personal computers and other electronics applications.
FDK CR12600SE-P3 3V Lithium Battery Specifications:
Brand: FDK
Type: Lithium
Voltage: 3.0
Capacity: 1500 mAh
Size: 0.47" dia. x 2.36" tall
Contacts: PC Pins
250mA Pulse Current 15mA Continuous Current
Low self discharge rate gives this cell a 10 year shelf life.
Stable voltage broad temperature range (-40?C to +85?C).
High energy, high reliability 3.0 volt power source is an excellent choice for memory backup applications.
Note: We ship lithium batteries in accordance with U.S. Department of Transportations CFR 49. This may mean additional shipping charges in which case you will be contacted within 48 hours. If you have any questions contact us directly.

• •
• •
• •
