  5. Miniature Circuit Breaker, UBIF Series, 20A, 1 Pole, 120/240V AC, 10kA at 120V AC

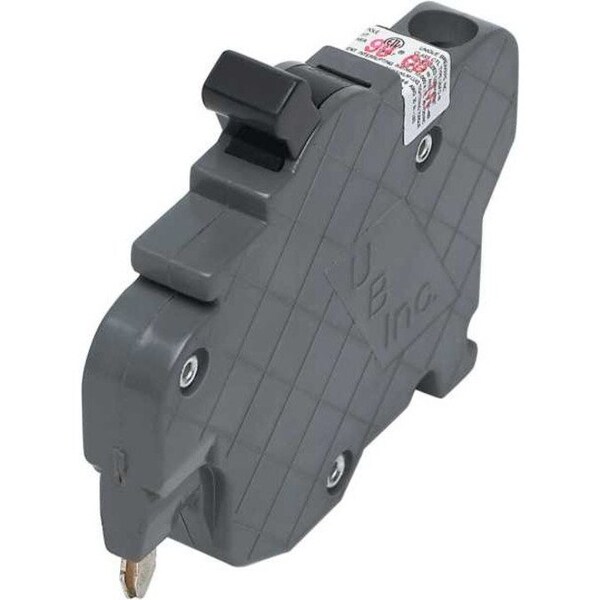

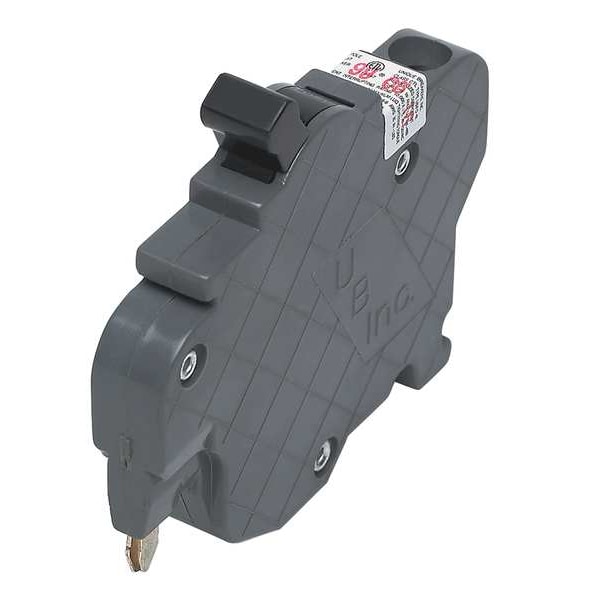

Federal Pacific Miniature Circuit Breaker, UBIF Series, 20A, 1 Pole, 120/240V AC, 10kA at 120V AC UBIF020N - main

Miniature Circuit Breaker, UBIF Series, 20A, 1 Pole, 120/240V AC, 10kA at 120V AC

  • Mfr # UBIF020N

  • Zoro # G1331294

CAD Available
product price:  $37.25
/ea

Key Features

CAD Drawing
Series
UBIF
Amps
20A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UBIF020N
Zoro #
G1331294
UPC #
094925019315
Country of Origin
Philippines

Dimensions

Frame Size
60A/SWD
Width
1/2 in
Depth
2.55 in
Height
3.36 in
Max. Wire Size
6 AWG
Min. Wire Size
14 AWG
Length
3.36 in

Details

CAD Available
Yes
Item
Miniature Circuit Breaker
Series
UBIF
Amps
20A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120V AC
Trip Type
Thermal
Instantaneous Trip
No
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Standards
ETL listed
For Use With
Federal Pacific Load Centers
Compatible Panelboard/Load Center Series
X125-0816C
Max. Operating Temp.
250 Degrees F
Min. Operating Temp.
0 Degrees F
Form Factor
Plug-in
Compatibility
Federal Pacific Load Centers
Package Contents
Type: FN, Requires 1/2 of one 1-in space, SWD rated, 120/240 volt AC
Voltage
120/240VAC

Description

Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series X125-0816C, Phase Single, Series UBIF, Max. AIR Rating 10kA at 120V AC, For Use With Federal Pacific Load Centers, Terminal Connection Lug, Frame Size 60A/SWD, Length 3.36 in, Width 0.5 in, Depth 2.55 in, Min. Operating Temp. 0 Degrees F
