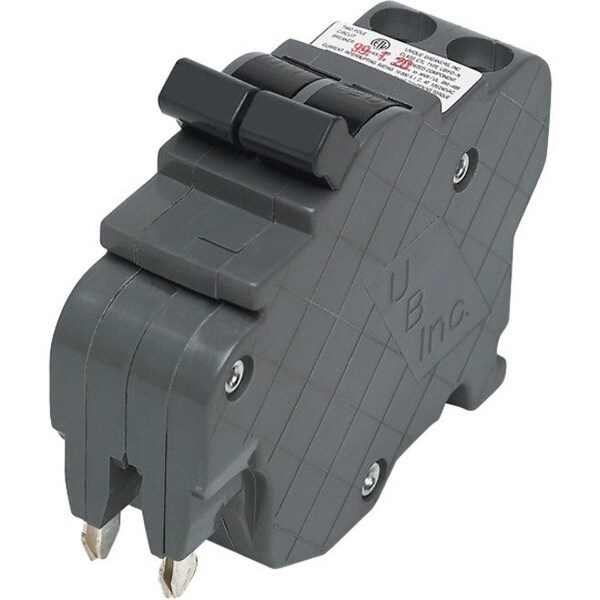

Federal Pacific Miniature Circuit Breaker, UBIF Series, 20A, 2 Pole, 120/240V AC, 10kA at 120/240V AC UBIF0220N - main
Shop FEDERAL PACIFIC

Miniature Circuit Breaker, UBIF Series, 20A, 2 Pole, 120/240V AC, 10kA at 120/240V AC

  • Mfr # UBIF0220N

  • Zoro # G3215222

CAD Available
product price:  $77.69
/ea

Key Features

CAD Drawing
Series
UBIF
Amps
20A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
UBIF0220N
Zoro #
G3215222
UPC #
094925019339
Country of Origin
Philippines

Dimensions

Frame Size
70A/HACR
Width
1 in
Depth
2.55 in
Height
3.36 in
Min. Wire Size
14 AWG
Max. Wire Size
10 AWG
Length
3.4 in

Details

CAD Available
Yes
Item
Miniature Circuit Breaker
Series
UBIF
Amps
20A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120/240V AC
Trip Type
Thermal
Instantaneous Trip
No
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
For Use With
Federal Pacific Load Centers
Standards
ETL Listed, UL Listed
Min. Operating Temp.
0 Degrees F
Compatible Panelboard/Load Center Series
X125-0816C
Max. Operating Temp.
250 Degrees F
Form Factor
Plug-in
Voltage
120/240VAC

Description

Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series X125-0816C, Phase Single, Series UBIF, Max. AIR Rating 10kA at 120/240V AC, For Use With Federal Pacific Load Centers, Terminal Connection Lug, Frame Size 70A/HACR, Length 3.4 in, Width 1 in, Depth 2.6 in, Min. Operating Temp. 0 Degrees F
