Shop FEDERAL SIGNAL

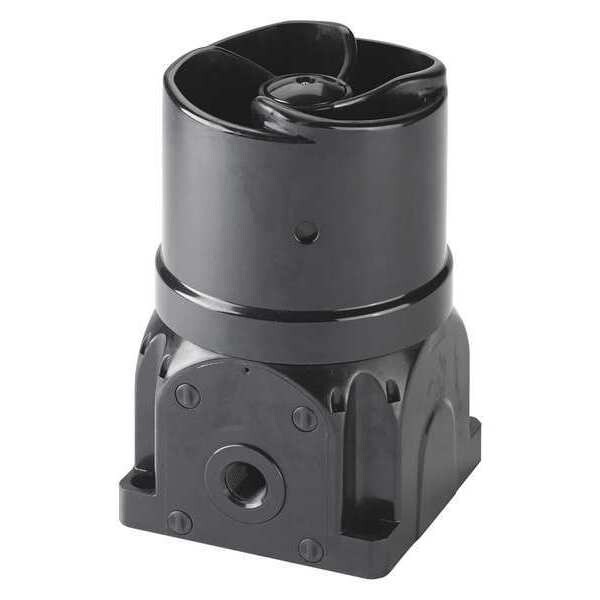

Amplified Speaker, Siren, Continuous, 120/230V AC, 24V DC, 96 dB, Glass Reinforced Polyester, Black

  • Mfr # G-SPA-MV-D

  • Zoro # G5577306

product price:  $804.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Glass Reinforced Polyester
Mounting
Surface
Amps
0.14/0.08/0.46
Color
Black
Audible Alarm Type
Siren
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G-SPA-MV-D
Zoro #
G5577306
UPC #
782979233992
Country of Origin
United States

Dimensions

Width
5.2344 in
Depth
5.2344 in
Height
8.2344 in
Overall Depth
5 3/4 in
Overall Height
8 1/4 in
Overall Width
10 3/4 in

Details

Item
Amplified Speaker
Housing Material
Glass Reinforced Polyester
Mounting
Surface
Amps
0.14/0.08/0.46
Color
Black
Audible Alarm Type
Siren
Voltage
120/230V AC, 24V DC
Standards
ATEX, ATEx: Baseefa15ATEX0155X, cUL Listed, Ex db IIB T5 Gb or Ex db e IIB T5 Gb, Ex db IIC T4 Gb or Ex db e IIC T4 Gb, Ex tb IIIC T100 Degrees C Db IP66, Ex tb IIIC T135 Degrees C Db IP66, IECEx, IECEx: IECEx BAS 15.0104X, UKEX Certified, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
96 dB
Sound Pattern
Continuous
Hazardous Division
2
Visual Indicator Type
No Visual Indicator
Hazardous Class
I
Operating Temp.
-58 Degrees to 158 Degrees F
Vibrating
No
Watts
15 W
Housing Color
Black
Rating
IP 66
Driver Configuration
1-Way
Sensitivity
110 dBA
Compatible Input Voltage
0.8V, 2.8V
For Hazardous Location
Class I, Division 2, Class II, Division 2
IP Rating
IP66
NEMA Rating
NEMA 4X
Power Voltage
120VAC, 230VAC, 24 V DC
Mounting Style
Surface Mount
Explosion-Proof Standards
Ex d
Output Wattage - RMS
15 W
For Location
Indoor, Outdoor
Power Style
Powered

Description

FEDERAL SIGNAL G-SPA-MV-D is an amplified speaker with a continuous siren output for audible warning and signaling. Rated for 120/230V AC or 24V DC power input, it features a black glass-reinforced polyester housing with an indoor/outdoor location rating and listed hazardous location ratings.

Key Features:

  • Audible alarm type: Siren with continuous sound pattern
  • Sound output: 96 dB
  • Power input: 120/230V AC, 24V DC
  • Current draw: 0.14/0.08/0.46 A
  • Output wattage: 15 W RMS
  • Housing material: Glass-reinforced polyester
  • Housing color: Black
  • Mounting: Surface mount
  • Location rating: Indoor, outdoor
  • Ingress/enclosure ratings: IP66, NEMA 4X
  • Hazardous location ratings: Class I, Division 2; Class II, Division 2
  • Explosion-proof standard: Ex d
  • Standards: Multiple applicable certifications and listings
  • Operating temperature: -58 to 158 degrees F
  • Overall dimensions: 8 1/4 in. H x 10 3/4 in. W x 5 3/4 in. D
