Shop FEDERAL SIGNAL

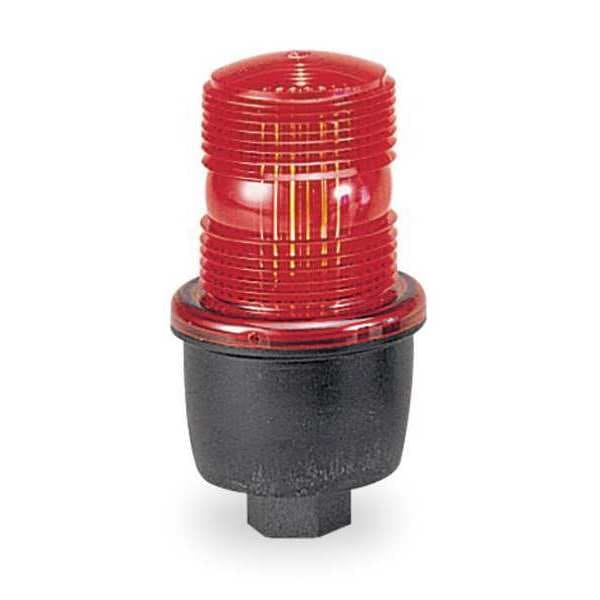

Low Profile Warning Light, Strobe, Red

  • Mfr # LP3P-120R

  • Zoro # G0972176

product price:  $150.99
/ea
Free Shipping & Returns

Key Features

Light Color
Red
Lens Color
Red
Lighting Technology
Strobe Tube
IP Rating
IP66, IP69K
Overall Diameter
3 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LP3P-120R
Zoro #
G0972176
UPC #
782979203360
Country of Origin
United States

Dimensions

Overall Diameter
3 1/8 in
Overall Height
5-3/4 in
Footprint Diameter
3 1/8 in
Overall Depth
5 13/16 in

Details

Item
Warning Light
Light Color
Red
Lens Color
Red
Lighting Technology
Strobe Tube
IP Rating
IP66, IP69K
Lens Material
Polycarbonate
Electrical Connection
Wire Leads
Mount Style
Flush Mount
Lens Design
Screw-on Dome
Mounting
(F) 1/2 in NPT
Power Source
Wire
Light Output
2.2 Joules
Rating
IP66, NEMA 4X
Housing Material
Polycarbonate
Lamp Life
7,000 hrs
Standards
CE, CSA Certified, cUL Listed, UKCA, UL Listed
Voltage
TRUE
Flashes per Minute
80
Includes
Surface Gasket
Material
polycarbonate
Features
Conformal Coated PCBA
Housing Color
Black
Product Type
Strobe Light
Connection Type
Wire Leads
NEMA Rating
NEMA 4X
Mounting Style
Flush Mount
Operating Temperature - Minimum
-31 Degrees F
Footprint Shape
Circle
Operating Current
0.100 A @ 120V AC
Includes Mounting Hardware
Mounting Hardware Included
Light Operating Mode
Strobe
Lens Shape
Dome
Requires Base
Base Not Required
Lifespan
4,000 hr
Brightness Selection
Fixed Brightness
Control Protocol
Direct Wire
Operating Temperature - Maximum
150 Degrees F
Light Intensity
175,000 cd
Maximum Operating Temperature
150 Degrees F
Current
0.100 A @ 120V AC
Minimum Operating Temperature
-31 Degrees F

Description

Warning Light, Color Red, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 2.2 Joules, Lamp Life 7,000 hr, Lens Design Screw-on Dome, Lens Material Polycarbonate, Housing Material Polycarbonate, Mounting (F) 1/2 in NPT, Operating Temp. -31 Degrees to 150 Degrees F, Rating IP66, NEMA 4X, Power Source Wire, Current Drawn 0.10A AC, Height 5 3/4 in, Voltage 120V AC
