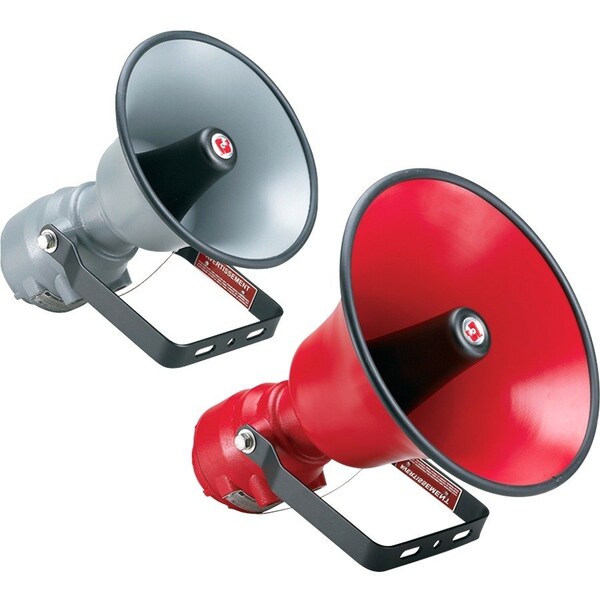

Federal Signal PA Weatherproof Speaker, Al, 1 Channel AM302X - main

PA Weatherproof Speaker, Al, 1 Channel

  • Mfr # AM302X

  • Zoro # G4878793

product price: $2,287.99
/ea
Free Shipping & Returns

Key Features

Type
Explosion-Proof
Color
Gray
Band Type
CB
Number of Channels
1
Primary Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AM302X
Zoro #
G4878793
UPC #
782979600701
Country of Origin
United States

Dimensions

Width (In.)
16 45/64 in
Depth (In.)
19 1/2 in
Height (In.)
18 51/64 in
Width
13.1"
Overall Width
16 3/4 in
Overall Height
18 3/4 in
Overall Depth
19 1/2 in

Details

Item
PA Weatherproof Speaker
Type
Explosion-Proof
Color
Gray
Band Type
CB
Number of Channels
1
Primary Color
Gray
For Use With
Public Address Systems
Standards
CSFM, cUL Listed, UL Fire, UL Listed
Power Taps @ 75V
9 W, 15 W, 30 W
Power Taps @ 25V
9 W, 15 W, 30 W
Output Watts
30 W
Material
Aluminum
Weight
15.70 lb
Explosion-Proof Standards
UL 1203 Explosion-Proof
Compatible Input Voltage
25V, 70V
Transformer Taps @ 25V
8 W, 15 W, 30 W
Driver Configuration
1-Way
NEMA Rating
NEMA 4X
Includes Transformer
Transformer Included
IP Rating
IP66
For Hazardous Location
Class I, Division 2, Class II, Division 2
Housing Material
Aluminum
Dispersion - Conical
60 Degrees
Enclosure Style
Horn
Power Style
Powered
Sensitivity
122 dBA
For Location
Indoor, Outdoor
Transformer Taps @ 70V
8 W, 15 W, 30 W
Mounting Style
Surface Mount
Input Band
CB
Housing Color
Gray
Output Wattage - RMS
30 W
Frequency Response - Minimum
400 Hz
Frequency Response - Maximum
4,000 Hz
Watts
30 watt

Description

PA Weatherproof Speaker, Explosion-Proof, 9 W, 15 W, 30 W Power Taps @ 25V, 9 W, 15 W, 30 W Power Taps @ 75V, For Use With Public Address Systems, Includes Not Applicable
