  11. PA Weatherproof Speaker, Al, 5 Channels

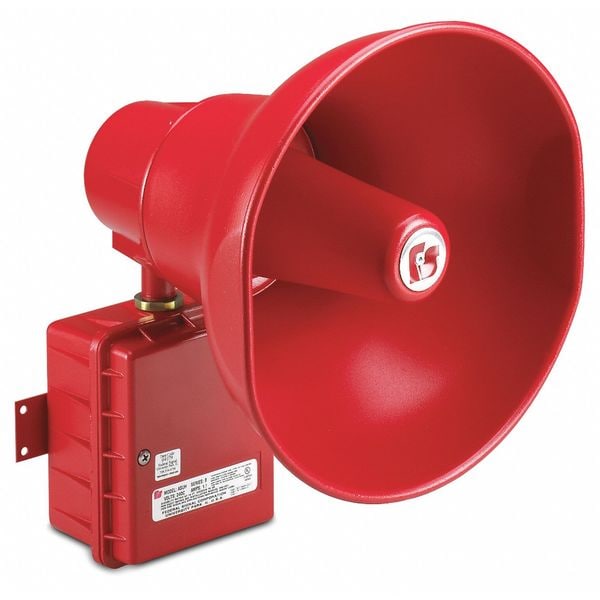

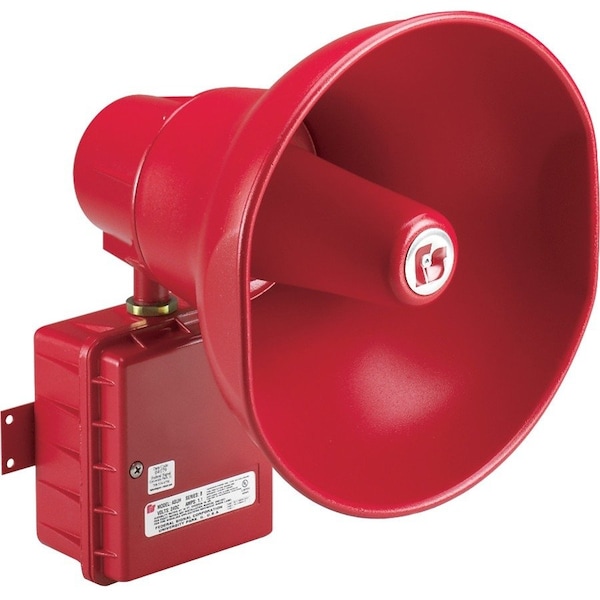

Federal Signal PA Weatherproof Speaker, Al, 5 Channels ASHH-024 - main

PA Weatherproof Speaker, Al, 5 Channels

  • Mfr # ASHH-024

  • Zoro # G4810957

product price: $1,658.99
/ea
Free Shipping & Returns

Key Features

Type
Hazardous Location Amplified Speaker
Color
Red
Band Type
CB
Number of Channels
5
For Use With
Public Address Systems
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ASHH-024
Zoro #
G4810957
UPC #
782979213864
Country of Origin
United States

Dimensions

Depth (In.)
8 1/2 in
Height (In.)
12 13/32 in
Width (In.)
7 29/32 in
Height
12.4"
Width
7.9"
Overall Width
7 7/8 in
Overall Length
12 3/8 in
Overall Depth
8 1/2 in

Details

Item
PA Speaker
Type
Hazardous Location Amplified Speaker
Color
Red
Band Type
CB
Number of Channels
5
For Use With
Public Address Systems
Material
Die-Cast Aluminum
Standards
CSFM Compliant, cUL Listed, UL Fire Listed, UL Listed
Power Requirement
24V DC
Features
Built-In Gain Control, Digital Signal Amplification, Fused Input and Output
Weight
4.50 lb
Voltage
24V DC
Operating Current
0.700 A
Alarm Volume @ 10 ft - Maximum
114 dBA
Sound Style
Tone
Alarm Volume @ 1 m - Maximum
124 dBA
Wattage
15 W
Mounting Style
Surface Mount
IP Rating
IP66, IP69K
Number of Sound Patterns
32
Power Source
Wire
For Hazardous Location
Class I, Division 2, Class II, Division 2
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
NEMA Rating
NEMA 4X
Connection Type
Plug-In Connector
Operating Voltage
24V DC
Primary Color
Red
Corded/Wireless
Wired

Description

Features Built-In Gain Control, Digital Signal Amplification, Fused Input and Output, Standards CSFM Compliant, cUL Listed, UL Fire Listed, UL Listed, Color Red, PA Speaker
