Shop FEDERAL SIGNAL

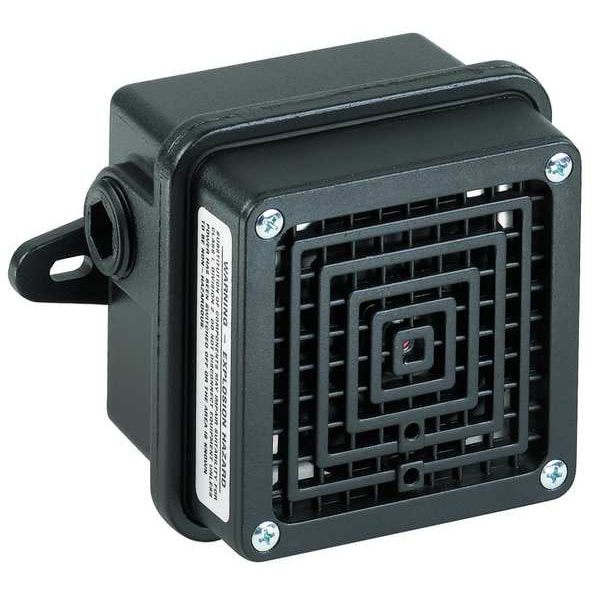

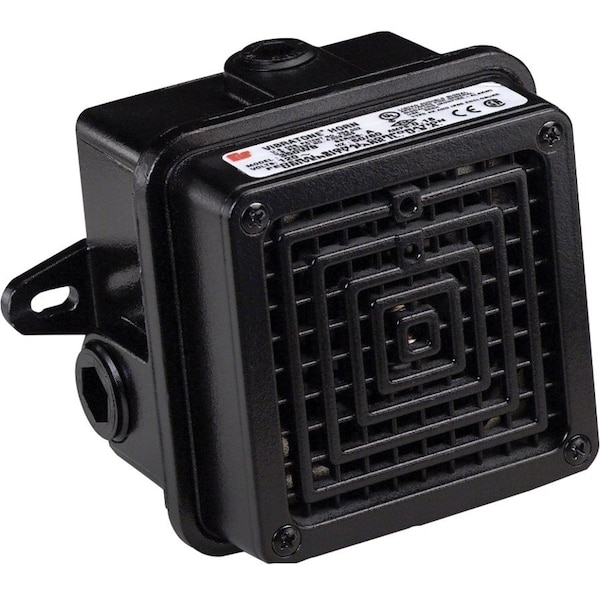

Signaling Device, Bell, Continuous, 120V AC, 100dB at 10 ft, Zinc w/Polyurethane Finish, Black

  • Mfr # 350WBX-120

  • Zoro # G1337621

product price:
$
534.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Zinc w/Polyurethane Finish
Mounting
Flush or Semi-Flush Walls, Panels, Surface
Amps
0.18 AC
Color
Black
Audible Alarm Type
Bell
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
350WBX-120
Zoro #
G1337621
UPC #
782979202455
Country of Origin
United States

Dimensions

Width
4.5313 in
Height
4.5 in
Depth
3.625 in
Overall Width
4 1/2 in
Overall Depth
3 21/32 in
Overall Length
4 1/2 in
Wire Rope Length
4 1/2 in
Length
4 1/2 in

Details

Item
Signaling Device
Housing Material
Zinc w/Polyurethane Finish
Mounting
Flush or Semi-Flush Walls, Panels, Surface
Amps
0.18 AC
Color
Black
Audible Alarm Type
Bell
Voltage
120V AC
Standards
CSA Certified, cUL Listed, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
100dB @ 10 ft
Sound Pattern
Continuous
Operating Temp.
-67 Degrees to 150 Degrees F
Hazardous Division
2
Vibrating
Yes
Visual Indicator Type
No Visual Indicator
Hazardous Class
I
Includes
Diaphragm
Power Source
AC Supply
Alarm Type
Audible
Features
Vibratone Horns are Excellent for General Alarm
Input Voltage
120 V AC
Rating
NEMA 4X
Product Type
Horn
Material
Die-Cast Zinc
Connection Type
Terminal Block
Sound Continuity
Continuous
Operating Temperature - Maximum
104 Degrees F
Alarm Volume @ 10 ft - Maximum
100 dBA
Sound Principle
Vibrating
Mounting Style
Flush Mount, Surface Mount
For Location
Indoor, Outdoor
IP Rating
IP65, IP69K
Alarm Volume @ 1 m - Maximum
110 dBA
Sound Style
Horn
Operating Temperature - Minimum
-65 Degrees F
For Hazardous Location
Class I, Division 2, Class II, Division 2
NEMA Rating
NEMA 4X
Operating Current
0.180 A
Vibration
Vibrating
Operating Voltage
120V AC

Description

FEDERAL SIGNAL 350WBX-120 is an audible signaling device with a bell alarm and continuous sound output. It operates on 120V AC and has a sound output rating of 100 dBA at 10 ft. The unit is rated for indoor and outdoor use, with a die-cast zinc housing and black polyurethane finish for audible signaling applications requiring a die-cast zinc housing and black polyurethane finish.

Key Features:

  • Audible bell signaling device with no visual indicator
  • Sound output rating of 100 dBA at 10 ft and 110 dBA maximum at 1 m
  • Continuous sound pattern
  • Vibrating sound principle
  • 120V AC voltage
  • 0.18 AC operating current
  • Terminal block connection
  • Flush-mount or surface-mount installation for walls, panels, and other surface applications
  • Die-cast zinc housing with black polyurethane finish
  • IP65, IP69K, and NEMA 4X ratings
  • Class I, Division 2 and Class II, Division 2 hazardous location ratings
  • Operating temperature range of -67 to 150 degrees F
  • CSA Certified, cUL Listed, and UL Listed
  • Includes diaphragm
  • Overall dimensions: 4 1/2 in. L x 4 1/2 in. W x 3 21/32 in. D
