Shop FEDERAL SIGNAL

Speaker, Siren, Continuous, 120/230V AC, 24V DC, 96 dB, Glass Reinforced Polyester, Black

  • Mfr # G-SND-MV-D
  • Zoro # G5577321
product price:
$
791.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Glass Reinforced Polyester
Mounting
Surface
Amps
0.14/0.08/0.46
Color
Black
Audible Alarm Type
Siren
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G-SND-MV-D
Zoro #
G5577321
UPC #
782979233961
Country of Origin
United States

Dimensions

Depth
5.2344 in
Height
8.2344 in
Width
5.2344 in
Overall Height
8 1/4 in
Overall Width
5 1/4 in
Overall Depth
5 1/4 in

Details

Item
Speaker
Housing Material
Glass Reinforced Polyester
Mounting
Surface
Amps
0.14/0.08/0.46
Color
Black
Audible Alarm Type
Siren
Voltage
120V AC, 230V AC, 24V DC
Standards
ATEX, ATEx: Baseefa15ATEX0155X, cUL Listed, Ex db IIC T4 Gb or Ex db e IIC T4 Gb, Ex de IIB T5 Gb or Ex db e IIB T5 Gb, Ex tb IIIC T100 Degrees C Db IP66, Ex tb IIIC T135 Degrees C Db IP66, IECEx, IECEx: IECEx BAS 15.0104X, UKEX Certified, UL Fire, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
96 dB
Sound Pattern
Continuous
Hazardous Division
2
Operating Temp.
-58 Degrees to 158 Degrees F
Watts
15 W
Vibrating
No
Visual Indicator Type
No Visual Indicator
Hazardous Class
I
Housing Color
Black
Alarm Type
Audible
Input Voltage
240 V AC
Rating
IP 66
NEMA Rating
NEMA 4X
Power Style
Powered
For Location
Indoor, Outdoor
Mounting Style
Surface Mount
Explosion-Proof Standards
Ex d
For Hazardous Location
Class I, Division 2, Class II, Division 2
Frequency Response - Maximum
700 Hz
Power Voltage
120VAC, 230VAC, 24 V DC
Driver Configuration
1-Way
Output Wattage - RMS
15 W
IP Rating
IP66
Sensitivity
110 dBA

Description

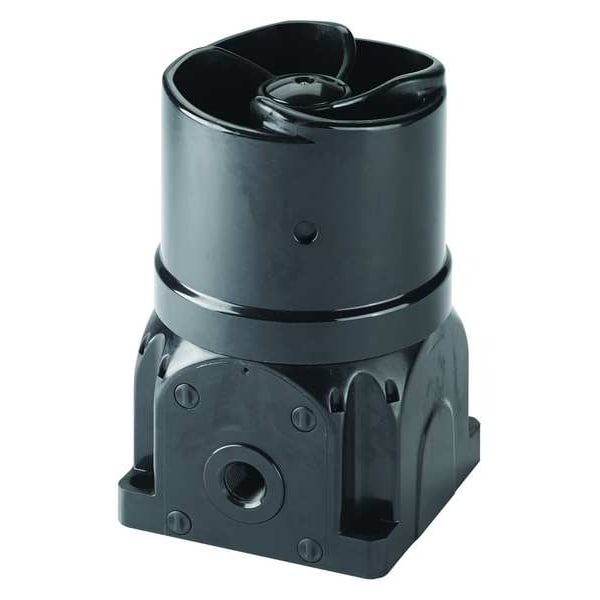

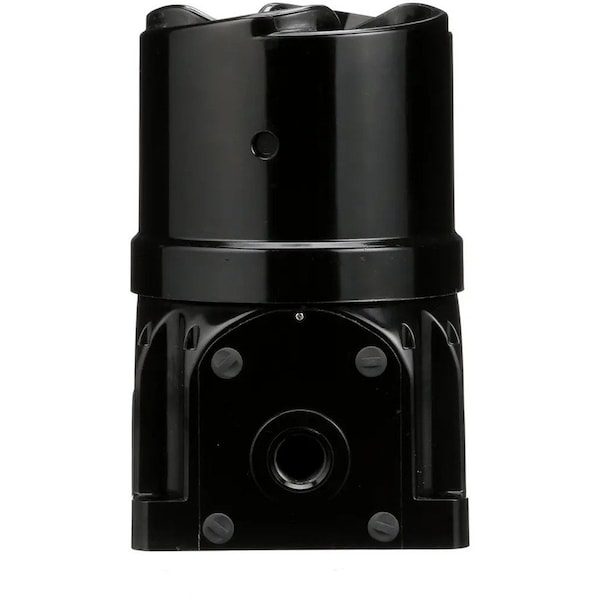

FEDERAL SIGNAL G-SND-MV-D is a powered audible signaling speaker with a continuous siren output. It operates on 120/230V AC or 24V DC and produces a 96 dB alarm for audible warning applications in locations rated indoor and outdoor. The black glass-reinforced polyester housing is surface mounted and rated for Class I, Division 2 and Class II, Division 2 hazardous locations.

Key Features:

  • Alarm Type: Audible with siren sound pattern; no visual indicator
  • Voltage: 120/230V AC, 24V DC
  • Current Draw: 0.14/0.08/0.46 A
  • Sound Output: 96 dB
  • Power Rating: 15 W RMS
  • Housing Material: Glass-reinforced polyester
  • Color: Black
  • Mounting: Surface mount
  • Location Rating: Indoor, Outdoor
  • Hazardous Location Rating: Class I, Division 2; Class II, Division 2
  • Ingress/Enclosure Ratings: IP66, NEMA 4X
  • Operating Temperature: -58 to 158 degrees F
  • Overall Size: 8 1/4 in H x 5 1/4 in W x 5 1/4 in D
  • Standards: Multiple certifications and listings
