  6. Strobe Light, Clear, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 3/4 in NPT Pipe

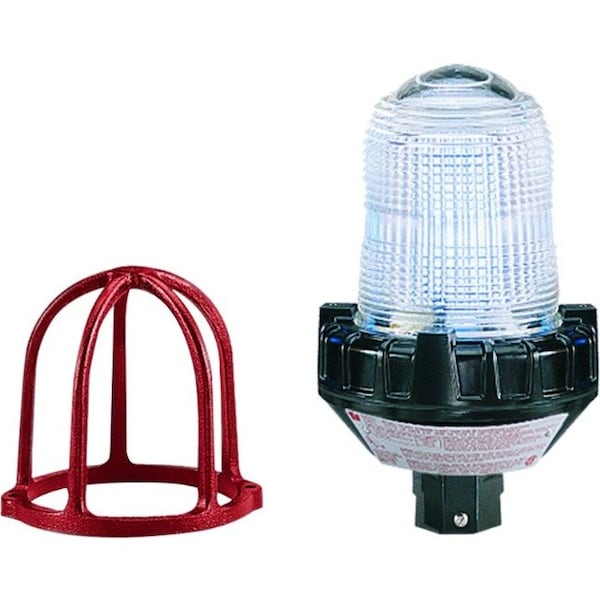

Federal Signal Strobe Light, Clear, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 3/4 in NPT Pipe 154XSTHI - main

Strobe Light, Clear, Strobe Tube, 24V DC, 80 FPM, 5 1/2 in Dia., 3/4 in NPT Pipe

  • Mfr # 154XSTHI

  • Zoro # G4810141

product price:  $1,054.99
/ea
Free Shipping & Returns

Key Features

Color
Clear
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Glass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
154XSTHI
Zoro #
G4810141
UPC #
782979240778
Country of Origin
United States

Dimensions

Height
9 1/4 in
Overall Diameter
5 1/2 in
Width
5 1/2 in
Diameter
5 1/2 in
Depth
5 1/2 in
Footprint Diameter
5 1/2 in
Overall Depth
9 1/4 in

Details

Item
Strobe Light
Color
Clear
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Glass
Flashes per Minute
80
Housing Material
Aluminum
Standards
cULus Listed, Marine Rated, UL Listed
Features
Conformal Coated PCBA
Voltage
24V DC
Lens Design
Fresnel
Rating
IP66, Marine, NEMA 4X
Mounting
3/4 in NPT Pipe
Operating Temp.
-67 Degrees to 150 Degrees F
Green Environmental Attribute
Does Not Contain Methylene Chloride
Current Drawn
0.483A to 0.226A DC
Includes
Dome Guard
Light Output
25 Candela
For Use With
Plant Evacuation, Forklift, Security, Fire Alarm, Suppression Supervised Control Panel, Marine
Product Type
Warning Light
Audible Alarm Type
Visual
NEMA Rating
NEMA 4X
Includes Mounting Hardware
No Mounting Hardware
Brightness Selection
Fixed Brightness
IP Rating
IP66, IP69K
Light Intensity
25 cd
For Hazardous Location
Class I, Division 2, Class II, Division 1
Operating Temperature - Minimum
-67 Degrees F
Lens Color
Clear
Mounting Style
Surface Mount
Requires Base
Base Not Required
Housing Color
Black
Operating Current
0.226 to 0.483 A @ 24V DC
Lens Shape
Dome
Lifespan
10,000 hr
Operating Temperature - Maximum
150 Degrees F
Control Protocol
Direct Wire
Light Operating Mode
Strobe
Footprint Shape
Circle
Operating Voltage
24V DC

Description

Strobe Light, Color Clear, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 25 Candela, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Glass, Housing Material Aluminum, Mounting 3/4 in NPT Pipe, Operating Temp. -67 Degrees to 150 Degrees F, Rating IP66, Marine, NEMA 4X, Power Source Wire, Current Drawn 0.483A to 0.226A DC, Width 5 1/2 in, Depth 5 1/2 in, Height 9 1/4 in, Voltage 24V DC
