  6. Strobe Light, Red, Xenon, 220 to 240V AC, 60 FPM, Not Applicable Dia., U-Bracket

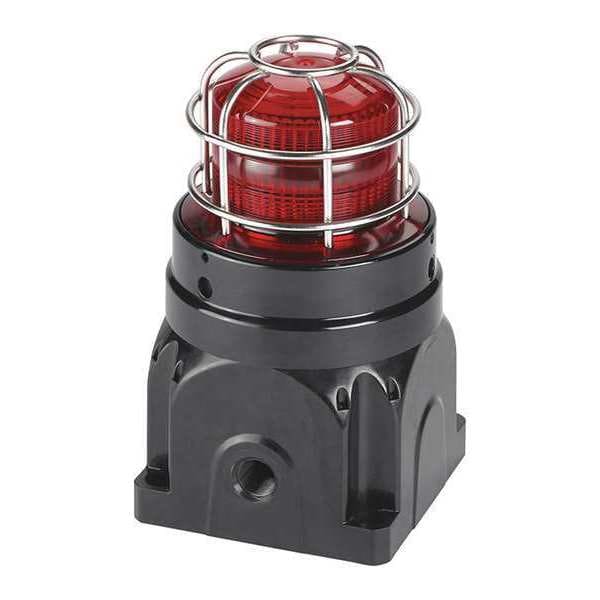

Federal Signal Strobe Light, Red, Xenon, 220 to 240V AC, 60 FPM, Not Applicable Dia., U-Bracket G-STR-230-T-R - main

Strobe Light, Red, Xenon, 220 to 240V AC, 60 FPM, Not Applicable Dia., U-Bracket

  • Mfr # G-STR-230-T-R

  • Zoro # G5577656

product price:  $779.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Xenon
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
Flashes per Minute
60
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
G-STR-230-T-R
Zoro #
G5577656
UPC #
782979234692
Country of Origin
United States

Dimensions

Height
8 61/64 in
Depth
7 29/64 in
Width
7 29/64 in
Overall Length
8 15/32 in
Footprint Length
2 3/8 in
Overall Width
7 1/2 in
Overall Depth
8 15/16 in
Footprint Width
1 1/4 in

Details

Item
Strobe Light
Color
Red
Lamp Type
Xenon
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
Flashes per Minute
60
Housing Material
Glass Reinforced Polyester
Standards
ABS, ATEX Ex d IIC Ex de IIC and Ex tb IIIC, CE, CSFM Approved, cUL Listed, EAC, IECEx, INMETRO, UKEX Certified, UL Listed
Features
Corrosion Resistant, M20 Entries Standard
Voltage
220 to 240V AC
Light Output
21 Joules
Operating Temp.
-58 Degrees to 158 Degrees F
Mounting
U-Bracket
Current Drawn
0.34A AC
Lens Design
Fresnel
Includes
Dome Guard
Rating
IP66
Product Type
Strobe Light
NEMA Rating
NEMA 4X
Connection Type
TermiN/Al Block
Includes Mounting Hardware
Mounting Hardware Included
Operating Temperature - Maximum
158 Degrees F
Brightness Selection
Fixed Brightness
Lifespan
10,000 hr
Lens Color
Red
Light Operating Mode
Strobe
Mounting Style
Flush Mount
Control Protocol
User Operated
Requires Base
Base Not Required
Operating Temperature - Minimum
-67 Degrees F
Housing Color
Black
Light Intensity
500 cd
Lens Shape
Dome
IP Rating
IP66, IP67, IP69K
For Hazardous Location
Class I, Division 2, Class II, Division 2
Mounting Mechanism
Bracket
Light Source
Xenon
Operating Current
0.190 A @ 220 to 240V AC
Footprint Shape
Rectangle
Operating Voltage
220 to 240V AC

Description

Strobe Light, Color Red, Lamp Type Xenon, Flashes per Minute 60, Light Output 21 Joules, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Glass Reinforced Polyester, Mounting U-Bracket, Operating Temp. -58 Degrees to 158 Degrees F, Rating IP66, Power Source Wire, Current Drawn 0.34A AC, Width 7 29/64 in, Depth 7 29/64 in, Height 8 61/64 in
