  6. Warning Light, Amber, LED, 24V AC/DC, 60 FPM, 8 13/16 in Dia., Ceiling, Pendant, Wall

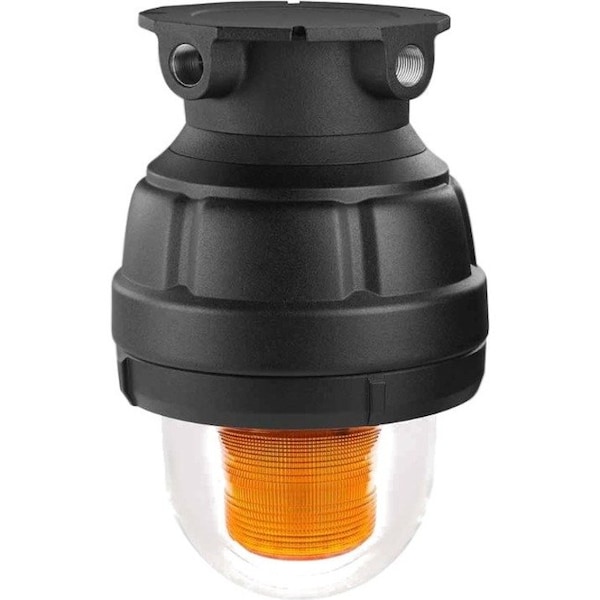

Federal Signal Warning Light, Amber, LED, 24V AC/DC, 60 FPM, 8 13/16 in Dia., Ceiling, Pendant, Wall 27XL-024A-MOD - main

Warning Light, Amber, LED, 24V AC/DC, 60 FPM, 8 13/16 in Dia., Ceiling, Pendant, Wall

  • Mfr # 27XL-024A-MOD

  • Zoro # G2949199

product price:  $1,948.99
/ea
Free Shipping & Returns

Key Features

Color
Amber
Lamp Type
LED
Power Source
Wire
Lamp Life
60,000 hr
Lens Material
Polycarbonate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
27XL-024A-MOD
Zoro #
G2949199
UPC #
782979232629
Country of Origin
United States

Dimensions

Height
14 9/16 in
Overall Diameter
8 13/16 in
Width
8 13/16 in
Diameter
8 13/16 in
Footprint Diameter
8 13/16 in
Overall Depth
11 3/8 in

Details

Item
Warning Light
Color
Amber
Lamp Type
LED
Power Source
Wire
Lamp Life
60,000 hr
Lens Material
Polycarbonate
Flashes per Minute
60
Housing Material
Aluminum
Standards
cUL Listed, cULus Listed, UL Listed
Features
Corrosion Resistant, Standard Low In-Rush Circuitry Design
Voltage
24V AC/DC
Mounting
Ceiling, Pendant, Wall
Rating
NEMA 4X
Lens Design
Fresnel
Current Drawn
400mA DC
Operating Temp.
-67 Degrees to 150 Degrees F
NEMA Rating
NEMA 4X
For Use With
Security, Chemical Plant, Mine, Refinery, Oil Rig
Audible Alarm Type
Visual
Product Type
Warning Light
Lens Color
Amber
Mounting Style
Flush Mount, Surface Mount
For Hazardous Location
Class I, Division 1, Class I, Division 2, Class II, Division 1
Lens Shape
Dome
IP Rating
IP66, IP69K
Control Protocol
Direct Wire
Light Operating Mode
Flashing, Steady
Operating Current
0.400 A @ 24V AC/DC
Lifespan
50,000 hr
Requires Base
Base Required
Operating Temperature - Minimum
-67 Degrees F
Footprint Shape
Circle
Operating Temperature - Maximum
150 Degrees F
Light Intensity
238 cd
Housing Color
Black
Brightness Selection
Fixed Brightness
Includes Mounting Hardware
No Mounting Hardware
Light Source
LED
Operating Voltage
24V AC/DC

Description

Warning Light, Color Amber, Lamp Type LED, Flashes per Minute 60, Lamp Life 60,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Aluminum, Mounting Ceiling, Pendant, Wall, Operating Temp. -67 Degrees to 150 Degrees F, Rating NEMA 4X, Power Source Wire, Current Drawn 400mA DC, Width 8 13/16 in, Height 14 9/16 in
