  11. Warning Light, Amber, LED, 24V DC, 60, 75, 90 FPM, Not Applicable Dia., Surface

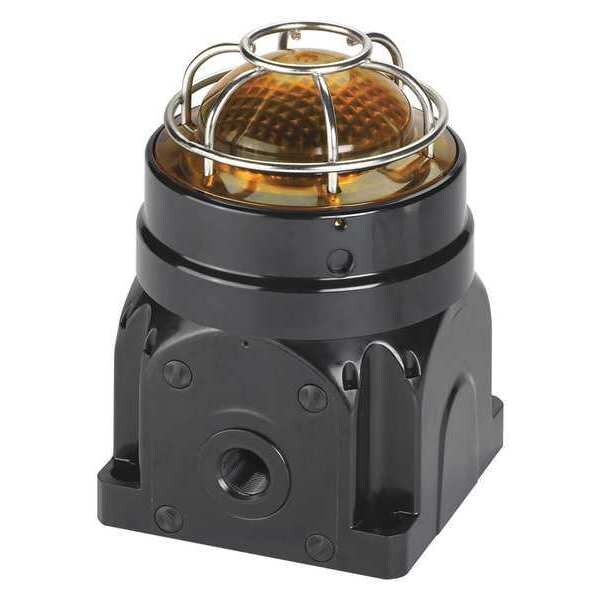

Federal Signal Warning Light, Amber, LED, 24V DC, 60, 75, 90 FPM, Not Applicable Dia., Surface G-LED-DC-D-A - main

Warning Light, Amber, LED, 24V DC, 60, 75, 90 FPM, Not Applicable Dia., Surface

  • Mfr # G-LED-DC-D-A

  • Zoro # G5577507

product price: $915.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
LED
Power Source
Wire
Lamp Life
50,000 hr
Lens Material
Polycarbonate
Flashes per Minute
60, 75, 90
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G-LED-DC-D-A
Zoro #
G5577507
UPC #
782979233756
Country of Origin
United States

Dimensions

Height
7 1/2 in
Width
5 15/64 in
Depth
5 15/64 in
Overall Length
5 7/32 in
Overall Width
5 7/32 in
Overall Depth
7 1/2 in
Footprint Width
5 1/4 in
Footprint Length
5 1/4 in

Details

Item
Warning Light
Color
Amber
Lamp Type
LED
Power Source
Wire
Lamp Life
50,000 hr
Lens Material
Polycarbonate
Flashes per Minute
60, 75, 90
Housing Material
Glass Reinforced Polyester
Standards
ABS, ATEX, CE, CSFM Approved, cUL Listed, cULus Listed, GOST, IECEx, INMETRO, UKCA, UL Listed
Features
Supervisory Diode
Voltage
24V DC
Operating Temp.
-58 Degrees to 158 Degrees F
Rating
IP66
Mounting
Surface
Lens Design
Fresnel
Includes
Dome Guard
Current Drawn
0.30A DC
Light Output
400 Lumens
For Use With
Security, Control Panel, Signaling System, Marine, Industrial
Product Type
Warning Light
Connection Type
TermiN/Al Block
Audible Alarm Type
Visual
NEMA Rating
NEMA 4X
Lifespan
50,000 hr
Operating Current
0.300 A @ 24V DC
Control Protocol
User Operated
IP Rating
IP66, IP69K
Requires Base
Base Not Required
Operating Temperature - Maximum
158 Degrees F
Brightness Selection
Fixed Brightness
Mounting Mechanism
Screw
Light Operating Mode
Flashing, Rotating, Strobe
Housing Color
Black
Operating Temperature - Minimum
-67 Degrees F
Light Source
LED
Lens Shape
Dome
Includes Mounting Hardware
Mounting Hardware Included
For Hazardous Location
Class I, Division 2, Class II, Division 2
Light Intensity
175 cd
Lens Color
Amber
Mounting Style
Surface Mount
Footprint Shape
Square
Operating Voltage
24V DC

Description

Warning Light, Color Amber, Lamp Type LED, Flashes per Minute 60, 75, 90, Light Output 400 Lumens, Lamp Life 50,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Glass Reinforced Polyester, Mounting Surface, Operating Temp. -58 Degrees to 158 Degrees F, Rating IP66, Power Source Wire, Current Drawn 0.30A DC, Width 5 15/64 in, Depth 5 15/64 in, Height 7 1/2 in
