  6. Warning Light, Amber, Steady Burn LED, 24V DC, Not Applicable FPM, 3 1/8 in Dia., (F) 1/2 in NPT

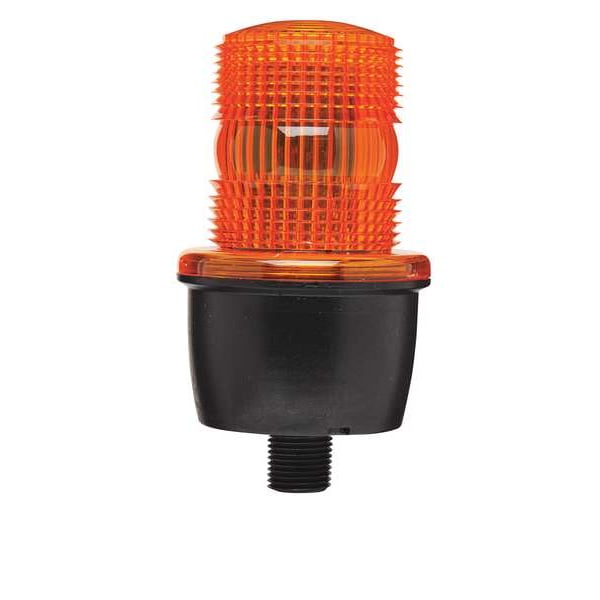

Federal Signal Warning Light, Amber, Steady Burn LED, 24V DC, Not Applicable FPM, 3 1/8 in Dia., (F) 1/2 in NPT LP3PL-024A - main

Warning Light, Amber, Steady Burn LED, 24V DC, Not Applicable FPM, 3 1/8 in Dia., (F) 1/2 in NPT

  • Mfr # LP3PL-024A

  • Zoro # G0686077

product price:  $190.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Steady Burn LED
Power Source
Wire
Lamp Life
100,000 hr
Lens Material
Polycarbonate
Height
5 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LP3PL-024A
Zoro #
G0686077
UPC #
782979224761
Country of Origin
United States

Dimensions

Height
5 3/4 in
Overall Diameter
3 1/8 in
Depth
5 5/8 in
Diameter
3 1/8 in
Overall Depth
5 11/16 in
Footprint Diameter
3 1/8 in

Details

Item
Warning Light
Color
Amber
Lamp Type
Steady Burn LED
Power Source
Wire
Lamp Life
100,000 hr
Lens Material
Polycarbonate
Housing Material
Polycarbonate
Standards
CE, CSA Certified, cUL Listed, UKCA, UL Listed
Features
PLC Compatible, Screw-On Lens
Voltage
24V DC
Mounting
(F) 1/2 in NPT
Lens Design
Screw-on Dome
Includes
Gasket
Light Output
3.2 Joules
Operating Temp.
-31 Degrees to 150 Degrees F
Rating
NEMA 4X
Current Drawn
0.08A DC
Product Type
Warning Light
NEMA Rating
NEMA 4X
Operating Temperature - Maximum
150 Degrees F
Vibration
No Vibration
Footprint Shape
Circle
Lens Shape
Dome
Includes Mounting Hardware
Mounting Hardware Included
Operating Current
0.150 A @ 24V DC
Housing Color
Black
Light Source
LED
Brightness Selection
Fixed Brightness
Operating Temperature - Minimum
-31 Degrees F
Mounting Style
Surface Mount
IP Rating
IP55, IP66, IP69K
Control Protocol
Direct Wire
For Location
Indoor, Outdoor
Lens Color
Amber
Light Operating Mode
Steady
Lifespan
50,000 hr
Requires Base
Base Not Required
Operating Voltage
24V DC

Description

Warning Light, Color Amber, Lamp Type Steady Burn LED, Flashes per Minute Not Applicable, Light Output 3.2 Joules, Lamp Life 100,000 hr, Lens Design Screw-on Dome, Lens Material Polycarbonate, Housing Material Polycarbonate, Mounting (F) 1/2 in NPT, Operating Temp. -31 Degrees to 150 Degrees F, Rating NEMA 4X, Power Source Wire, Current Drawn 0.08A DC, Depth 5 5/8 in, Height 5 3/4 in, Voltage 24V DC
