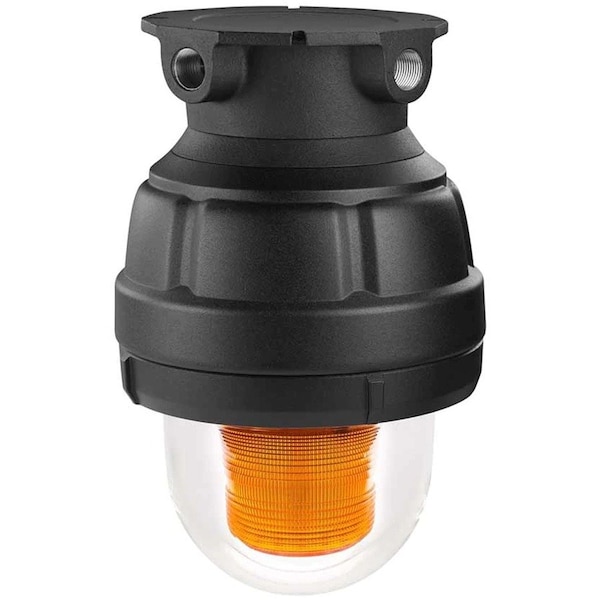

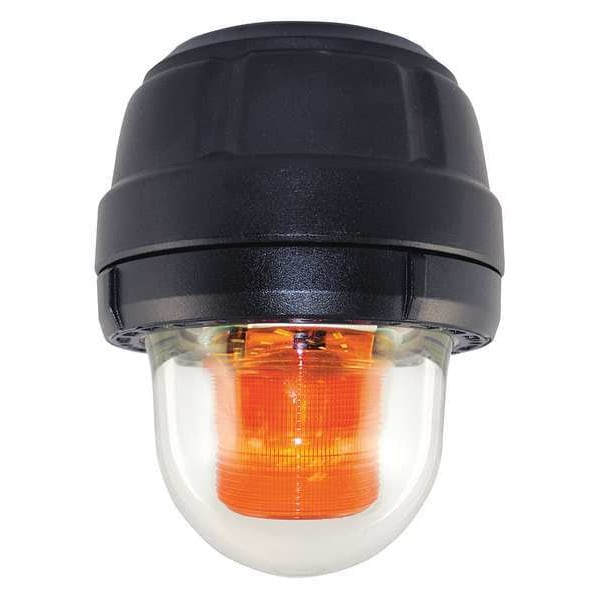

Federal Signal Warning Light, Amber, Strobe Tube, 120V AC, 80 FPM, 8 13/16 in Dia., Ceiling, Pendant, Wall 27XST-120A-MOD - main

Warning Light, Amber, Strobe Tube, 120V AC, 80 FPM, 8 13/16 in Dia., Ceiling, Pendant, Wall

  • Mfr # 27XST-120A-MOD

  • Zoro # G2949235

product price:  $2,006.99
/ea
Free Shipping & Returns

Key Features

Color
Amber
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
27XST-120A-MOD
Zoro #
G2949235
UPC #
782979232568
Country of Origin
United States

Dimensions

Height
14 9/16 in
Overall Diameter
8 13/16 in
Diameter
8 13/16 in
Width
8 13/16 in
Footprint Diameter
8 13/16 in
Overall Depth
11 3/8 in

Details

Item
Warning Light
Color
Amber
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
10,000 hr
Lens Material
Polycarbonate
Flashes per Minute
80
Housing Material
Cast Aluminum
Standards
CSFM Approved, cUL Listed, cULus Listed, Marine Rated, UL Listed
Features
Conformal Coated PCBA
Voltage
120V AC
Current Drawn
1.14A AC
Operating Temp.
-67 Degrees to 150 Degrees F
Mounting
Ceiling, Pendant, Wall
Lens Design
Fresnel
Rating
NEMA 4X
Light Output
850 Candela
Includes
27XST Explosion-Proof Strobe Light Dome Up
For Use With
Oil Rig, Mine, Chemical Plant, Refinery
NEMA Rating
NEMA 4X
Audible Alarm Type
Visual
Product Type
Strobe Light
Lens Color
Amber
Light Intensity
850 cd
Operating Current
1.140 A @ 120V AC
Lens Shape
Dome
IP Rating
IP66, IP69K
Operating Temperature - Maximum
150 Degrees F
Footprint Shape
Circle
Light Operating Mode
Strobe
For Hazardous Location
Class I, Division 1, Class I, Division 2, Class II, Division 1
Housing Color
Black
Operating Temperature - Minimum
-67 Degrees F
Brightness Selection
Fixed Brightness
Requires Base
Base Required
Lifespan
10,000 hr
Control Protocol
Direct Wire
Includes Mounting Hardware
No Mounting Hardware
Operating Voltage
120V AC

Description

Warning Light, Color Amber, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 850 Candela, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Cast Aluminum, Mounting Ceiling, Pendant, Wall, Operating Temp. -67 Degrees to 150 Degrees F, Rating NEMA 4X, Power Source Wire, Current Drawn 1.14A AC, Width 8 13/16 in, Height 14 9/16 in
