  6. Warning Light, Green, Steady Burn LED, 24V DC, Not Applicable FPM, 3 1/8 in Dia., T-Mount

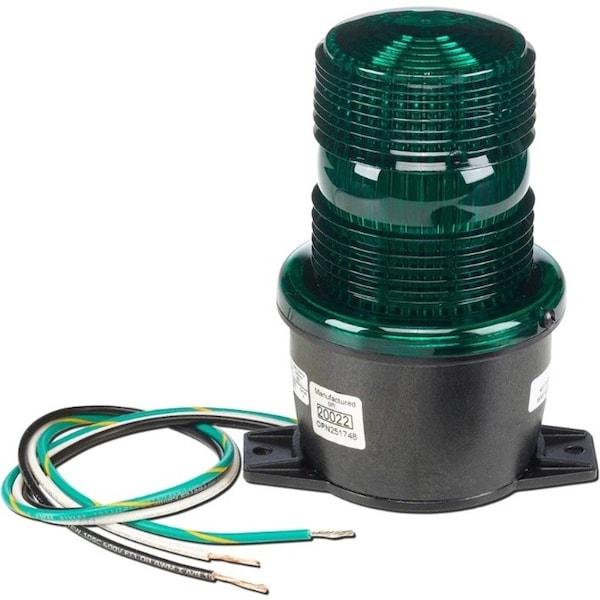

Federal Signal Warning Light, Green, Steady Burn LED, 24V DC, Not Applicable FPM, 3 1/8 in Dia., T-Mount LP3TL-024G - main

Warning Light, Green, Steady Burn LED, 24V DC, Not Applicable FPM, 3 1/8 in Dia., T-Mount

  • Mfr # LP3TL-024G

  • Zoro # G3387081

product price:  $161.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Steady Burn LED
Power Source
Wire
Lamp Life
100,000 hr
Lens Material
Polycarbonate
Height
5 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LP3TL-024G
Zoro #
G3387081
UPC #
782979224990
Country of Origin
United States

Dimensions

Height
5 1/8 in
Overall Diameter
3 1/8 in
Depth
5 1/8 in
Diameter
3 1/8 in
Footprint Diameter
3 1/8 in
Overall Depth
5 3/32 in

Details

Item
Warning Light
Color
Green
Lamp Type
Steady Burn LED
Power Source
Wire
Lamp Life
100,000 hr
Lens Material
Polycarbonate
Housing Material
Polycarbonate
Standards
CE, CSA Certified, cUL Listed, UKCA, UL Listed
Features
PLC Compatible, Screw-On Lens
Voltage
24V DC
Includes
Gasket
Lens Design
Fresnel
Current Drawn
0.08A DC
Operating Temp.
-31 Degrees to 150 Degrees F
Rating
NEMA 4X
Mounting
T-Mount
Light Output
4.1 Joules
For Use With
Outdoor, Indoor
Product Type
Warning Light
Audible Alarm Type
Visual
NEMA Rating
NEMA 4X
Operating Current
0.150 A @ 24V DC
Operating Temperature - Maximum
150 Degrees F
Lens Shape
Dome
Operating Temperature - Minimum
-31 Degrees F
Light Source
LED
IP Rating
IP55, IP66, IP69K
Light Operating Mode
Steady
Lens Color
Green
Control Protocol
Direct Wire
Housing Color
Black
Footprint Shape
Circle
Mounting Style
Flush Mount
Includes Mounting Hardware
Mounting Hardware Included
Requires Base
Base Not Required
Vibration
No Vibration
Lifespan
50,000 hr
For Location
Indoor, Outdoor
Brightness Selection
Fixed Brightness
Operating Voltage
24V DC

Description

Warning Light, Color Green, Lamp Type Steady Burn LED, Flashes per Minute Not Applicable, Light Output 4.1 Joules, Lamp Life 100,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Polycarbonate, Mounting T-Mount, Operating Temp. -31 Degrees to 150 Degrees F, Rating NEMA 4X, Power Source Wire, Current Drawn 0.08A DC, Depth 5 1/8 in, Height 5 1/8 in, Voltage 24V DC
