  11. Warning Light, Magenta, LED, 24V DC, 60, 75, 90 FPM, Not Applicable Dia., U-Bracket

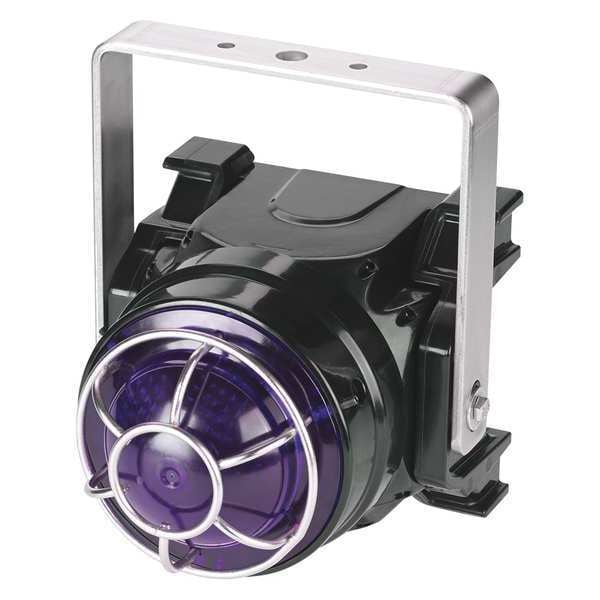

Federal Signal Warning Light, Magenta, LED, 24V DC, 60, 75, 90 FPM, Not Applicable Dia., U-Bracket G-LED-DC-T-M - main

Warning Light, Magenta, LED, 24V DC, 60, 75, 90 FPM, Not Applicable Dia., U-Bracket

  • Mfr # G-LED-DC-T-M

  • Zoro # G5577391

product price: $968.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
LED
Power Source
Wire
Lamp Life
50,000 hr
Lens Material
Polycarbonate
Flashes per Minute
60, 75, 90
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G-LED-DC-T-M
Zoro #
G5577391
UPC #
782979233930
Country of Origin
United States

Dimensions

Height
7 1/2 in
Depth
8 31/64 in
Width
8 31/64 in
Footprint Length
5 1/4 in
Overall Width
5 7/32 in
Overall Length
5 7/32 in
Overall Depth
7 1/2 in
Footprint Width
5 1/4 in

Details

Item
Warning Light
Color
Magenta
Lamp Type
LED
Power Source
Wire
Lamp Life
50,000 hr
Lens Material
Polycarbonate
Flashes per Minute
60, 75, 90
Housing Material
Glass Reinforced Polyester
Standards
ABS, ATEX, CE, CSFM Approved, cUL Listed, cULus Listed, GOST, IECEx, INMETRO, UKCA, UL Listed
Features
Supervisory Diode
Voltage
24V DC
Mounting
U-Bracket
Includes
Dome Guard
Operating Temp.
-58 Degrees to 158 Degrees F
Light Output
400 Lumens
Current Drawn
0.30A DC
Rating
IP66
Lens Design
Fresnel
Product Type
Warning Light
Connection Type
TermiN/Al Block
NEMA Rating
NEMA 4X
Light Operating Mode
Flashing, Rotating, Strobe
Lifespan
50,000 hr
Housing Color
Black
Footprint Shape
Square
Control Protocol
User Operated
Includes Mounting Hardware
Mounting Hardware Included
Lens Color
Magenta
Operating Temperature - Minimum
-67 Degrees F
Mounting Mechanism
Bracket
For Hazardous Location
Class I, Division 2, Class II, Division 2
Mounting Style
Surface Mount
Requires Base
Base Not Required
IP Rating
IP66, IP69K
Light Intensity
175 cd
Lens Shape
Dome
Brightness Selection
Fixed Brightness
Operating Current
0.300 A @ 24V DC
Operating Temperature - Maximum
158 Degrees F
Light Source
LED
Operating Voltage
24V DC

Description

Warning Light, Color Magenta, Lamp Type LED, Flashes per Minute 60, 75, 90, Light Output 400 Lumens, Lamp Life 50,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Glass Reinforced Polyester, Mounting U-Bracket, Operating Temp. -58 Degrees to 158 Degrees F, Rating IP66, Power Source Wire, Current Drawn 0.30A DC, Width 8 31/64 in, Depth 8 31/64 in, Height 7 1/2 in
