  11. Warning Light, Red, LED, 120V AC, 60, 75 FPM, 5 3/4 in Dia., Surface

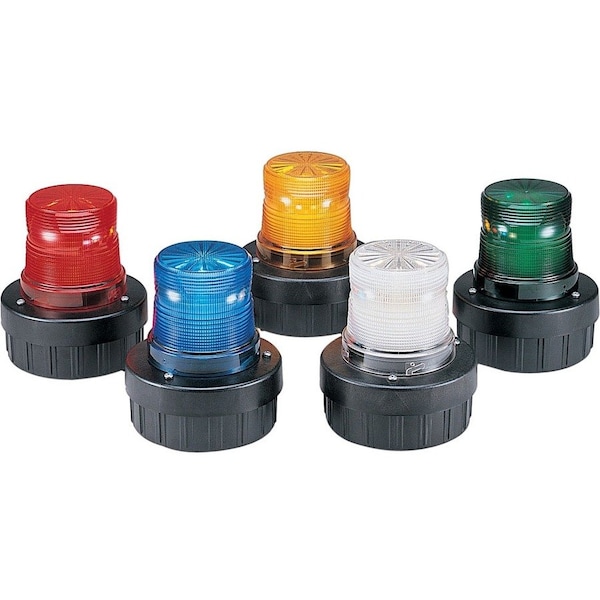

Federal Signal Warning Light, Red, LED, 120V AC, 60, 75 FPM, 5 3/4 in Dia., Surface AV1-LED-120R - main

Warning Light, Red, LED, 120V AC, 60, 75 FPM, 5 3/4 in Dia., Surface

  • Mfr # AV1-LED-120R

  • Zoro # G8529674

product price: $278.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
LED
Power Source
Wire
Lamp Life
60,000 hr
Lens Material
Fresnel Dome
Flashes per Minute
60, 75
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AV1-LED-120R
Zoro #
G8529674
UPC #
782979227601
Country of Origin
United States

Dimensions

Height
6 12/25 in
Overall Diameter
5 3/4 in
Width
5 19/25 in
Diameter
5 19/25 in
Footprint Diameter
5 3/4 in
Overall Depth
6 15/32 in

Details

Item
Warning Light
Color
Red
Lamp Type
LED
Power Source
Wire
Lamp Life
60,000 hr
Lens Material
Fresnel Dome
Flashes per Minute
60, 75
Housing Material
Polycarbonate
Standards
cUL Listed, cULus Listed, UL Listed
Features
Internal Buzzer Produces 85 dBA at 10 ft (95 dBA at 1m), PLC Compatible, Twist-Off Lens
Voltage
120V AC
Includes
Lens Gasket, Surface Mount Gasket
Operating Temp.
-31 Degrees to 150 Degrees F
Current Drawn
.03A AC
Lens Design
Fresnel
Mounting
Surface
For Use With
Signaling System
Product Type
Warning Light
Audible Alarm Type
Visual, Audible
Decibels
85 dB(A)
Connection Type
Wire Leads
NEMA Rating
NEMA 3R
Lens Color
Red
Light Intensity
125 cd
Mounting Mechanism
1/2 in NPT
Light Operating Mode
Flashing
Operating Temperature - Minimum
-31 Degrees F
Requires Base
Base Not Required
Light Source
LED
Lens Shape
Dome
Lifespan
50,000 hr
Brightness Selection
Fixed Brightness
Mounting Style
Surface Mount
Footprint Shape
Circle
Operating Current
0.030 A @ 120V AC
Control Protocol
Direct Wire
Water Resistance
Water Resistant
Includes Mounting Hardware
No Mounting Hardware
Operating Temperature - Maximum
150 Degrees F
Housing Color
Black
Operating Voltage
120V AC

Description

Warning Light, Color Red, Lamp Type LED, Flashes per Minute 60, 75, Lamp Life 60,000 hr, Lens Design Fresnel, Lens Material Fresnel Dome, Housing Material Polycarbonate, Mounting Surface, Operating Temp. -31 Degrees to 150 Degrees F, Power Source Wire, Current Drawn .03A AC, Width 5 19/25 in, Height 6 12/25 in
