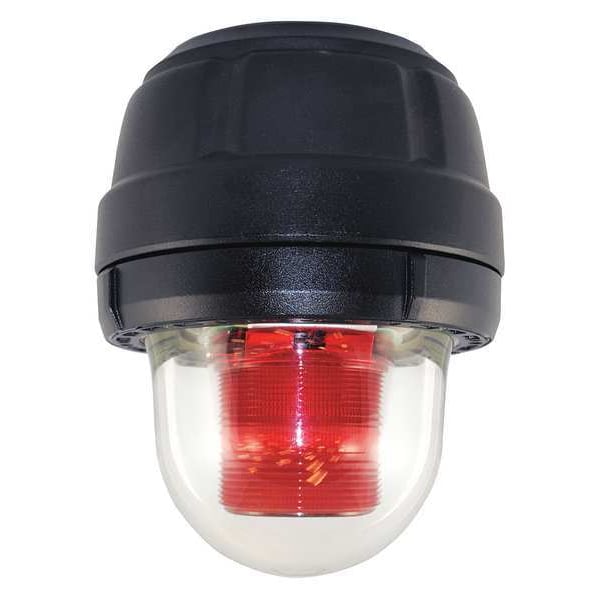

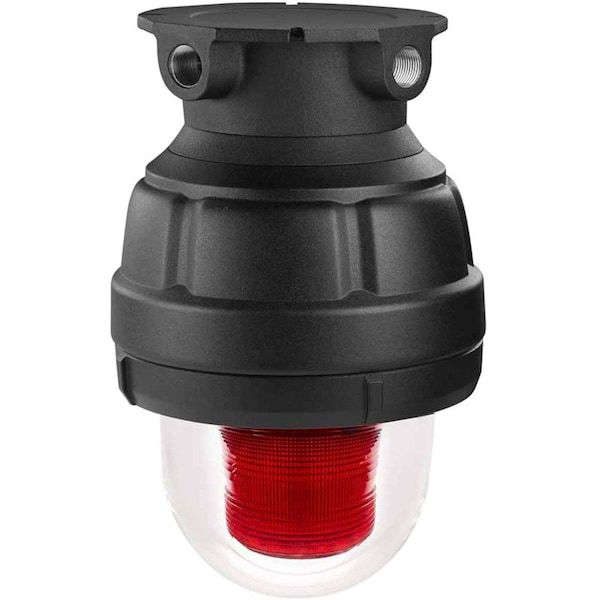

Warning Light, Red, Strobe Tube, 120VAC

  • Mfr # 27XST-120R-MOD

  • Zoro # G9082823


product price: $2,820.99
/ea
Free Shipping & Returns

Key Features

Lamp Life
10,000 hrs
Mounting
Ceiling, Pendant, Wall
Lens Design
Dome
Light Output
850 Candela
Flashes per Minute
80
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
27XST-120R-MOD
Zoro #
G9082823
UPC #
782979232612
Country of Origin
United States

Dimensions

Footprint Diameter
8 13/16 in
Overall Diameter
8 13/16 in
Overall Depth
11-3/8 in
Overall Height
14-9/16 in

Details

Item
Warning Light
Lamp Life
10,000 hrs
Mounting
Ceiling, Pendant, Wall
Lens Design
Dome
Light Output
850 Candela
Flashes per Minute
80
Standards
CSFM Approved, cUL Listed, cULus Listed, Marine Rated, UL Listed
Lens Material
Polycarbonate
Housing Material
Cast Aluminum
Rating
NEMA 4X
Voltage
120V AC
Lens Color
Red
Application
Oil Rigs; Mines; Refineries; Chemical Plants
Housing Color
Black
Features
Conformal Coated PCBA
Material
polycarbonate
NEMA Rating
NEMA 4X
Includes Mounting Hardware
No Mounting Hardware
Light Intensity
850 cd
IP Rating
IP66, IP69K
Brightness Selection
Fixed Brightness
For Hazardous Location
Class I, Division 1, Class I, Division 2, Class II, Division 1
Control Protocol
Direct Wire
Light Operating Mode
Strobe
Footprint Shape
Circle
Requires Base
Base Required
Lighting Technology
Strobe Tube
Light Color
Red
Minimum Operating Temperature
-67 Degrees F
Current
1.140 A @ 120V AC
Maximum Operating Temperature
150 Degrees F

Description

Warning Light, Color Red, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 850 Candela, Lamp Life 10,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Cast Aluminum, Mounting Ceiling, Pendant, Wall, Operating Temp. -67 Degrees to 150 Degrees F, Rating NEMA 4X, Power Source Wire, Current Drawn 1.14A AC, Width 8 13/16 in, Height 14 9/16 in
