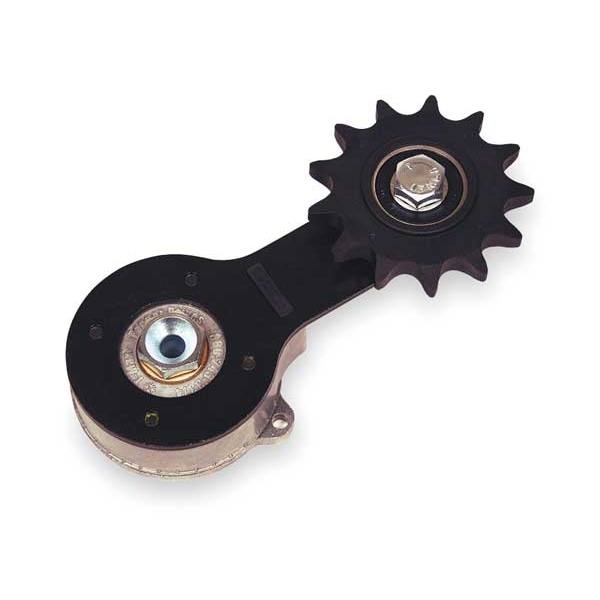

Self-Adjusting Tensioner, 50 ANSI Chain

Mfr # FS0567
Zoro # G1927502

$205.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

ANSI Chain Size 50
Idler Outside Dia. 3.34 in
Dimension C (In.) 0.84 in
Dimension G (In.) 0.4 in
Dimension T (In.) 1.37 in

See all product information

Brand Fenner Drives
MFR # FS0567
Zoro # G1927502
Country of Origin United States
Category Chain Tensioners & Tools

Dimensions

ANSI Chain Size	50
Idler Outside Dia.	3.34 in
Dimension C (In.)	0.84 in
Dimension G (In.)	0.4 in
Dimension T (In.)	1.37 in
Dimension D (In.)	3.34 in
Dimension B (In.)	0.26 in
Dimension E (In.)	7.85 in
Dimension A (In.)	1.87 in
Overall Length	7.85 in
Base Diameter	3.34 in
Sprocket Outside Diameter	3.34 in
Sprocket Pitch Diameter	3.01 in
Mount Hole Diameter	33/64 in
Overall Depth	1.87 in
Arm Length to Hole Center	4.5 in

Details

Item	Self-adjusting tensioner
Function	Self-Adjusting Tensioner Eliminates Need For Regular Manual Retensioing
Insert	Alloy Steel Torsional Wrapped Spring Which May Be Reversed To Allow Bi-directional Use.
Mounting Hole (In.)	2/5 in
Tensioning Arm	Deflects Up To 45 Degrees Either Side Of Its Neutral Position Allowing A Pretension Force That Self-Adjusts An Idler To Everyday Elongation Of Chain Or Belt While Dampening Vibration In The Drive
Temp. Range (F)	32 to 225
Force Range (Lbs.)	0 to 42
Application	Chain Drives
Includes	CS5002 Sprocket, RT3001 Tensioner
Product Type	Rotary Tensioner & Idler Sprocket Assembly
Arm Material	Aluminum
Housing Material	Aluminum
Minimum Tension Force	0 lbf
Features	Automatically Take Up the Slack and Avoid the Risk of Over-Tensioning Drive Components to Enhance Overall Drive Operating Efficiency
Maximum Tension Force	42 lbf
For Chain Number	50
Arm Rotation	70 Degrees

Description

Self-adjusting tensioner, Arm Rotation 70 Degrees , For Chain Number 50, For V-Belt Size Not Applicable, Sprocket Outside Diameter 3.34 in, Maximum Tension Force 42 lbf, Arm Length to Hole Center 4.5 in, Arm Material Aluminum, Base Diameter 3.34 in, Features Automatically Take Up the Slack and Avoid the Risk of Over-Tensioning Drive Components to Enhance Overall Drive Operating Efficiency, Housing Material Aluminum, Includes CS5002 Sprocket, RT3001 Tensioner, Minimum Tension Force 0 lbf
