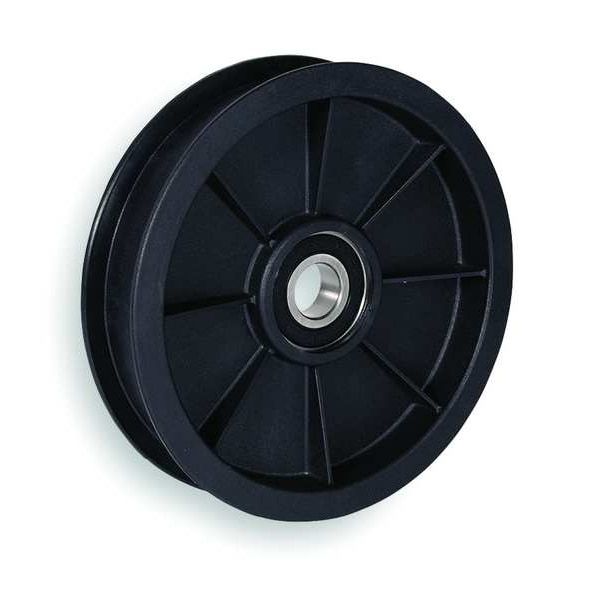

V-Belt Idler Pulley, Ball, 17 mm Dia
Mfr # FA5501
Zoro # G1394592
product price:Â
$
22.99
/ea
Key Features
Belt Type
7/8 in Flat
Outside Dia. (In.)
5.56 in
Bore Dia. (In.)
17 mm
Construction
Glass Reinforced Nylon
Dimension B (In.)
5.03 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- FA5501
- Zoro #
- G1394592
- UPC #
- -
- Country of Origin
- United States
- Item
- V-Belt Idler Pulley
- Belt Type
- 7/8 in Flat
- Construction
- Glass Reinforced Nylon
- Bearings
- ABEC 1 6203-2RS
- For Use With
- Self-Adjusting Belt Tensioner
- Material Fabrication
- Molded
- Bearing Number
- 6203-2RS
- Number of Bearings
- 1
- Bearing Material
- Chrome Steel
- Maximum Radial Load at Speed
- 1,026 lb @ 300 RPM, 1,175 lb @ 200 RPM, 1,480 lb @ 100 RPM, 2,141 lb @ 33 RPM, 402 lb @ 5,000 RPM, 449 lb @ 3,600 RPM, 507 lb @ 2,500 RPM, 565 lb @ 1,800 RPM, 601 lb @ 1,500 RPM, 687 lb @ 1,000 RPM, 866 lb @ 500 RPM
- Features
- ABEC-1 Bearing
- Face Type
- Crowned
- Lubrication
- Lubrication Required
- Pulley Material
- Fiberglass-Reinforced Nylon
- Minimum Operating Temperature
- -20 Degrees F
- For Belt Type
- Flat
- Bearing Closure
- Double Sealed
- Standards
- ABEC-1, ASTM D256, ASTM D638, ASTM D648, ASTM D790
- Number of Flanges
- 2
- For Belt Series
- PowerMax(TM)
- Bearing Type
- Ball
- Resistance Properties
- Abrasion-Resistant
- Maximum Operating Temperature
- 350 Degrees F
- Weight
- 0.48 lb
Description
V-Belt Idler Pulley, Bearing Type Ball, For Belt Type Flat, Bore Diameter 17 mm, Face Width 1.02 in, Outside Diameter 5.56 in, Pulley Material Fiberglass-Reinforced Nylon, Bearing Closure Double Sealed, Bearing Material Chrome Steel, Bearing Number 6203-2RS, Face Diameter 5.03 in, Face Type Crowned, Features ABEC-1 Bearing, For Belt Series Powermax, For Belt Width 7/8 in, For Use With Self Adjusting Belt Tensioner, Lubrication Mobil Polyrex EM, Material Fabrication Molded
