Shop FENWAL
See all product information

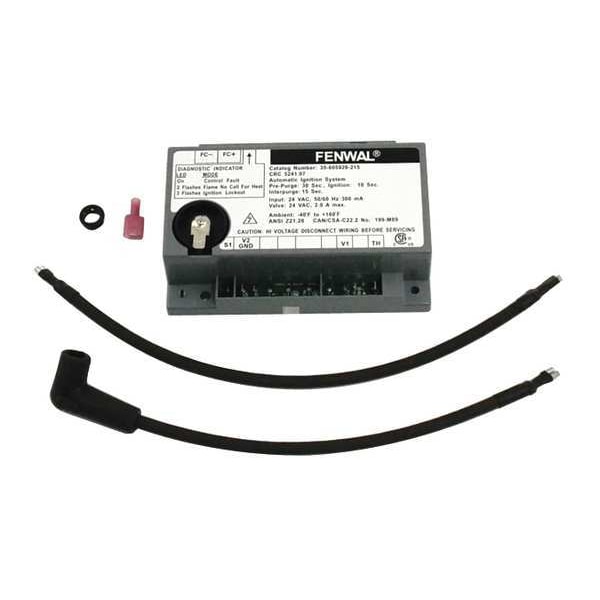

Control Board, 24V
Mfr # 35-605928-215
Zoro # G0115748
product price:Â $317.99
/ea
Free Shipping & Returns
Key Features
Includes
(2) Wires, Ignition Control, Wire Connector
Fits Brand
FENWAL IGNITION CONTROLS
Input Voltage
18 to 30V AC
Product Type
Ignition Control Board
Control Mounting Type
Junction Box
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 35-605928-215
- Zoro #
- G0115748
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Depth
- 5 3/4 in
- Overall Height
- 1 7/8 in
- Overall Width
- 4 in
Details
- Includes
- (2) Wires, Ignition Control, Wire Connector
- Item
- Control Board, 24V
- Fits Brand
- FENWAL IGNITION CONTROLS
- Input Voltage
- 18 to 30V AC
- Product Type
- Ignition Control Board
- Control Mounting Type
- Junction Box
- Minimum Operating Temperature
- -40 Degrees F
- Ignition Type
- Direct Spark Igniter
- Maximum Operating Temperature
- 176 Degrees F
- Items Controlled
- Spark Ignitors
- Compatible with Brand
- Fenwal Ignition Controls
- Terminal Designations
- FC-, FC+, GND, H.V, NC, S1, TH/W, V1, V2
- Maximum Relative Humidity
- 95 %
- Furnace Control Functions
- Heat
- Igniter Voltage
- 24V AC
- Application
- Gas Furnaces
- Standards
- ANSI Z21.20, ANSI/UL 1998. UL File MH8817, AS 4622-2004, AS 4625-2008, CAN/CSA C22.2 No. 199-M89, CE Approved to EN 298-2012, UL 372
- Control Voltage
- 18 to 30V AC
Description
Control Board, 24V, Compatible with Brand Fenwal Ignition Controls, Control Voltage 18 to 30V AC, Input Voltage 18 to 30V AC, Items Controlled Spark Ignitors, Product Type Ignition Control Board, Overall Height 1 7/8 in, Overall Width 4 in, Overall Depth 5 3/4 in, Ignition Type Direct Spark Igniter, Control Mounting Type Junction Box, Application Gas Furnaces, Furnace Control Functions Heat, Includes (2) Wires, Ignition Control, Wire Connector, Maximum Operating Temperature 176 Degrees F
