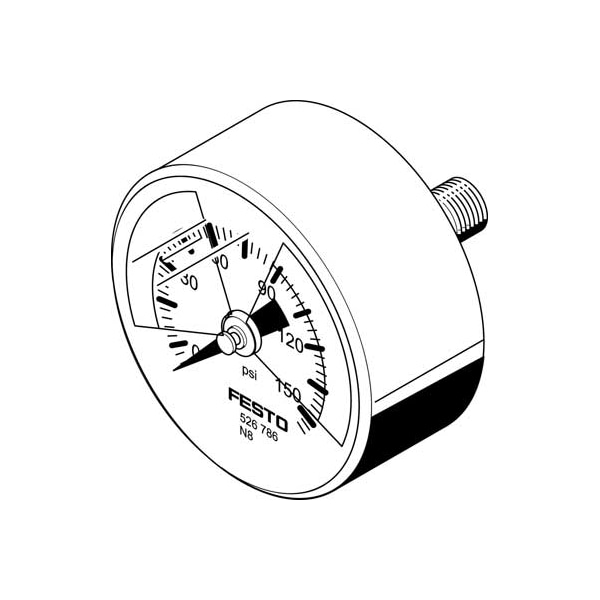

Pressure Gauge MA-40-145-R1/8-PSI-E-RG
- Mfr # MA-40-145-R1/8-PSI-E-RG
- Zoro # G402730786
product price:Â
$
38.89
/ea
Key Features
Primary Pressure Range
0 bar to 10 bar
IP/NEMA Rating
IP43
Housing colour
Black
Display range
0 psi to 145 psi
Measurement accuracy class
2.5
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MA-40-145-R1/8-PSI-E-RG
- Zoro #
- G402730786
- UPC #
- -
- Country of Origin
- Poland
Dimensions
- Nominal Dial Size
- 40 ga
Details
- Primary Pressure Range
- 0 bar to 10 bar
- IP/NEMA Rating
- IP43
- Housing colour
- Black
- Display range
- 0 psi to 145 psi
- Measurement accuracy class
- 2.5
- Temperature of medium
- -20 °C to 60 °C
- Connection position
- Centered on rear side
- Pneumatic connection
- R1/8
- Ambient temperature
- -20 °C to 60 °C
- Intermittent load factor
- 0.66
- Housing material
- ABS
- Type of mounting
- Line installation
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
Description
Pressure Gauge Ma-40-145-R1/8-Psi-E-Rg With Display Unit In Psi, Adjustable Red/Green Range. Indicating Range [Psi]=0 - 145 Psi, Conforms To Standard=En 837-1, Nominal Size Of Pressure Gauge=40, Design Structure=Bourdon-Tube Pressure Gauge, Mounting Type=Line Installation
