  5. Power Venter, 115, Galvanized Steel, 12 in W, 12 1/4 in H, 5" Inlet and Outlet Dia.

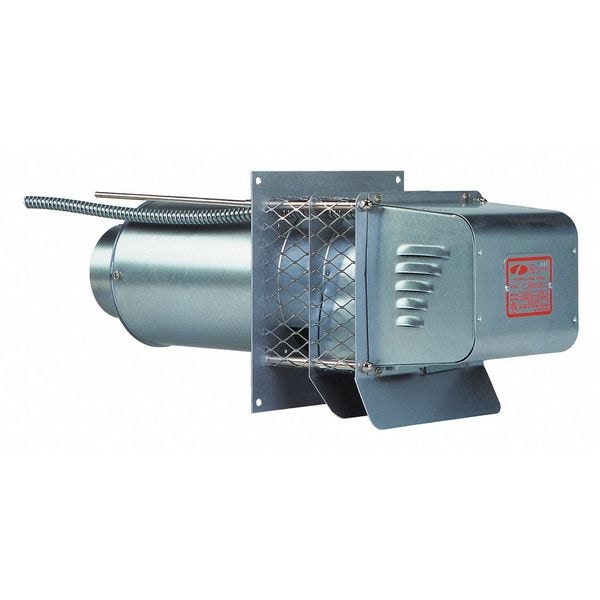

Field Controls Power Venter, 115, Galvanized Steel, 12 in W, 12 1/4 in H, 5" Inlet and Outlet Dia. SWG-5 - main

Power Venter, 115, Galvanized Steel, 12 in W, 12 1/4 in H, 5" Inlet and Outlet Dia.

  • Mfr # SWG-5

  • Zoro # G2470986

product price:  $872.94
/ea
Free Shipping & Returns

Key Features

Inlet and Outlet Dia. (In.)
5"
Type
Power Venter
Voltage
115
Depth (In.)
9 7/32 in
Cut Out Required
8-1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SWG-5
Zoro #
G2470986
UPC #
090747187348
Country of Origin
United States

Dimensions

Inlet and Outlet Dia. (In.)
5"
Depth (In.)
9 7/32 in
Height (In.)
12 1/4 in
Vent Pipe Dia. (In.)
5"
Width (In.)
12 in
Max. Pipe Length 300
100
Overall Width
12 in
Outlet Diameter
5 in
Inlet Diameter
5 in
Manufacturer Warranty Length
5 yr
Wheel Diameter
4 3/4 in
Minimum Vent Pipe Diameter
4 in
Overall Depth
12 in
Outlet Width
2 1/8 in
Overall Height
22 1/2 in
Outlet Height
2 1/2 in
Bore Diameter
5 in
Maximum Vent Pipe Diameter
5 in
For Vent Pipe Diameter
6 in
Cutout Size
8 1/4 in

Details

Item
Power Venter
Type
Power Venter
Voltage
115
Cut Out Required
8-1/4 in
Construction Material
Galvanized Steel
Amps
1.3A
Includes
Two Piece Backing Plate
Remarks
Used to Exhaust Heating Appliances
Agency Compliance
ETL Certified to UL Standards
Application
Furnaces
Watts
144 W
RPM
3000
Class
B
Overload Protection
Thermal
Duct Temp. Deg. (F)
550 Degrees F
BtuH Input
290,000
Maximum Inlet Air Temperature
550 Degrees F
Motor Type
Permanent Split Capacitor
For Fuel Type
LP, Natural Gas, Oil
Current
1.3 A
Includes Mounting Hardware
Yes
Maximum Motor Speed
3,100 RPM
Nameplate Voltage
115V AC
For Appliance Type
Gas or Oil Furnaces, Boilers, Water Heaters
Wheel Type
Forward-Curved
Wheel Material
Steel
Outlet Shape
Rectangular
Frequency
60 Hz
Standards
UL Listed
Maximum Heater BTU Input for Oil Appliance
254,000 BtuH
Housing Material
Stainless Steel
Maximum Heater BTU Input for Gas Appliance
290,000 BtuH
Airflow @ 0.000 in SP
0.004 cfm
Power Consumption
144 W
Maximum Static Pressure
1 5/8 in wc
Phase
1
Maximum Fan Speed
3,100 RPM
Compatible with Brand
Universal
Blower Type
Sidewall Power Venter

Description

Power Venter, Application Furnaces, For Fuel Type LP, Natural Gas, Oil, For Appliance Type Gas or Oil Furnaces, Boilers, Water Heaters, Maximum Vent Pipe Diameter 5 in, Minimum Vent Pipe Diameter 4 in, Maximum Heater BTU Input for Gas Appliance 290,000 BtuH, Maximum Heater BTU Input for Oil Appliance 254,000 BtuH, Inlet Diameter 5 in, Outlet Diameter 5 in, For Vent Pipe Diameter 6 in, Compatible with Brand Universal, Nameplate Voltage 115V AC, Phase 1, Current 1.3 A, Frequency 60 Hz
