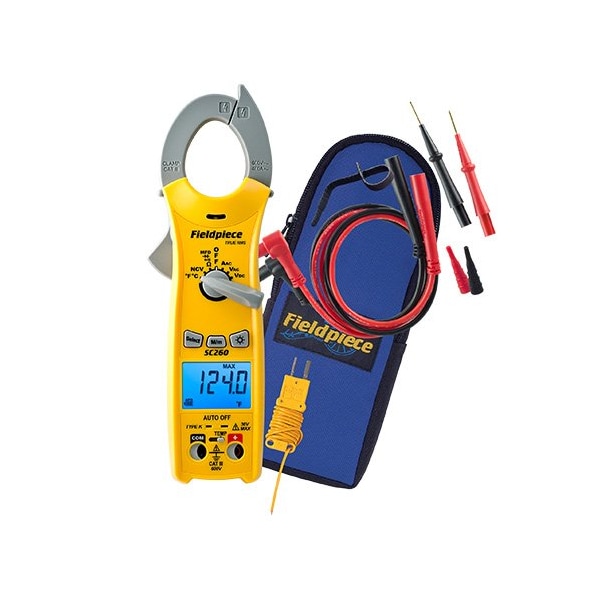

Fieldpiece DigitalClampMeter, TRMS, 400A, 600VAC SC260 - main

DigitalClampMeter, TRMS, 400A, 600VAC

  • Mfr # SC260

  • Zoro # G112932654

product price: $177.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Safety Rating
CAT III 600V
Jaw Opening
1.2 in
Basic AC Voltage Accuracy
+/-1.20% + 8
Instrument Counts
4,000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SC260
Zoro #
G112932654
UPC #
872641003098
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Overall Width
67.4 mm
Battery Size
9V
Overall Height
205.5 mm

Details

Item
Clamp Meter
Digital/Analog
Digital
Safety Rating
CAT III 600V
Jaw Opening
1.2 in
Basic AC Voltage Accuracy
+/-1.20% + 8
Instrument Counts
4,000
Jaw Style
Clamp On
Resistance Measurement Resolution
0.01 ohm
Non-Contact Voltage Detector
Yes
Batteries Included
Yes
DC Voltage Measurement Resolution
0.001 V
AC Voltage Measurement Resolution
0.001 V
Battery Access
Yes
Data Hold
Yes
Minimum Capacitance Measurement
4 nF
Basic DC Current Accuracy
+/-1% + 2
Special Features
5 Minute Duration With Auto-Off, Low Battery Indication
Minimum Resistance Measurement
40 ohm
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Voltage, Resistance, Temperature
Capacitance Measurement Resolution
1 pF
Maximum Capacitance Measurement
4 mF
Minimum AC Current Measurement
40 A
Frequency Counter
50 Hz to 500 Hz
Min-Max-Avg Button Included
Yes
Resistance Measurement Accuracy
+/-1% + 15 (40 ohm); +/-1% + 5 (400 ohm to 400 kiloohm); +/-1.50% + 5 (4 megaohm); +/-3% + 5 (40 megaohm)
Maximum DC Voltage Measurement
600 V
Battery Chemistry
Alkaline
Basic AC Current Accuracy
+/-2% + 10
Capacitance Measurement Accuracy
+/-3% + 20 (4 nF); +/-3% + 5 (40 nF to 400 uF); +/-5% + 20 (4 mF)
Time of Day Clock
Yes
Basic DC Voltage Accuracy
+/-0.50% + 2
Minimum DC Voltage Measurement
4 V
Auto Power Off
Yes
Thermometer Type
Type K Thermocouple
Minimum AC Voltage Measurement
4 V
Maximum AC Voltage Measurement
600 V
Maximum DC Current Measurement
4,000 uA
DC Current Measurement Resolution
0.1 uA
Memory
Data Hold; Max/Min
AC Response Calculation
TRMS
Diode Test
Yes
Standards
UL 61010-031, UL Listed
Maximum Resistance Measurement
40 megaohm
Display Type
LCD
Maximum AC Current Measurement
400 A
Battery Voltage
9V
Maximum Storage Temperature
140 Degrees F
Minimum DC Current Measurement
400 uA
AC Current Measurement Resolution
0.01 A
Minimum Storage Temperature
-4 Degrees F
Minimum Operating Temperature
32 Degrees F
Includes
9V Battery, ADLS2 Deluxe Silicone Lead Set With Gold Plated Tips and Removable Sheath, ANC4 Padded Case, ATB1 Wrap Tab Type K Thermocouple, SC260 Meter, Velcro Strap

Description

Digital Clamp Meter, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 400 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 4,000 uA, Maximum DC Voltage Measurement 600 V, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, Capacitance, DC Voltage, Resistance, Temperature, Intrinsically Safe No, Data Logging Yes, Thermal Imaging No, Removable Screen No, Bluetooth Compatible No, Jaw Opening 1.2 in, Jaw Style Clamp
