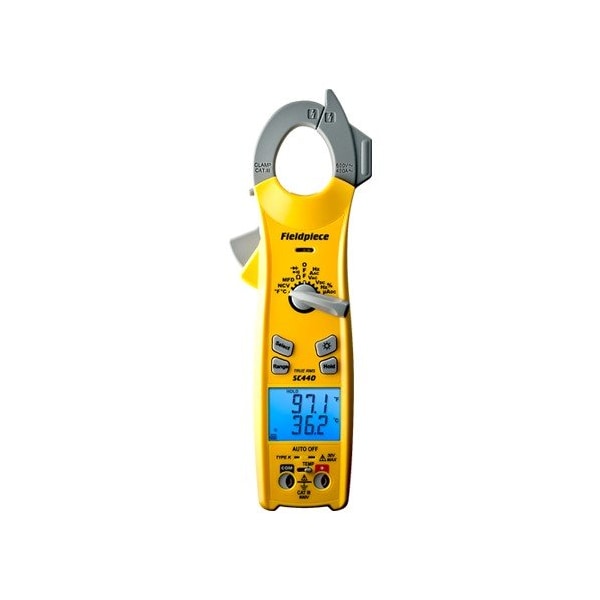

Fieldpiece DigitalClampMeter, TRMS, 400A, 600VAC SC440 - main

DigitalClampMeter, TRMS, 400A, 600VAC

  • Mfr # SC440

  • Zoro # G812932640

product price: $275.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Safety Rating
CAT III 600V
Jaw Opening
1.2 in
Manufacturers Warranty Length
1 yr
Maximum AC Voltage Measurement
600 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SC440
Zoro #
G812932640
UPC #
872641003043
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Overall Width
79 mm
Overall Height
233 mm
Battery Size
9V

Details

Item
Clamp Meter
Digital/Analog
Digital
Safety Rating
CAT III 600V
Jaw Opening
1.2 in
Maximum AC Voltage Measurement
600 V
Memory
Data Hold
Resistance Measurement Resolution
0.1 ohm
Minimum Operating Temperature
32 Degrees F
Frequency Measurement Accuracy
+/-0.10% + 5
Basic AC Voltage Accuracy
+/-1.20% + 8 (500 mV Range 50 to 60 Hz); +/-1.20% + 8 (5V, 50V, 500V); +/-1.50% + 8 (600 V Range)
AC Voltage Measurement Resolution
0.1 mV
Maximum Frequency Measurement
400 Hz
Batteries Included
Yes
Display Type
LED
Inrush Current Measurable
Yes
Non-Contact Voltage Detector
Yes
Instrument Counts
5,000
Battery Chemistry
Alkaline
AC Current Measurement Resolution
0.01 A
Maximum Resistance Measurement
50 megaohm
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Data Hold
Yes
Standards
UL 61010-031, UL Listed
Resistance Measurement Accuracy
+/-1% + 5 (500 ohm to 500 kiloohm); +/-1.50% + 5 (5 megaohm); +/-3% + 5 (50 megaohm)
Minimum Frequency Measurement
10 Hz
Minimum AC Current Measurement
50 A
Maximum DC Voltage Measurement
600 V
Maximum AC Current Measurement
400 A
Maximum Storage Temperature
140 Degrees F
Includes
9V Battery, ADLS2 Deluxe Silicone Lead Set With Gold Plated Tips and Removable Sheath, ANC12 Padded Case, ASA2 Short Alligator Lead Extensions, ATB1 Wrap Tab Type K Thermocouple, SC440 Meter, Velcro Strap
Capacitance Measurement Resolution
1 nF
Frequency Counter
10 Hz to 400 Hz
Thermometer Type
Type K Thermocouple
Minimum AC Voltage Measurement
500 mV
Minimum Capacitance Measurement
5 uF
Basic AC Current Accuracy
+/-2% + 10
Time of Day Clock
Yes
Frequency Measurement Resolution
0.1 Hz
Basic DC Current Accuracy
+/-1% + 2
Special Features
60 Second Duration With Auto-Off, Low Battery Indication
DC Current Measurement Resolution
0.1 uA
Minimum DC Voltage Measurement
500 mV
Minimum Storage Temperature
-4 Degrees F
Battery Access
Yes
AC Response Calculation
TRMS
Basic DC Voltage Accuracy
+/-0.50% + 2
Auto Power Off
Yes
Capacitance Measurement Accuracy
+/-3% + 15 (5 uF); +/-3% + 5 (50 uF to 500 uF); +/-5% + 20 (5 mF)
Minimum Resistance Measurement
500 ohm
Jaw Style
Clamp On
Maximum Capacitance Measurement
5 mF
Maximum DC Current Measurement
500 uA
DC Voltage Measurement Resolution
0.1 mV
Battery Voltage
9V
Diode Test
Yes

Description

Digital Clamp Meter, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 400 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 500 uA, Maximum DC Voltage Measurement 600 V, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature, Intrinsically Safe No, Data Logging Yes, Thermal Imaging No, Removable Screen No, Bluetooth Compatible No, Jaw Opening 1.2 in
