  9. DigitalClampMeter, TRMS, 600A, 750VAC

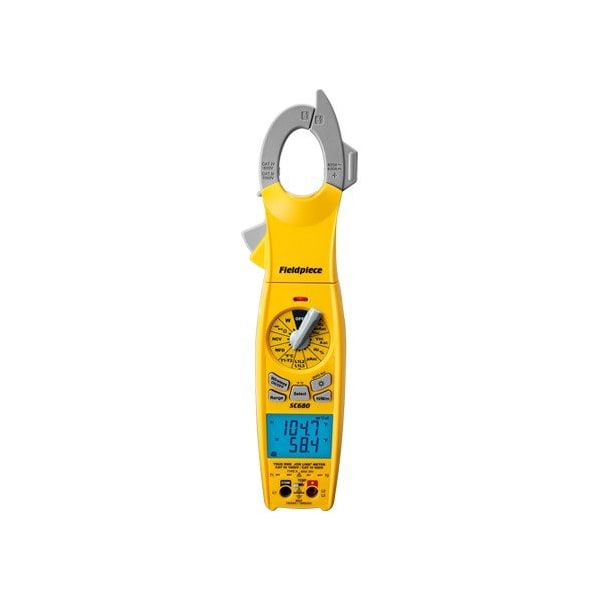

Fieldpiece DigitalClampMeter, TRMS, 600A, 750VAC SC680 - main

DigitalClampMeter, TRMS, 600A, 750VAC

  • Mfr # SC680

  • Zoro # G012932600

product price: $495.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Safety Rating
CAT III 1000V, CAT IV 600V
Jaw Opening
1.2 in
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Basic AC Current Accuracy
+/-2.50% + 15 (100 A)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SC680
Zoro #
G012932600
UPC #
872641004231
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Overall Width
79.5 mm
Overall Height
301.5 mm
Battery Size
9V

Details

Item
Swivel Clamp Meter
Digital/Analog
Digital
Safety Rating
CAT III 1000V, CAT IV 600V
Jaw Opening
1.2 in
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Basic AC Current Accuracy
+/-2.50% + 15 (100 A)
Instrument Counts
10,000
Minimum Operating Temperature
32 Degrees F
DC Current Measurement Resolution
0.1 uA
Frequency Counter
10 Hz to 400 Hz
Diode Test
Yes
Minimum AC Current Measurement
100 A
Special Features
5 Minute Duration With Auto-Off, Low Battery Indication
Includes
(2) ATB1 Type K Thermocouples, (2) Velcro Straps, 9V Alkaline Battery, ADLS2 Silicone Leads, ANC7 Protective Padded Case, ASA2 Gator Clip Leads, RCT2 Molex Probe Tips, SC680 Clamp Meter
Frequency Measurement Accuracy
+/-0.10% + 5
Battery Chemistry
Alkaline
Inrush Current Measurable
Yes
Basic DC Current Accuracy
+/-2.50% + 15 (100 A)
Data Hold
Yes
Time of Day Clock
Yes
Minimum AC Voltage Measurement
1,000 mV
Maximum DC Current Measurement
1,000 uA
Batteries Included
Yes
Capacitance Measurement Accuracy
+/-3% + 15 (10 nF); +/-3% + 5 (100 nF to 1000 uF); +/-5% + 5 (10 mF)
Capacitance Measurement Resolution
0.01 nF
Battery Access
Yes
DC Voltage Measurement Resolution
0.1 mV
Frequency Measurement Resolution
0.1 Hz
Maximum Capacitance Measurement
10 mF
Memory
Data Hold
Minimum Resistance Measurement
100 ohm
AC Current Measurement Resolution
0.01 A
Maximum Storage Temperature
140 Degrees F
Maximum DC Voltage Measurement
1,000 V
Basic AC Voltage Accuracy
+/-1.50% + 10 (50 to 60 Hz); +/-2% + 10 (60 to 400 Hz)
Thermometer Type
Type K Thermocouple
Maximum AC Voltage Measurement
750 V
Maximum Frequency Measurement
400 Hz
Minimum DC Voltage Measurement
1,000 mV
Basic DC Voltage Accuracy
+/-0.50% + 2
Maximum Resistance Measurement
50 megaohm
Minimum Capacitance Measurement
10 nF
Maximum AC Current Measurement
600 A
Minimum Storage Temperature
-4 Degrees F
Min-Max-Avg Button Included
Yes
AC Response Calculation
TRMS
Resistance Measurement Accuracy
+/-1% + 15 (100 ohm); +/-1% + 5 (1000 ohm to 100 kiloohm); +/-1.50%+ 5 (1000 kiloohm); +/-3% + 5 (10 megaohm to 50 megaohm)
Resistance Measurement Resolution
0.01 ohm
AC Voltage Measurement Resolution
0.1 mV
Minimum Frequency Measurement
10 Hz
Jaw Style
Clamp On
Auto Power Off
Yes
Standards
UL 61010-031, UL Listed
Non-Contact Voltage Detector
Yes
Battery Voltage
9V

Description

Digital Clamp Meter, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 750 V, Maximum DC Current Measurement 1,000 uA, Maximum DC Voltage Measurement 1,000 V, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature, Intrinsically Safe No, Data Logging Yes, Thermal Imaging No, Removable Screen No, Bluetooth Compatible No
