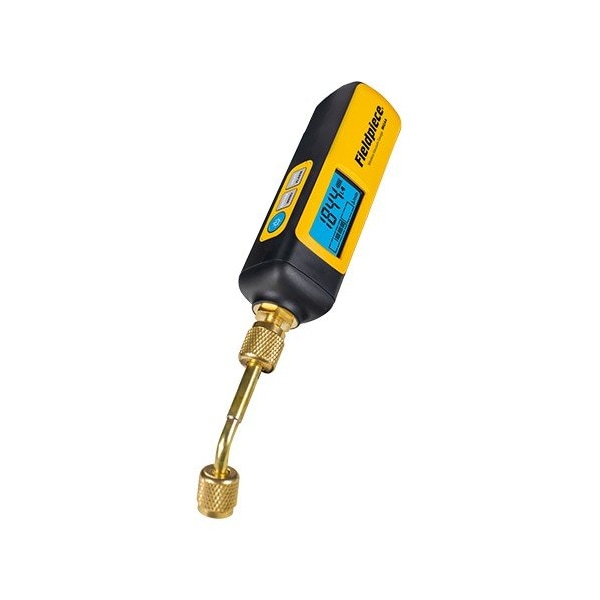

Vacuum Gauge, Brass, Perm Sensor

Mfr # MG44
Zoro # G113343305

269.99

Free Shipping & Returns

Key Features

Connection Size

1/4 in

Series

Job Link

Includes

Reversible 1/4 in 45 Degrees Coupler

Accuracy

+/- 5% + 5 micron

Standards

C-Tick, CE EN300 328, FCC, RoHS, UKCA, WEEE

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: MG44
Zoro #: G113343305
UPC #: 872641004934
Country of Origin: Taiwan, Province of China

Dimensions

Connection Size: 1/4 in

Details

Item: Vacuum Gauge
Series: Job Link
Includes: Reversible 1/4 in 45 Degrees Coupler
Accuracy: +/- 5% + 5 micron
Standards: C-Tick, CE EN300 328, FCC, RoHS, UKCA, WEEE
Display Pressure - Maximum: 25,000 micron Hg
Connection Material: Brass
Programmability: Non-Programmable
Battery Recharge: Not Rechargeable
Units Measured: mBar, Micron, mTorr, Pascal, Torr
Operating Temperature - Minimum: 14 Degrees F
Indication Method: Visual
Connection Gender: Male
For Refrigerant Type: R-1234YF, R-1234ZE, R-32
Power Source: Battery
Battery Type: AA
Sensor Type: Permanent Sensor
Access Port Type: SAE Flare
Connection Type: SAE Flare
Includes Hoist Clip Access: Hoist Clip Not Included
App Compatibility: Job Link(R)
Product Type: Vacuum Gauge
Access Port Thread Direction: Right-Hand
Connectivity: Bluetooth
Display Vacuum - Minimum: 50 micron Hg
Display Location: App-Based, Built-In
Display Vacuum - Maximum: 25,000 micron Hg
Automatic Shut-Off Time: 15 min
Connection Thread Direction: Right-Hand
Includes Batteries: Batteries Included
Number of Batteries: 2
Includes Access Port: Access Port Not Included
Warranty: 1 yr
Number of Gauges: 1
Includes Low Battery Warning: Low Battery Warning Included
Operating Temperature - Maximum: 122 Degrees F
Display Pressure - Minimum: 50 micron Hg
Resolution - Minimum: 1 micron Hg
Calibration Certificate Type: Not Certified
Battery Life: 40 hr
For Operating System: Android(TM), iOS(R)
A2L Compatibility: A2L Compatible
Power Source - TS Only: Battery
Power Source - old: Battery

Description

Vacuum Gauge, Includes Reversible 1/4 in 45 Degrees Coupler
