  9. 3-wheel Nickel-plated mechanical fuel transfer meter, 5-20 gpm.
Shop All Flowmeters
Fill-Rite

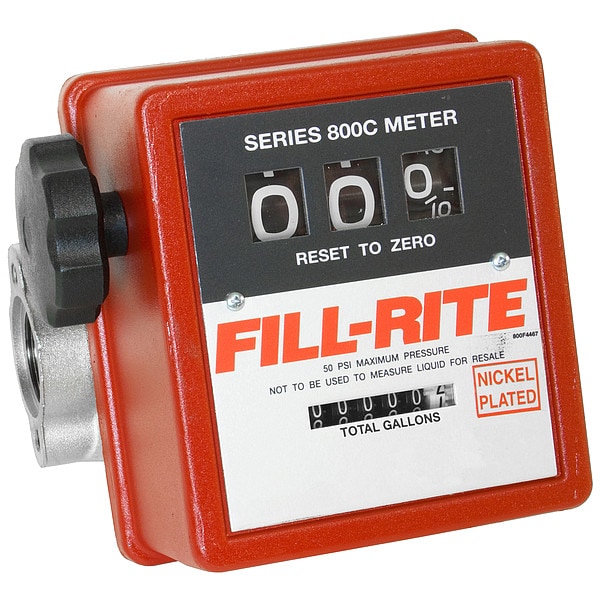

3-wheel Nickel-plated mechanical fuel transfer meter, 5-20 gpm.

product price: $306.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Liquid
  • Housing Material Aluminum
  • For Pipe Size 1 in
  • Flow Material B20, Diesel, E15, Gasoline, Kerosene
  • Connection Size 1 in
See all product information

Product Information

  • Brand Fill-Rite
  • MFR # 807CN1
  • Zoro # G1608205
  • UPC #
    089404116821
  • Country of Origin United States
  • Category Flowmeters

Dimensions

For Pipe Size 1 in
Connection Size 1 in
Height 6 in
Manufacturers Warranty Length 2 yr
Length 8 in
Width (In.) 6"
Connection Size (In.) 1 FNPT
Width 6 in
Length (In.) 8"
Height (In.) 6
Overall Height 6 in
Overall Length 5 in
Overall Width 6 in
Manufacturer Warranty Length 2 yr

Details

Item Mechanical Flowmeter
Type Liquid
Housing Material Aluminum
Flow Material B20, Diesel, E15, Gasoline, Kerosene
Connection Type FNPT
Max. Pressure 50 psi
Wetted Materials Aluminum, Buna N, EPDM, Flourocarbon, Nickel, PTFE, Ryton(R), Stainless Steel
Max. Viscosity 50 SUS
Flow Range 5 to 20 gpm
Fluid Temp. Range -40 Degrees to 140 Degrees F
Max. Pressure (PSI) 50
Application B20, Diesel, E15, Gasoline, Kerosene
Accuracy (%) +/-1
Standards CE Certified, cULus Listed
Max. Viscosity (SSU) 50
Flow Range (GPM) 5 to 20
Resetable Cumulative Totalizer 100 gal
Temp. 150 Degrees F
Agency Compliance UL Listed
GPM Max. 20 gpm
Chamber Material Polyester
Seal Material Viton
Display Mechanical
Flow Range (LPM) 19 to 75
Thread NPT
Shaft Material Stainless Steel
Master Totalizer 99.9 gal
Max. Temp. (F) 150
Display Type Mechanical
Output Type Standard Frequency Pulse
Product Type Mechanical Fuel Transfer Meter
Rotor Material PPS
Media Temperature - Minimum -40 Degrees F
Flow Rate - Minimum 5 gpm
Wetted Material Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel
Unit Of Measure Gallons
Includes Pressure Gauge No
Mounting Orientation Universal
Includes Totalizer Yes
Includes Flow Rate Adjustment Knob Yes
Accuracy +/-1%
Viscosity - Maximum 50 SUS
Flowmeter Type Paddlewheel
Compatible Flow Material Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids
Flow Rate - Maximum 20 gpm
Operating Pressure - Maximum 50 psi
Pulse Rate 10 pulses/gal
Media Temperature - Maximum 140 Degrees F
O-Ring Material Buna-N

Description

Mechanical Flowmeter, Product Type Mechanical Fuel Transfer Meter, Flowmeter Type Paddlewheel, Accuracy +/-1 Percent, Connection Size 1 in, Connection Type FNPT, Compatible Flow Material Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 50 SUS, Voltage - Maximum Not Applicable, Housing Material Aluminum, Rotor Material PPS, O-Ring Material Buna-N, Seal Material Viton

Restrictions

  • Hazardous material
