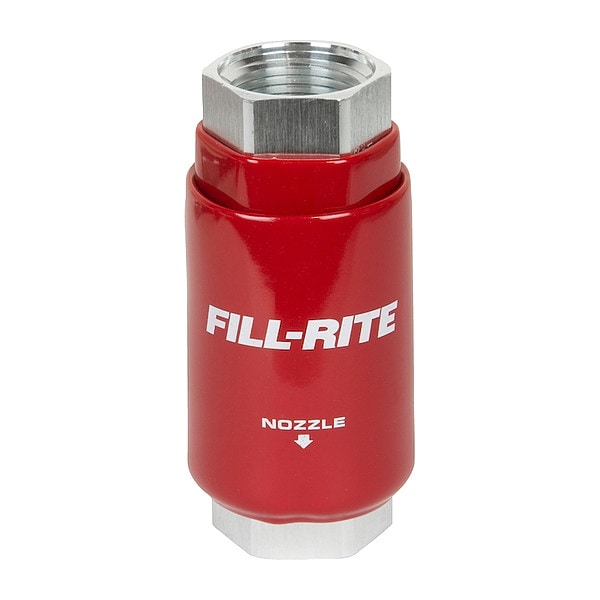

Fill-Rite Breakaway Fitting, 4-3/4inL, 1-1/4in. Size B100F475 - main

Breakaway Fitting, 4-3/4inL, 1-1/4in. Size

  • Mfr # B100F475

  • Zoro # G4163087

product price:  $147.99
/ea
Free Shipping & Returns

Key Features

For Use With
Fuel Transfer Pumps
For Use With Mfr. Model Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Material
Aluminum
Outlet
1 in
Standards
UL/cUL
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B100F475
Zoro #
G4163087
UPC #
089404225011
Country of Origin
United States

Dimensions

Length
4 3/4 in
Diameter
1 1/4 in
Size
1-1/4 in
Outlet Connection Size
1 in
Inlet Connection Size
1 in
Discharge Diameter
1 in
Inlet Diameter
1 in

Details

Item
Swivel
For Use With
Fuel Transfer Pumps
For Use With Mfr. Model Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Material
Aluminum
Outlet
1 in
Standards
UL/cUL
Max. Pressure
50 psi
Application
Agriculture, Construction, Mining
Inlet
1 in NPT
Type
Lightweight
Includes
1" Hose Breakaway
Housing Material
Aluminum
Compatible with Series
Fuel Pumps, Nozzles
Compatible with Manufacturer Model Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Compatible with Brand
Fill-Rite
Product Type
Swivel
Maximum Operating Pressure
50 psi
For Media Type
Biodiesel
Inlet Connection Type
NPT
Wetted Material
Aluminum/Fluorocarbon
Outlet Connection Type
NPT
Compatible Manufacturer Part Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Compatible Manufacturer Model Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Compatible with Manufacturer Model No.
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Compatible with Mfr. Model No.
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
For Use with Mfr Model Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Compatible Pump Manufacturer Part Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Compatible Mfr. Model Number
FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, NX25-DDCNF-AA
Inlet Standard
NPT
Reconnectability
Non-Reconnectable
Discharge Standard
NPT
Inlet Gender
Female
Chemical Compatibility
Biodiesel
Compatible Brand
Fill-Rite
Discharge Gender
Male and Female
Body Material
Aluminum

Description

The FILL-RITE B100F475 is a 1 in. hose breakaway fitting for fuel transfer systems. It is installed in-line on compatible Fill-Rite fuel pumps and nozzles and is designed to stop external fuel drainage if a vehicle drives away while the nozzle is still in the tank. The unit features an instant-closing poppet check valve that stops fluid flow when a separation event occurs. It is intended for use with biodiesel applications and fuel transfer pumps.

Key Features of the FILL-RITE B100F475 Breakaway Fitting:

  • 1 in. NPT inlet and outlet: Connects to fuel transfer hose assemblies with matching 1 in. NPT connections.
  • Breakaway function: Stops external fuel drainage during an accidental drive-off event.
  • Instant-closing poppet check valve: Shuts off fluid flow immediately when the breakaway activates.
  • Compatible brand: Designed for use with Fill-Rite equipment.
  • Compatible series: Used with fuel pumps and nozzles.
  • Compatible model numbers: Fits select Fill-Rite models including FR310VN, FR311VB, FR311VN, FR4204H, FR4210H, FR4210HARC, FR4210HB, FR4210HBFQ, FR710VB, FR710VN, FR711VA, NX25-120NB-AA, NX25-120NB-PX, NX25-120NF-AA, NX25-120NF-PX, NX25-DDCNB-AA, NX25-DDCNB-PX, and NX25-DDCNF-AA.
  • Material: Aluminum housing with Buna-N wetted material.
  • Maximum operating pressure: 50 psi.
  • Dimensions: 4 3/4 in. length and 1 1/4 in. diameter.
  • Application: Used in agriculture, construction, and mining.
  • Standards: UL/CUL.
  • Type: Lightweight construction.
