Shop FILL-RITE

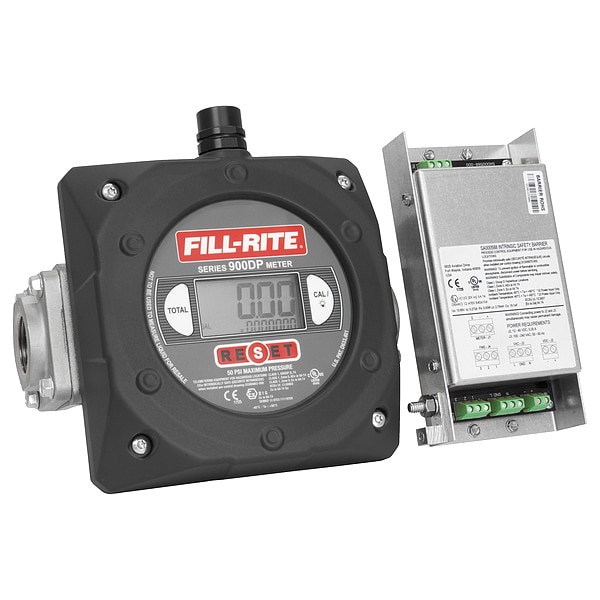

Flowmeter, 50 PSI, 1 in., Digital, Pulse

  • Mfr # 900CDP

  • Zoro # G4315650

product price:
$
865.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Aluminum
Type
Liquid
For Pipe Size
1 in
Flow Material
B20, Diesel, E15, Gasoline, Kerosene
Connection Size
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
900CDP
Zoro #
G4315650
UPC #
089404215586
Country of Origin
United States

Dimensions

For Pipe Size
1 in
Connection Size
1 in
Length
4 in
Width
10 in
Manufacturers Warranty Length
2 yr
Width (In.)
10"
Length (In.)
12"
Height (In.)
7-1/2
Height
7 1/2 in
Connection Size (In.)
1 NPT
Overall Length
4 in
Overall Height
7.5 in
Overall Width
10 in
Manufacturer Warranty Length
2 yr
Wire Rope Length
4 in

Details

Item
Mechanical Flowmeter
Housing Material
Aluminum
Type
Liquid
Flow Material
B20, Diesel, E15, Gasoline, Kerosene
Connection Type
FNPT
Max. Pressure
50 psi
Max. Viscosity
50 SUS
Wetted Materials
Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Flow Range
6 to 40 gpm
Fitting
Brass
Fluid Temp. Range
-40 Degrees to 140 Degrees F
Pressure Drop - 50% Flow (PSI)
2.5 psi
Application
Agriculture, Construction, Industrial, Mining, Municipalities
O-Ring
Buna
Agency Compliance
UL Listed
Flow Range @ GPM/LPM
6 to 40 / 23 to 150
Flow Range (GPM)
6 to 40
Master Totalizer
999,999 gal
Pulses per Gallon
10 pulses/gal
GPM Max.
40 gpm
Chamber Material
Polypropylene
Pressure Drop - 100% Flow (PSI)
11.0 psi
Max. Temp. (F)
176
Output
Pulse
Max. Viscosity (SSU)
50
Max. Pressure (PSI)
50
Max. Voltage
40V DC/240V AC
Resetable Cumulative Totalizer
9,999 gal
Seal Material
Buna-N
Flow Range @ GPH
360 to 2400
Thread
NPT
Accuracy (%)
+/-1.25
Display
Digital
Output Type
Standard Frequency Pulse
Display Type
Digital
Shaft Material
Stainless Steel
Standards
ATEX, cULus Listed
Product Type
Fuel Meter
Pulse Rate
10 pulses/gal
Includes Flow Rate Adjustment Knob
Yes
Flow Rate - Minimum
6 gpm
Includes Totalizer
Yes
Flow Rate - Maximum
40 gpm
Accuracy
+/-1.25%
Wetted Material
Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel
Flowmeter Type
Paddlewheel
Rotor Material
PPS
Mounting Orientation
Universal
Media Temperature - Minimum
-40 Degrees F
Operating Pressure - Maximum
50 psi
O-Ring Material
Buna-N
Includes Pressure Gauge
No
Compatible Flow Material
B20, Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids
Viscosity - Maximum
50 SUS
Unit Of Measure
Gallons, Liters
Media Temperature - Maximum
140 Degrees F

Description

Flowmeter, Liquid, GPM Max. 40, Max. Pressure (PSI) 50, Connection Size (In.) 1 NPT, Max. Temp. (F) 176, Length (In.) 12, Width (In.) 10, Height (In.) 7-1/2, Housing Material Aluminum, Fitting Brass, Chamber Material Polypropylene, Seal Material Buna N, Flow Range 6 to 40 gpm, Display Digital, Resetable Cumulative Totalizer 9999 Gallons, Max. Viscosity 50 SSU, Max. Viscosity (SSU) 50, For Pipe Size 1 In.
