Shop FILL-RITE

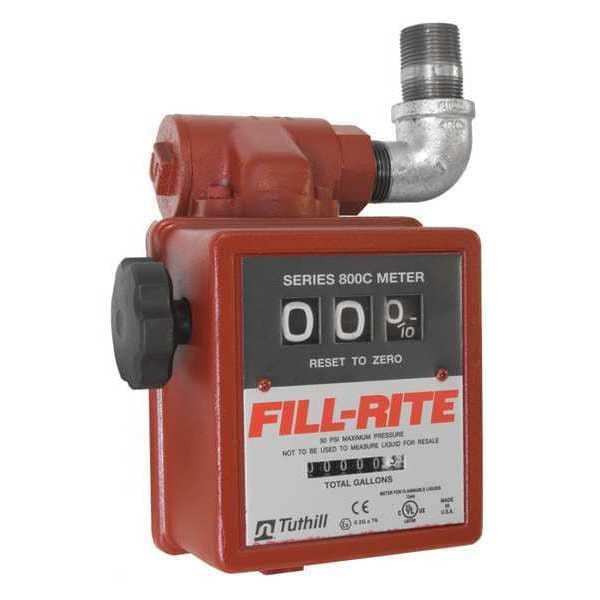

Flowmeter, 50 PSI, 20 GPM, 1 in., Mechanical

  • Mfr # 806C

  • Zoro # G4315696

product price:  $284.99
/ea
Free Shipping & Returns

Key Features

Type
Liquid
Housing Material
Aluminum
For Pipe Size
1 in
Connection Size
1 in
Flow Material
B20, Diesel, E15, Gasoline, Kerosene
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
806C
Zoro #
G4315696
UPC #
089404110324
Country of Origin
United States

Dimensions

For Pipe Size
1 in
Connection Size
1 in
Length
9 1/2 in
Connection Size (In.)
1 NPT
Width (In.)
7-1/2"
Width
7 1/2 in
Height (In.)
8
Height
8 in
Manufacturers Warranty Length
2 yr
Length (In.)
9-1/2"
Overall Length
4.8 in
Overall Width
7.5 in
Manufacturer Warranty Length
2 yr
Overall Height
8 in

Details

Item
Mechanical Flowmeter
Type
Liquid
Housing Material
Aluminum
Flow Material
B20, Diesel, E15, Gasoline, Kerosene
Connection Type
FNPT
Max. Pressure
50 psi
Wetted Materials
Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Max. Viscosity
50 SUS
Flow Range
6 to 20 gpm
Fluid Temp. Range
-40 Degrees to 140 Degrees F
Fitting
Brass
Thread
NPT
Application
Agriculture, Construction, Industrial, Mining, Municipalities
Master Totalizer
999,999 gal
Display
Mechanical
Max. Viscosity (SSU)
50
Max. Pressure (PSI)
50
O-Ring
Buna
Agency Compliance
UL Listed
Accuracy (%)
+/-1
Flow Range @ GPH
300 to 1200
Pressure Drop - 50% Flow (PSI)
1.0 psi
Flow Range @ GPM/LPM
6 to 20 / 23 to 76
Chamber Material
Polypropylene
Max. Temp. (F)
130
Pressure Drop - 100% Flow (PSI)
8.0 psi
GPM Max.
20 gpm
Flow Range (GPM)
6 to 20
Seal Material
Buna-N
Resetable Cumulative Totalizer
99.9 gal
Display Type
Mechanical
Shaft Material
Stainless Steel
Standards
CE Certified, cULus Listed
Output Type
Standard Frequency Pulse
Product Type
Fuel Meter
Unit Of Measure
Gallons
Flowmeter Type
Paddlewheel
Flow Rate - Maximum
20 gpm
Includes Flow Rate Adjustment Knob
Yes
Pulse Rate
10 pulses/gal
Rotor Material
PPS
Media Temperature - Minimum
-40 Degrees F
Operating Pressure - Maximum
50 psi
O-Ring Material
Buna-N
Accuracy
+/-1%
Compatible Flow Material
B20, Diesel, E15, Gasoline, Kerosene
Media Temperature - Maximum
140 Degrees F
Mounting Orientation
Universal
Includes Pressure Gauge
No
Includes Totalizer
Yes
Wetted Material
Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel
Viscosity - Maximum
50 SUS
Flow Rate - Minimum
5 gpm

Description

Flowmeter, Liquid, GPM Max. 20, Max. Pressure (PSI) 50, Connection Size (In.) 1 NPT, Max. Temp. (F) 130, Length (In.) 9-1/2, Width (In.) 7-1/2, Height (In.) 8, Housing Material Aluminum, Fitting Brass, Chamber Material Polypropylene, Seal Material Buna N, Flow Range 6 to 20 gpm, Display Mechanical, Resetable Cumulative Totalizer 99.9 Gallons, Max. Viscosity 50 SSU, Max. Viscosity (SSU) 50, For Pipe Size 1 In.

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
