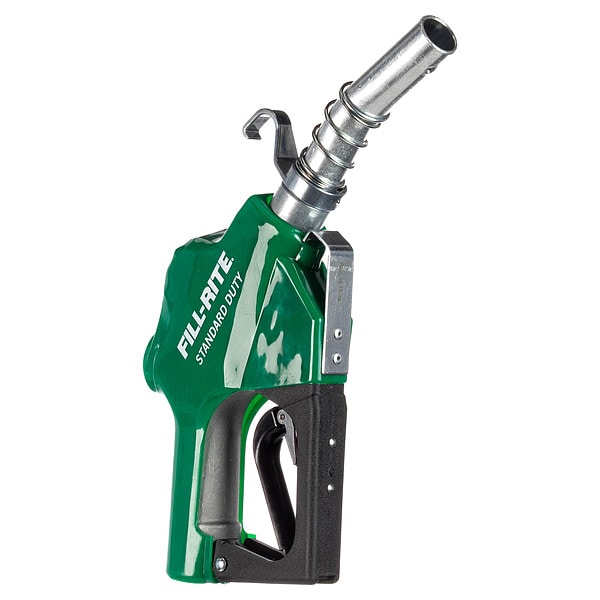

Fuel Nozzle, Green, Curved, Aluminum Spout

Mfr # SDN100GAN
Zoro # G110777806

116.99

Free Shipping & Returns

Key Features

For Use With

Diesel Exhaust Fluid

Flow Rate - Maximum

25 gpm

Metered

Agency Compliance

UL/cUL

Wetted Materials

Cast Iron, Fluorocarbon, Stainless Steel

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: SDN100GAN
Zoro #: G110777806
UPC #: 089404249444
Country of Origin: China

Dimensions

Inlet Size: 1 in
Spout Outside Diameter: 1 1/8 in
Spout Connection Size: 1 in
Spout Tip Outside Diameter: 1 1/8 in
Spout Discharge Size: 1 in

Details

Item: Fuel Nozzle
For Use With: Diesel Exhaust Fluid
Flow Rate - Maximum: 25 gpm
Metered: No
Agency Compliance: UL/cUL
Wetted Materials: Cast Iron, Fluorocarbon, Stainless Steel
Features: Auto Shut-Off, Easy to Use
Nozzle Material: Aluminum
Max. Fluid Temp.: 150 Degrees F
Nozzle Operation: Automatic
Spout Connection Type: NPT
Compatible Chemicals: Diesel, Gasoline
Number of Latch Positions: 3
Max. Operating Pressure: 50 psi
Inlet Type: NPT
Cover Color: Green
For Media Type: Biodiesel up to B20, Diesel Fuel, Gasoline, Mineral Spirits
Diesel Exhaust Fluid Compatible: No
Spout Material: Aluminum
Maximum Fluid Temperature: 150 Degrees F
Primary Color: Green
Wetted Material: Cast Aluminum/Florocarbon
Chemical Compatibility: Diesel, Gasoline
Nozzle Extension Type: Rigid
Spout Tip Shape: Round
Spout Shape: Curved
Flow Mechanism: Pressure Activated
Compatible Manufacturer Part Number: FR310VB,FR310VN,FR311VB,FR311VLB,FR311VLN,FR311VN,FR319VB,FR319VBP,FR4204H,FR4210H,FR4210HARC,FR4210HB,FR4210HBFQ,FR4210HN,FR4211H,FR4211HL,FR4211HLN,FR4219H,FR4220HDSFQ,FR4220HDSQ,FR4410H,FR710VB,FR710VN,FR711VA,NX25-120NB-AA,NX25-120NB-PX,NX25-120NF-AA,NX25-120NF-PX,NX25-DDCNB-AA,NX25-DDCNB-PX,NX25-DDCNF-AA,NX25-DDCNF-PX
Operating Temperature - Maximum: 150 Degrees F
Operating Temperature - Minimum: -20 Degrees F
Includes: Spout Spring
Maximum Operating Pressure: 50 psi
Minimum Fluid Temperature: -20 Degrees F
Meter Type Included: No Meter Included
Standards: cUL, UL Listed

Description

Fuel Nozzle, Features Auto Shut-Off, Easy to Use, Primary Color Green, For Use With Diesel Exhaust Fluid, Compatible Chemicals Diesel, Gasoline, Includes Spout Spring, Spout Material Aluminum, Agency Compliance UL/cUL, Max. Operating Pressure 50 psi, Nozzle Material Aluminum, Spout Connection Size 1 in, Spout Discharge Size 1 in, Inlet Type NPT, Inlet Size 1 in, Max. Fluid Temp. 150 Degrees F, Nozzle Operation Automatic, Spout Connection Type NPT, Diesel Exhaust Fluid Compatible No, Metered No

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
