Shop FILL-RITE

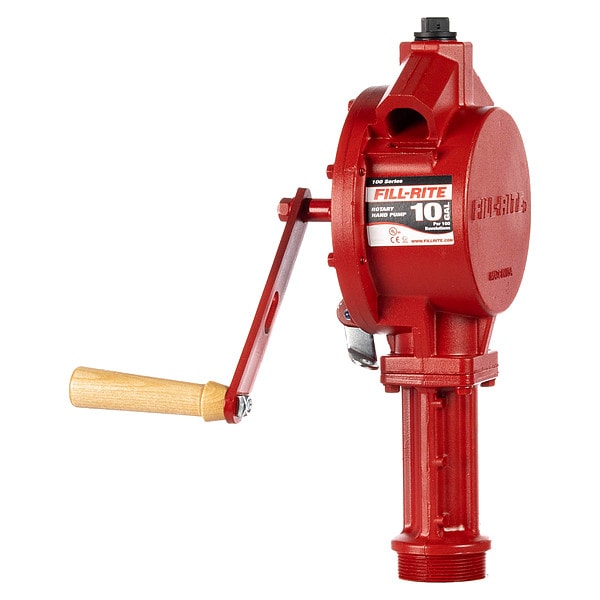

Fuel Transfer Pump, 10 gpm Max. Flow Rate , Cast Iron, 1 in NPT Inlet

  • Mfr # FR110

  • Zoro # G4315879

product price:  $244.99
/ea
Free Shipping & Returns

Key Features

Application
Designed for Gasoline, Diesel, Biodiesel up to B20, E-15 and Kerosene
Housing Material
Aluminum
GPM
10 gpm
Inlet Size
1 in NPT
Seal Material
Carbon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR110
Zoro #
G4315879
UPC #
089404002605
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Manufacturers Warranty Length
2 yr
Overall Length
6 1/4 in
Pump Mount Size
2 in
Outlet Size
3/4 in NPT
Overall Width
9 1/2 in
Overall Height
15 1/2 in
For Container Size
55 gal
Bung Connection Dia.
2 in
Container Size Included
55 gal
Adapter Connection Diameter
2 in

Details

Application
Designed for Gasoline, Diesel, Biodiesel up to B20, E-15 and Kerosene
Housing Material
Aluminum
GPM
10 gpm
Seal Material
Carbon
Pump Design
Rotary
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
50 SUS
Item
Hand Pump
Pressure Range
38 psi
Standards
Atex, CE, UL Listed
For Use With
Diesel/Fuel Oil
Bypass Valve
Yes
Metered
No
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Transfer Pump Application
Agriculture, Construction, Farming
Features
Iron Rotor with Carbon Rotary Vanes, Pressure Relief Valve, Self Priming
Agency Compliance
UL Listed
Wetted Materials
301 Stainless Steel, Buna-N, Cast Iron, Zinc Plated Steel
Action Type
Rotary
Housing Material - Pumps
Aluminum
Pump Connection OD
2 1/8 in
Includes Spout
No
Includes Bung Adapter
Yes
Compatible Chemicals
Biodiesel, Diesel Fuel, E15, Gasoline, Kerosene
Max. Flow Rate
10 gal per 100 revolutions
Includes Discharge Hose
No
Adapter Connection Type
MNPT
Max. Head Pressure
50 psi
Max. Fluid Temp.
120 Degrees F
Max. Outlet Pressure
38 psi
Includes Suction Tube
No
For Media Type
Biodiesel, Diesel Fuel, E15, Gasoline, Kerosene
Includes Nozzle
No
Mount Type
Bung
For Container Type
Drum
Maximum Fluid Temperature
120 Degrees F
Pump Technology
Vane
Maximum Head Pressure
50 psi
Includes Follower Plate
No Follower Plate Included
Static Protection
Not Groundable
Adapter Connection Standard
MNPT
Power Source
Manual
Chemical Compatibility
Biodiesel, Diesel Fuel, E15, Gasoline, Kerosene
Adapter Material
Aluminum
Maximum Flow Rate
12.8 oz per stroke
Wetted Material
Aluminum/Fluorocarbon
Maximum Outlet Pressure
38 psi
Meter Type Included
No Meter Included
Container Cover Type Included
No Cover Included
Maximum Head
6 ft
Maximum Viscosity
50 SUS
Power Source - TS Only
Manual

Description

Hand Pump, Max. Outlet Pressure 38 psi, Pump Connection OD 2 1/8 in, Self-Priming Yes, Metered No, Hose Length Not Applicable, Includes Discharge Hose No, Piston Material Not Applicable, Features Iron Rotor with Carbon Rotary Vanes, Pressure Relief Valve, Self Priming, Housing Finish Not Applicable, Seal Material Carbon, For Use With Diesel/Fuel Oil, Adapter Connection Type MNPT, For Container Type Drum, Hose Cover Material Not Applicable, Includes Bung Adapter Yes, Includes Nozzle No
