Shop FILL-RITE

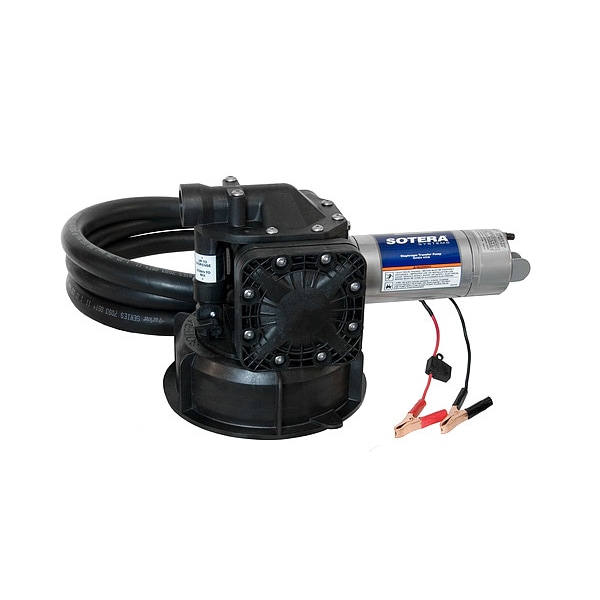

Fuel Transfer Pump, 12V DC, 13 gpm Max. Flow Rate , 1/4 HP, Polypropylene, 1 in NPT Inlet

  • Mfr # SS445B

  • Zoro # G4315897


product price:  $1,173.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Agricultural; Industrial Chemicals and Lubricants
HP
1/4
Housing Material
Polypropylene
GPM
13 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SS445B
Zoro #
G4315897
UPC #
089404213346
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Overall Width
14 in
Outlet Size
1 in NPT
Power Cord Length
20 ft
Pump Mount Size
2 in
Overall Height
6 1/4 in
Overall Length
8 3/4 in
Manufacturers Warranty Length
5 yr
Cord Length
20 ft
Hose Length
12 ft
Hose Outside Dia.
1 in
Spout Discharge Size
1 in
Suction Tube Length
45 5/8 in
Spout Length
3 1/2 in
Adapter Connection Diameter
2 in
For Container Size
55 gal, 350 gal
Hose Outside Diameter
1 3/8 in
Hose Inside Diameter
1 in

Details

Voltage
12V DC
Application
Agricultural; Industrial Chemicals and Lubricants
HP
1/4
Housing Material
Polypropylene
GPM
13 gpm
Seal Material
EPDM
RPM
2600
Pump Design
Santoprene Diaphragm
Self-Priming
No
Seal Type
O-ring
Max. Viscosity
30 SUS
Item
Electric Drum Pump
Compatible Fluids
Fertilizers, Mild Acid, Pesticides, Water
Bearing Type
Ball
Duty Cycle
30 Minutes On/30 Minutes Off
Metered
Yes
Transfer Pump Application
Agriculture, Construction, Farming
Bypass Valve
No
For Use With
Fertilizers, Mild Acid, Pesticides, Water
Pressure Range
15 psi
Features
Automatically Goes Neutral, Glass-Reinforced Polypropylene Pump Housing, Spring Driven Configuration
Includes
Fittings, Bellows
Motor Type
Permanent Magnet
Motor RPM
2,600 RPM
Housing Material - Pumps
Polypropylene
Max. Outlet Pressure
15 psi
Includes Suction Tube
Yes
Rated Voltage
12 V DC
Compatible Chemicals
Fertilizers, Herbicides, Mild Acid, Pesticides, Water
Thermal Protection
Yes
Meter Type
Digital
Max. Flow Rate
13 gpm
For Media Type
Fertilizers, Herbicides, Mild Acid, Pesticides, Water
Power Source
Corded Electric
Hose Tube Material
EPDM
Includes Discharge Hose
Yes
Motor HP
1/4 hp
Suction Tube ID
1 3/16 in
Suction Tube Material
Polypropylene
Static Protection
No Grounding Line Included
Includes Follower Plate
No Follower Plate Included
Maximum Flow Rate
13 gpm
Motor Speed
2,600 RPM
Meter Unit Of Measure
Gallons, Liters, Pints
Adapter Connection Standard
MNPT
Includes Nozzle
Yes
Maximum Outlet Pressure
15 psi
Meter Type Included
Digital
Container Cover Type Included
No Cover Included
Pump Connection OD
1 3/8 in
Pump Technology
Diaphragm
Chemical Compatibility
Fertilizers, Herbicides, Pesticides, Water
Hose Cover Material
EPDM
Nozzle Material
Polypropylene
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Maximum Viscosity
30 SUS
Minimum Fluid Temperature
-40 Degrees F
Suction Tube OD
1 5/16 in
Maximum Head
37 ft
Nozzle Operation
Manual
Pump Connection ID
1 in
Maximum Fluid Temperature
150 Degrees F
Variable Speed
No
Wetted Material
Buna-N/Santoprene/Stainless Steel
Motor Horsepower
1/4 hp
For Container Type
Drum
Includes Bung Adapter
Yes
Discharge Connection Type
FNPT
Includes Spout
Yes
Container Type Included
Drum
Spout Material
Polypropylene

Description

Electric Drum Pump, Max. Outlet Pressure 15 psi, For Use With Fertilizers, Mild Acid, Pesticides, Water, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD 1 5/16 in, Hose Length 12 ft, Suction Tube Length 45 5/8 in, Cord Length 20 ft, Includes Bung Adapter Yes, Nozzle Operation Manual, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming No
