Shop FILL-RITE

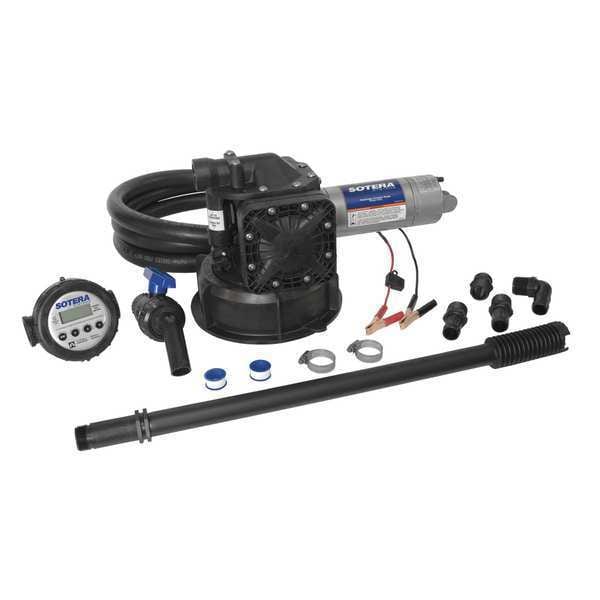

Fuel Transfer Pump, 12V DC, 13 gpm Max. Flow Rate , 1/4 HP, Polypropylene, 1 in NPT Inlet

  • Mfr # SS445BX727

  • Zoro # G4315766

product price:
$
1,177.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Agricultural; Industrial Chemicals and Lubricants
HP
1/4
Housing Material
Polypropylene
GPM
13 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SS445BX727
Zoro #
G4315766
UPC #
089404212288
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Overall Height
6 1/4 in
Hose Length
12 ft
Power Cord Length
20 ft
Pump Mount Size
2 in
Overall Width
14 in
Overall Length
8 3/4 in
Outlet Size
1 in NPT
Hose Dia.
1 in
Suction Tube Length
45 5/8 in
Manufacturers Warranty Length
5 yr
Cord Length
20 ft
Hose Outside Dia.
1 in
Spout Discharge Size
1 in
Hose Inside Diameter
1 in
Hose Outside Diameter
1 3/8 in
Adapter Connection Diameter
2 in
Spout Length
3 1/2 in
For Container Size
55 gal, 350 gal
Wire Rope Length
8 3/4 in
Length
8 3/4 in

Details

Voltage
12V DC
Application
Agricultural; Industrial Chemicals and Lubricants
HP
1/4
Housing Material
Polypropylene
GPM
13 gpm
Seal Material
EPDM
RPM
2600
Pump Design
Santoprene Diaphragm
Self-Priming
No
Seal Type
O-ring
Max. Viscosity
30 SUS
Item
Electric Drum Pump
Bypass Valve
No
Bearing Type
Ball
Metered
Yes
Compatible Fluids
Fertilizers, Mild Acid, Pesticides, Water
Features
Automatically Goes Neutral, Glass-Reinforced Polypropylene Pump Housing, Spring Driven Configuration
Transfer Pump Application
Agriculture, Construction, Farming
Pressure Range
15 psi
Includes
Fittings, Bellows
Duty Cycle
30 Minutes On/30 Minutes Off
For Use With
Fertilizers, Mild Acid, Pesticides, Water
Motor Type
Permanent Magnet
Motor RPM
2,600 RPM
Housing Material - Pumps
Polypropylene
Thermal Protection
Yes
Max. Outlet Pressure
15 psi
Includes Discharge Hose
Yes
For Media Type
Fertilizers, Herbicides, Mild Acid, Pesticides, Water
Motor HP
1/4 hp
Compatible Chemicals
Fertilizers, Herbicides, Mild Acid, Pesticides, Water
Meter Type
Digital
Includes Suction Tube
Yes
Rated Voltage
12 V DC
Power Source
Corded Electric
Max. Flow Rate
13 gpm
Hose Tube Material
EPDM
Meter Type Included
Digital
Pump Connection OD
1 3/8 in
Includes Follower Plate
No Follower Plate Included
Motor Speed
2,600 RPM
Maximum Outlet Pressure
15 psi
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Suction Tube Material
Polypropylene
Spout Material
Polypropylene
Meter Unit Of Measure
Gallons, Liters, Pints
Wetted Material
Buna-N/Santoprene/Stainless Steel
Pump Technology
Diaphragm
Hose Cover Material
EPDM
Discharge Connection Type
FNPT
Includes Bung Adapter
Yes
Includes Nozzle
Yes
Maximum Viscosity
30 SUS
Adapter Connection Standard
MNPT
Container Cover Type Included
No Cover Included
Motor Horsepower
1/4 hp
Maximum Flow Rate
13 gpm
Suction Tube OD
1 5/16 in
For Container Type
Drum
Maximum Head
37 ft
Suction Tube ID
1 3/16 in
Nozzle Operation
Manual
Static Protection
No Grounding Line Included
Variable Speed
No
Includes Spout
No
Nozzle Material
Polypropylene
Container Type Included
Drum
Pump Connection ID
1 in
Chemical Compatibility
Fertilizers, Herbicides, Pesticides, Water
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Max. Outlet Pressure 15 psi, For Use With Fertilizers, Mild Acid, Pesticides, Water, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD 1 5/16 in, Hose Length 12 ft, Suction Tube Length 45 5/8 in, Cord Length 20 ft, Includes Bung Adapter Yes, Nozzle Operation Manual, Thermal Protection Yes, Power Source - TS Only Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming No
