Shop FILL-RITE

Fuel Transfer Pump, 12V DC, 15 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in Inlet

  • Mfr # FR1210HA

  • Zoro # G9791512

product price:
$
562.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Farming; Construction
HP
1/4
Housing Material
Cast Iron
GPM
15 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR1210HA
Zoro #
G9791512
UPC #
089404223086
Country of Origin
United States

Dimensions

Inlet Size
1 in
Hose Length
12 ft
Suction Tube Length
34 1/2 in
Overall Length
12 1/4 in
Power Cord Length
18 ft
Hose Dia.
3/4 in
Pump Mount Size
2 in
Manufacturers Warranty Length
2 yr
Overall Width
9 in
Outlet Size
3/4 in
Overall Height
9 in
Cord Length
18 ft
Hose Outside Dia.
3/4 in
For Container Size
35 gal, 55 gal, 275 gal, 500 gal
Spout Length
6 1/2 in
Hose Inside Diameter
3/4 in
Adapter Connection Diameter
2 in
Hose Outside Diameter
1 1/8 in
Spout Discharge Size
3/4 in
Wire Rope Length
12 1/4 in
Length
12 1/4 in

Details

Voltage
12V DC
Application
Farming; Construction
HP
1/4
Housing Material
Cast Iron
GPM
15 gpm
Seal Material
Buna-N
RPM
2600
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
O-ring
Max. Viscosity
39.5 SUS
Item
Electric Drum Pump
Metered
No
Nozzle Type
Automatic
Bypass Valve
Yes
Duty Cycle
30 Minutes On/30 Minutes Off
Bearing Type
Sealed
Transfer Pump Application
Agriculture, Barrel Mounting, Construction, Stationary Installations, Tank
Standards
cULus
Nozzle Material
Aluminum
Pressure Range
16 psi
Compatible Fluids
Biodiesel, Diesel, Gasoline
Includes
Hose, Installation Components
Agency Compliance
cULus
Motor Type
Permanent Magnet
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Motor RPM
2,600 RPM
Max. Head - Pumps
37 ft
Housing Material - Pumps
Cast Iron
Max. Flow Rate
15 gpm
Includes Nozzle
Yes
Full Load Amps
26.0 A
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Includes Discharge Hose
Yes
Max. Head Pressure
16 psi
Mount Type
Bung
Power Source
Corded Electric
Includes Suction Tube
Yes
Rated Voltage
12 V DC
Max. Outlet Pressure
16 psi
Nozzle Operation
Automatic
Runs Dry
Yes
Nozzle Fluid Compatibility
Gasoline
Thermal Protection
Yes
Motor HP
1/4 hp
Discharge Connection Type
FNPT
Pump Connection Type
NPT
Motor Speed
2,600 RPM
Minimum Fluid Temperature
-40 Degrees F
Pump Technology
Vane
Container Type Included
Drum
Includes Follower Plate
No Follower Plate Included
Motor Horsepower
1/4 hp
Full Load Current
26 A
For Container Type
Tank
Hose Cover Material
Neoprene
Maximum Head Pressure
16 psi
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Includes Bung Adapter
Yes
Container Cover Type Included
No Cover Included
Suction Tube Material
Steel
Adapter Connection Standard
MNPT
Suction Tube OD
1 5/16 in
Maximum Head
37 ft
Spout Material
Aluminum
Chemical Compatibility
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Pump Connection OD
1 1/8 in
Maximum Fluid Temperature
150 Degrees F
Maximum Viscosity
39.5 SUS
Hose Tube Material
Nitrile
Pump Connection ID
3/4 in
Maximum Flow Rate
15 gpm
Static Protection
Grounding Line Included
Meter Type Included
No Meter Included
Hazardous Location Class
Class I/Division 1
Variable Speed
No
Includes Spout
Yes
Suction Tube ID
1 3/16 in
Maximum Outlet Pressure
16 psi
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

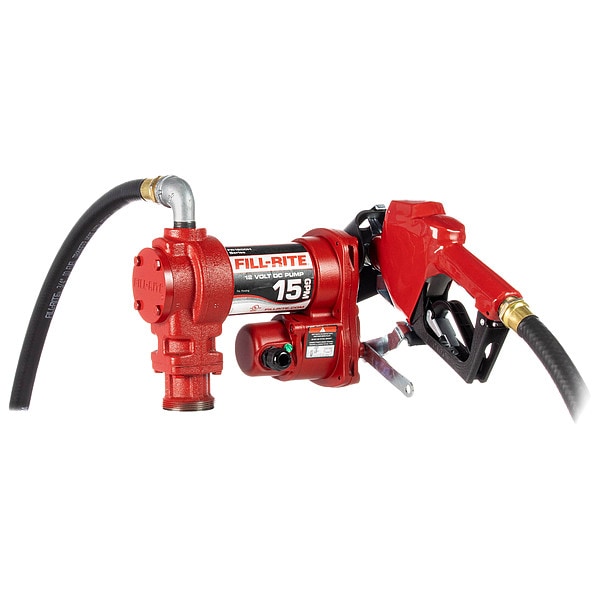

The FILL-RITE FR1210HA is a 12V DC fuel transfer pump with a rotary vane design and a maximum flow rate of 15 GPM. It is built with a cast iron housing and mounts to a 2 in bung for use on tanks, including mobile transfer tanks and stationary installations. This bundle includes a 12 ft hose, automatic nozzle, 33 in suction pipe, and installation components. The pump is designed for use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up to B20, kerosene, and mineral spirits.

Key Features of the FILL-RITE FR1210HA Fuel Transfer Pump:

  • 12V DC Operation: Runs on 12V DC power for connection to 12-volt battery systems.
  • Flow Rate: Delivers up to 15 GPM for fuel transfer applications.
  • Pump Design: Rotary vane pump design with self-priming capability.
  • Construction: Cast iron housing with sealed bearings for field and job site use.
  • Mounting: 2 in bung mount for tank installation.
  • Included Components: Comes with a 12 ft x 3/4 in hose, automatic aluminum nozzle, 33 in suction tube, and installation components.
  • Fluid Compatibility: Compatible with biodiesel, diesel, gasoline, kerosene, mineral spirits, and ethanol blends up to E15.
  • Motor Protection: Thermally protected 1/4 HP permanent magnet motor with a 30 minutes on/30 minutes off duty cycle.
  • Pressure: Maximum outlet pressure of 16 psi.
  • Power Cord: Includes an 18 ft power cord for wiring flexibility.
  • Additional Features: Includes a bypass valve, run-dry capability, and built-in strainer for filtering particulates.
