  9. Fuel Transfer Pump, 12VDC, 20 GPM, 1/4 HP, Cast Iron, 1 in. NPT Inlet

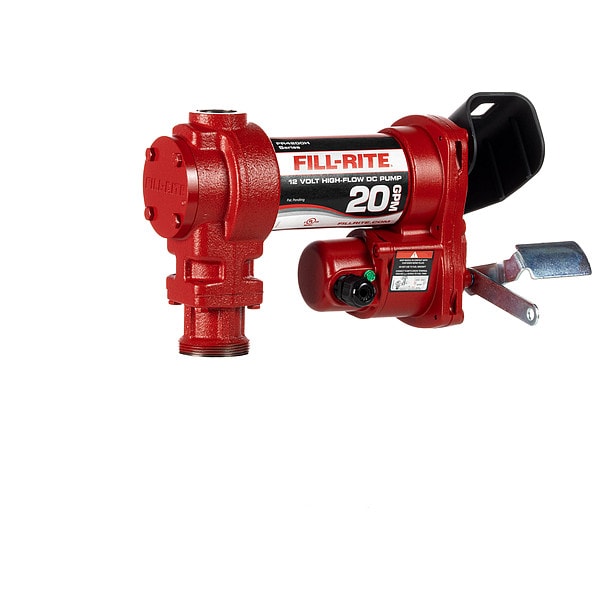

Fill-Rite Fuel Transfer Pump, 12VDC, 20 GPM, 1/4 HP, Cast Iron, 1 in. NPT Inlet FR4204H - main

Fuel Transfer Pump, 12VDC, 20 GPM, 1/4 HP, Cast Iron, 1 in. NPT Inlet

  • Mfr # FR4204H

  • Zoro # G9791467

product price: $592.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
Inlet Size
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FR4204H
Zoro #
G9791467
UPC #
089404223154
Country of Origin
United States

Dimensions

Inlet Size
1 in
Outlet Size
1 in
Overall Width
9 in
Overall Height
9 in
Manufacturers Warranty Length
2 yr
Pump Mount Size
2 in
Overall Length
12 1/4 in
Cord Length
18 ft
Height Above Container
8 3/8 in
Bung Connection Dia.
2 in
For Container Size
275 gal

Details

Voltage
12V DC
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
Seal Material
Buna-N
RPM
2600
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
O-ring
Max. Viscosity
4 cSt
Item
Fuel Transfer Pump
Duty Cycle
30 Minutes On/30 Minutes Off
Standards
ATEX, CE, cUL Motor, UL
Pressure Range
16 psi
Bearing Type
Adjustable
Compatible Fluids
Biodiesel, Diesel, Gasoline
Bypass Valve
Yes
Transfer Pump Application
Agriculture, Barrel Mounting, Construction, Stationary Installations, Tank
Metered
No
Motor Type
Permanent Magnet
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Adapter Material
Cast Iron
Agency Compliance
cULus
Motor Enclosure
Explosion Proof
Includes
Installation Components
Housing Material - Pumps
Cast Iron
Max. Head - Pumps
37 ft
Motor RPM
2,600 RPM
Variable Speed
No
Min. Fluid Temp.
-40 Degrees F
Includes Nozzle
No
Max. Fluid Temp.
150 Degrees F
Food Grade
No
Includes Bung Adapter
Yes
Motor HP
1/4 hp
Diesel Exhaust Fluid Compatible
No
Max. Flow Rate
20 gpm
Full Load Amps
28.0 A
Suction Tube OD
1 in
Power Source
Electric
Pump Connection Type
NPT
Mount Type
Bung
Max. Head Pressure
16 psi
Adapter Connection Type
MNPT
Explosion Proof
Yes
Thermal Protection
Yes
Max. Outlet Pressure
16 psi
Includes Suction Tube
No
Includes Discharge Hose
No
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Rated Voltage
12V DC
Runs Dry
Yes
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Discharge Connection Type
NPT

Description

Fuel Transfer Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, Rated Voltage 12V DC, Suction Tube OD 1 in, Hose Length Not Applicable, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Not Applicable, Thermal Protection Yes, Frequency (Hz) Not Applicable, Power Source Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes, Compatible Chemicals Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits, Discharge Connection Type NPT

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
