Shop FILL-RITE

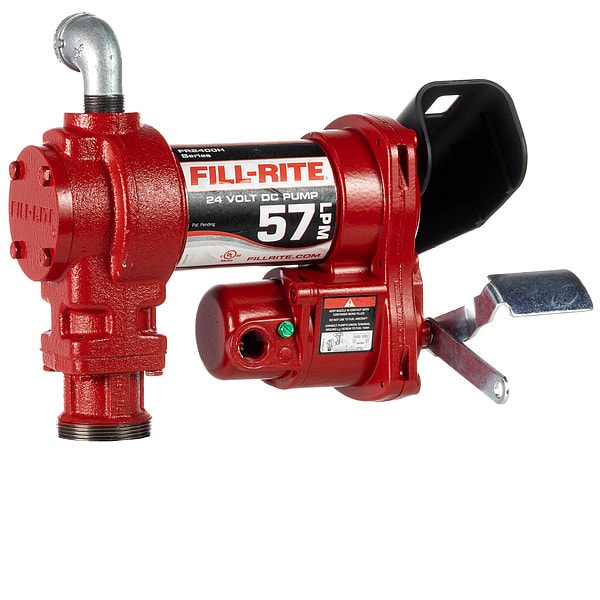

Fuel Transfer Pump, 24V DC, 15 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in Inlet

  • Mfr # FR2404H

  • Zoro # G9791485

product price:  $471.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V DC
Application
Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit
HP
1/4
Housing Material
Cast Iron
GPM
15 gpm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FR2404H
Zoro #
G9791485
UPC #
089404223383
Country of Origin
United States

Dimensions

Inlet Size
1 in
Pump Mount Size
2 in
Overall Width
9 in
Manufacturers Warranty Length
2 yr
Overall Height
9 in
Overall Length
12 1/4 in
Outlet Size
3/4 in
Cord Length
18 ft
For Container Size
35 gal, 55 gal, 275 gal, 500 gal
Height Above Container
8 3/8 in
Bung Connection Dia.
2 in
Adapter Connection Diameter
2 in

Details

Voltage
24V DC
Application
Designed for Gasoline, Diesel, Biodiesel Up to B20, E15, Kerosene and Mineral Spirit
HP
1/4
Housing Material
Cast Iron
GPM
15 gpm
Seal Material
Buna-N
RPM
2600
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
O-ring
Max. Viscosity
4 cSt
Item
Electric Drum Pump
Compatible Fluids
Biodiesel, Diesel, Gasoline
Bearing Type
Adjustable
Metered
No
Transfer Pump Application
Agriculture, Barrel Mounting, Construction, Stationary Installations, Tank
Bypass Valve
Yes
Standards
cULus
Duty Cycle
30 Minutes On/30 Minutes Off
Pressure Range
16 psi
Motor Type
Permanent Magnet
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Agency Compliance
cULus
Adapter Material
Cast Iron
Motor Enclosure
Explosion Proof
Includes
Installation Components
Housing Material - Pumps
Cast Iron
Max. Head - Pumps
37 ft
Motor RPM
2,600 RPM
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Runs Dry
Yes
Power Source
Corded Electric
Explosion Proof
Yes
Includes Bung Adapter
Yes
Discharge Connection Type
FNPT
Diesel Exhaust Fluid Compatible
No
Adapter Connection Type
MNPT
Max. Outlet Pressure
16 psi
Includes Suction Tube
No
Min. Fluid Temp.
-40 Degrees F
Food Grade
No
Full Load Amps
15.0 A
Max. Flow Rate
15 gpm
Max. Head Pressure
16 psi
Max. Fluid Temp.
150 Degrees F
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Includes Discharge Hose
No
Pump Connection Type
NPT
Motor HP
1/4 hp
Mount Type
Bung
Includes Nozzle
No
Variable Speed
No
Thermal Protection
Yes
Rated Voltage
24 V DC
Maximum Outlet Pressure
16 psi
Container Type Included
Drum
Pump Connection ID
3/4 in
Includes Spout
No
Chemical Compatibility
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Pump Connection OD
1 1/8 in
Meter Type Included
No Meter Included
Static Protection
Grounding Line Included
Maximum Fluid Temperature
150 Degrees F
Includes Follower Plate
No Follower Plate Included
Maximum Viscosity
4 cSt
Housing Finish
Baked Enamel
Container Cover Type Included
No Cover Included
Motor Speed
2,600 RPM
Hazardous Location Class
Class I/Division 1
Maximum Head
37 ft
For Container Type
Tank
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Maximum Flow Rate
15 gpm
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Maximum Head Pressure
16 psi
Minimum Fluid Temperature
-40 Degrees F
Adapter Connection Standard
MNPT
Motor Horsepower
1/4 hp
Full Load Current
15 A
Pump Technology
Vane

Description

Electric Drum Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, Rated Voltage 24 V DC, Plug Type Not Applicable, Pump Connection ID 3/4 in, Suction Tube OD Not Applicable, Hose Length Not Applicable, Suction Tube Length Not Applicable, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Not Applicable, Thermal Protection Yes, Frequency (Hz) Not Applicable, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes
