Shop FILL-RITE

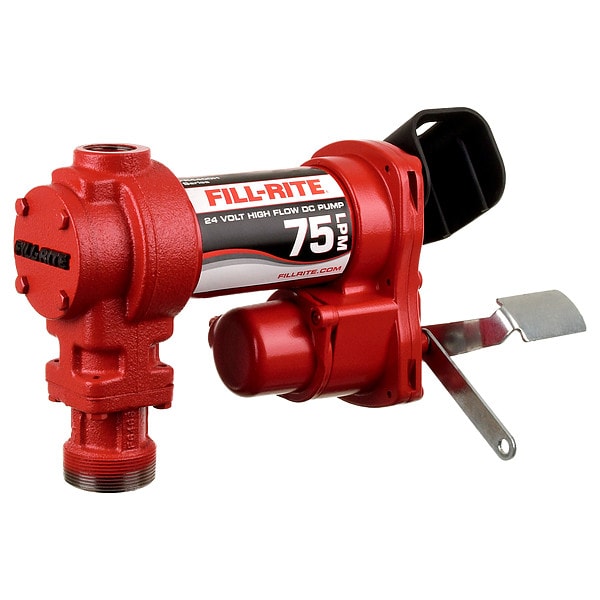

Fuel Transfer Pump, 24V DC, 20 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in NPT Inlet

  • Mfr # FR4406H

  • Zoro # G4315711

product price:
$
779.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V DC
Application
Fuel Transfer Pump Designed for Gasoline, Diesel, Biodiesel up to B20, E15 and Kerosene
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FR4406H
Zoro #
G4315711
UPC #
089404223376
Country of Origin
United States
Voltage
24V DC
Application
Fuel Transfer Pump Designed for Gasoline, Diesel, Biodiesel up to B20, E15 and Kerosene
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
Seal Material
Carbon
RPM
2600
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
O-ring
Max. Viscosity
4 cSt
Item
Electric Drum Pump
Pressure Range
0 psi to 16 psi
Standards
cULus
Metered
No
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Bypass Valve
Yes
Duty Cycle
30 Minutes On/30 Minutes Off
Features
Iron Rotor with Carbon Rotary Vanes, Pressure Relief Valve, Self Priming
Transfer Pump Application
Agriculture, Construction, Farming
Bearing Type
Sealed Ball
For Use With
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Adapter Material
Cast Iron
Motor Type
Permanent Magnet
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Agency Compliance
cULus
Motor Enclosure
Explosion Proof
Includes
Installation Components
Max. Head - Pumps
37 ft
Housing Material - Pumps
Cast Iron
Motor RPM
2,600 RPM
Adapter Connection Type
MNPT
Max. Flow Rate
20 gpm
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Food Grade
No
Min. Fluid Temp.
-40 Degrees F
Variable Speed
No
Runs Dry
Yes
Includes Discharge Hose
No
Max. Fluid Temp.
150 Degrees F
Discharge Connection Type
FNPT
Pump Connection Type
NPT
Power Source
Corded Electric
Includes Nozzle
No
Full Load Amps
18.0 A
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Includes Suction Tube
No
Max. Head Pressure
16 psi
Max. Outlet Pressure
16 psi
Diesel Exhaust Fluid Compatible
No
Rated Voltage
24 V DC
Thermal Protection
Yes
Includes Bung Adapter
Yes
Motor HP
1/4 hp
Mount Type
Bung
Explosion Proof
Yes
Includes Spout
No
Housing Finish
Baked Enamel
Motor Speed
2,600 RPM
Includes Follower Plate
No Follower Plate Included
For Container Type
Tank
Motor Horsepower
1/4 hp
Static Protection
Grounding Line Included
Container Type Included
Drum
Minimum Fluid Temperature
-40 Degrees F
Adapter Connection Standard
MNPT
Pump Connection ID
1 in
Pump Technology
Vane
Maximum Head
37 ft
Chemical Compatibility
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Maximum Flow Rate
20 gpm
Meter Type Included
No Meter Included
Hazardous Location Class
Class I/Division 1
Maximum Fluid Temperature
150 Degrees F
Maximum Viscosity
4 cSt
Pump Connection OD
1 3/8 in
Maximum Head Pressure
16 psi
Maximum Outlet Pressure
16 psi
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Full Load Current
18 A
Container Cover Type Included
No Cover Included
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, For Use With Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline, Rated Voltage 24 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD Not Applicable, Hose Length Not Applicable, Suction Tube Length Not Applicable, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Not Applicable, Thermal Protection Yes, Frequency (Hz) Not Applicable, Power Source Corded Electric
