Shop FILL-RITE

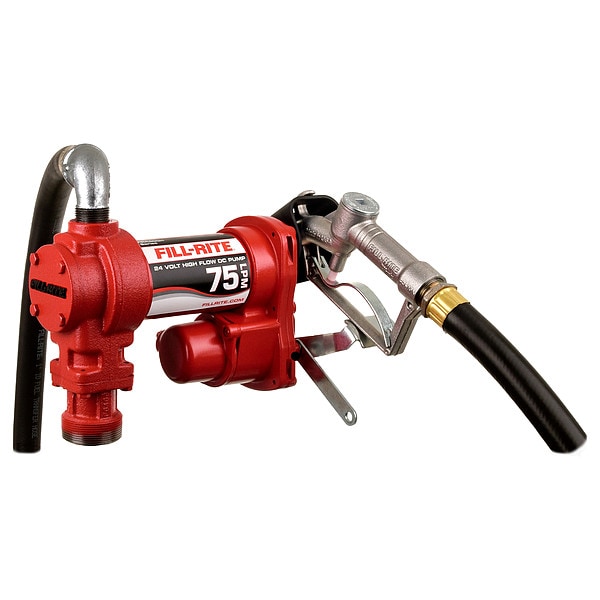

Fuel Transfer Pump, 24V DC, 20 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in NPT Inlet

  • Mfr # FR4410H

  • Zoro # G4315915

product price:  $669.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V DC
Application
Fuel Transfer Pump Designed for Gasoline, Diesel, Biodiesel up to B20, E15, Kerosene and Mineral Spirits
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR4410H
Zoro #
G4315915
UPC #
089404223222
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Hose Dia.
1 in
Pump Mount Size
2 in
Hose Length
12 ft
Power Cord Length
18 ft
Overall Length
11 in
Overall Width
13 in
Suction Tube Length
34 1/2 in
Outlet Size
1 in NPT
Manufacturers Warranty Length
2 yr
Overall Height
8 in
Cord Length
18 ft
Hose Outside Dia.
1 in
For Container Size
35 gal, 55 gal, 275 gal, 500 gal
Spout Discharge Size
1 in
Spout Length
6 in
Hose Inside Diameter
1 in
Hose Outside Diameter
1 3/8 in
Adapter Connection Diameter
2 in
Wire Rope Length
11 in

Details

Voltage
24V DC
Application
Fuel Transfer Pump Designed for Gasoline, Diesel, Biodiesel up to B20, E15, Kerosene and Mineral Spirits
HP
1/4
Housing Material
Cast Iron
GPM
20 gpm
Seal Material
Carbon
RPM
2600
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
O-ring
Max. Viscosity
39.5 SUS
Item
Electric Drum Pump
For Use With
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Features
Iron Rotor with Carbon Rotary Vanes, Pressure Relief Valve, Self Priming
Standards
cULus
Nozzle Material
Aluminum
Transfer Pump Application
Agriculture, Construction, Farming
Nozzle Type
Manual
Includes
Battery, Cable
Pressure Range
0 psi to 16 psi
Bypass Valve
Yes
Duty Cycle
30 Minutes On/30 Minutes Off
Bearing Type
Sealed Ball
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Metered
No
Agency Compliance
cULus
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Motor Type
Permanent Magnet
Max. Head - Pumps
37 ft
Housing Material - Pumps
Cast Iron
Motor RPM
2,600 RPM
Max. Outlet Pressure
16 psi
Mount Type
Bung
Nozzle Fluid Compatibility
Diesel
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Max. Head Pressure
16 psi
Full Load Amps
18.0 A
Includes Nozzle
Yes
Runs Dry
Yes
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Rated Voltage
24 V DC
Power Source
Corded Electric
Nozzle Operation
Manual
Pump Connection Type
NPT
Includes Discharge Hose
Yes
Thermal Protection
Yes
Motor HP
1/4 hp
Includes Suction Tube
Yes
Max. Flow Rate
20 gpm
Discharge Connection Type
FNPT
Container Cover Type Included
No Cover Included
Maximum Head Pressure
16 psi
Hose Cover Material
Neoprene
Chemical Compatibility
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Hazardous Location Class
Class I/Division 1
Static Protection
Grounding Line Included
Includes Bung Adapter
Yes
Maximum Head
37 ft
Motor Speed
2,600 RPM
Pump Technology
Vane
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Hose Tube Material
Nitrile
Full Load Current
18 A
Spout Material
Aluminum
Suction Tube ID
1 3/16 in
Maximum Fluid Temperature
150 Degrees F
Includes Spout
Yes
Minimum Fluid Temperature
-40 Degrees F
Variable Speed
No
Motor Horsepower
1/4 hp
Pump Connection ID
3/4 in
Maximum Outlet Pressure
16 psi
Pump Connection OD
1 1/8 in
Meter Type Included
No Meter Included
Maximum Flow Rate
20 gpm
For Container Type
Tank
Maximum Viscosity
39.5 SUS
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Container Type Included
Drum
Adapter Connection Standard
MNPT
Suction Tube OD
1 5/16 in
Suction Tube Material
Steel
Includes Follower Plate
No Follower Plate Included
Power Source - TS Only
Corded Electric

Description

Electric Drum Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, For Use With Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline, Rated Voltage 24 V DC, Plug Type Not Applicable, Pump Connection ID 3/4 in, Suction Tube OD 1 5/16 in, Hose Length 12 ft, Suction Tube Length 34 1/2 in, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Manual, Thermal Protection Yes, Power Source - TS Only Corded Electric, Variable Speed No, Includes Discharge Hose Yes
