  9. Mechanical Flowmeter, Aluminum, 1 in FNPT, 5-20 GPM
Shop All Flowmeters
Fill-Rite

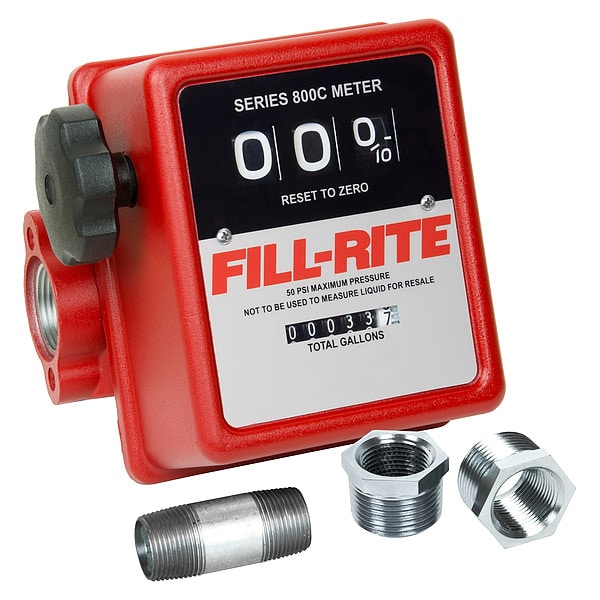

Mechanical Flowmeter, Aluminum, 1 in FNPT, 5-20 GPM

product price: $234.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Liquid
  • Housing Material Aluminum
  • For Pipe Size 1 in
  • Flow Material B20, Diesel, E15, Gasoline, Kerosene
  • Connection Size 1 in
See all product information

Product Information

  • Brand Fill-Rite
  • MFR # 807C1
  • Zoro # G2049451
  • UPC #
    089404110980
  • Country of Origin United States
  • Category Flowmeters

Dimensions

For Pipe Size 1 in
Connection Size 1 in
Height 6 in
Length 8 in
Connection Size (In.) 1 FNPT
Length (In.) 8"
Height (In.) 6
Width 6 in
Manufacturers Warranty Length 2 yr
Width (In.) 6"
Overall Height 6 in
Overall Width 6 in
Overall Length 4.9 in
Manufacturer Warranty Length 2 yr

Details

Item Mechanical Flowmeter
Type Liquid
Housing Material Aluminum
Flow Material B20, Diesel, E15, Gasoline, Kerosene
Connection Type FNPT
Max. Pressure 50 psi
Wetted Materials Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Max. Viscosity 50 SUS
Flow Range 5 to 20 gpm
Fluid Temp. Range -40 Degrees to 140 Degrees F
Agency Compliance UL Listed
Max. Pressure (PSI) 50
Standards CE Certified, cULus Listed
Chamber Material Ryton/Stainless Steel
Application B20, Diesel, E15, Gasoline, Kerosene
Thread NPT
Accuracy (%) +/-1
Seal Material Buna-N, Viton
Temp. 150 Degrees F
Flow Range (LPM) 19 to 75
Max. Temp. (F) 150
Resetable Cumulative Totalizer 100 gal
GPM Max. 20 gpm
Display Mechanical
Flow Range (GPM) 5 to 20
Master Totalizer 99.9 gal
Max. Viscosity (SSU) 50
Output Type Standard Frequency Pulse
Display Type Mechanical
Shaft Material Stainless Steel
Product Type Mechanical Fuel Transfer Meter
Accuracy +/-1%
Operating Pressure - Maximum 50 psi
Viscosity - Maximum 50 SUS
Includes Totalizer Yes
Media Temperature - Maximum 140 Degrees F
Rotor Material PPS
Flow Rate - Minimum 5 gpm
Media Temperature - Minimum -40 Degrees F
Compatible Flow Material Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids
Mounting Orientation Universal
Includes Pressure Gauge No
Flowmeter Type Paddlewheel
Pulse Rate 10 pulses/gal
Includes Flow Rate Adjustment Knob Yes
Unit Of Measure Gallons
O-Ring Material Buna-N
Flow Rate - Maximum 20 gpm
Wetted Material Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel

Description

Mechanical Flowmeter, Product Type Mechanical Fuel Transfer Meter, Flowmeter Type Paddlewheel, Accuracy +/-1 Percent, Connection Size 1 in, Connection Type FNPT, Compatible Flow Material Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 50 SUS, Voltage - Maximum Not Applicable, Housing Material Aluminum, Rotor Material PPS, O-Ring Material Buna-N, Seal Material Buna-N, Viton

Restrictions

  • Hazardous material
