Meter, 1-1/2 FNPT, 6-40 gpm

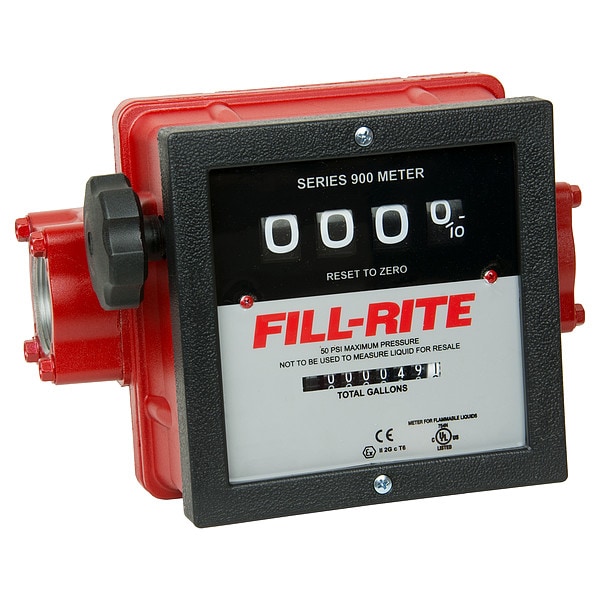

The FILL-RITE 901C1.5 is a 4-digit mechanical flowmeter for fuel transfer applications. It uses NPT threaded 1-1/2 in FNPT connections and measures flow rates from 6 to 40 gpm with an accuracy of +/-2%. The meter is designed for use with diesel, gasoline, kerosene, solvents, and other petroleum fluids, and it operates across a fluid temperature range of -40 to 140 degrees F. This model does not include additional installation components.

Key Features:

• Mechanical display: 4-digit register shows batch totals in gallons.
• Totalizer: Includes a non-resettable lifetime total counter and a resettable cumulative totalizer.
• Flow range: Measures from 6 to 40 gpm (23 to 151 lpm) for fuel transfer systems.
• Accuracy: Registers flow within +/-2%.
• Connection: 1-1/2 in FNPT ports with NPT threads.
• Construction: Cast-aluminum housing with Ryton and stainless steel chamber components.
• Pressure rating: Maximum operating pressure of 50 psi.
• Temperature range: Rated for fluid temperatures from -40 to 140 degrees F.
• Flow adjustment: Includes a flow rate adjustment knob.
• Mounting: Universal mounting orientation for installation flexibility.
• Pulse output: Standard frequency pulse output at 10 pulses per gallon.
• Compatible fluids: Suitable for B20, diesel, E15, gasoline, and kerosene.
