Shop FILL-RITE

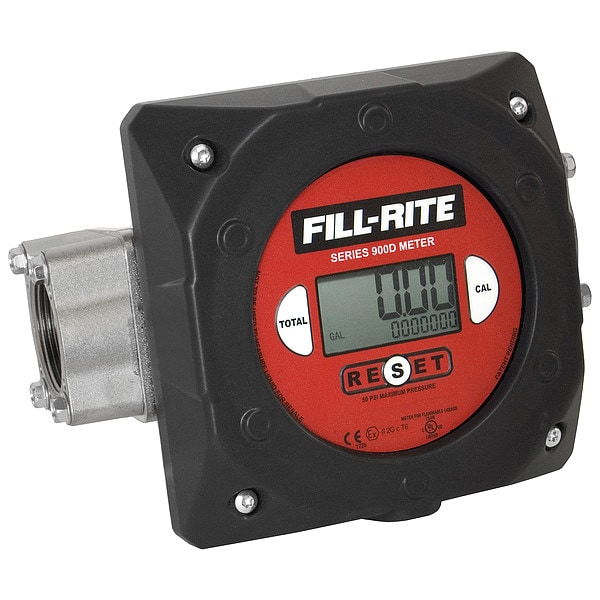

Meter, 1-1/2 In, 6 to 40 GPM

  • Mfr # 900CD1.5

  • Zoro # G6613442

product price:  $508.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Aluminum
Type
Liquid
For Pipe Size
1 1/2 in
Connection Size
1 1/2 in
Flow Material
Diesel Fuel, Gasoline, Kerosene, Light oil, Stoddard Fluids
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
900CD1.5
Zoro #
G6613442
UPC #
089404223734
Country of Origin
United States

Dimensions

For Pipe Size
1 1/2 in
Connection Size
1 1/2 in
Height (In.)
8
Connection Size (In.)
1-1/2 FNPT
Length (In.)
8"
Width
8 in
Height
8 in
Width (In.)
8"
Length
8 in
Manufacturers Warranty Length
2 yr
Overall Height
8 in
Overall Width
8 in
Overall Length
4.5 in
Manufacturer Warranty Length
2 yr
Wire Rope Length
4.5 in

Details

Item
Mechanical Flowmeter
Housing Material
Aluminum
Type
Liquid
Flow Material
Diesel Fuel, Gasoline, Kerosene, Light oil, Stoddard Fluids
Connection Type
FNPT
Max. Pressure
50 psi
Wetted Materials
Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Max. Viscosity
50 SUS
Flow Range
6 to 40 gpm
Fluid Temp. Range
-40 Degrees to 140 Degrees F
Fitting
1-1/2 in NPT
Insert
Nickel Plated Aluminum
Thread
NPT
Max. Viscosity (SSU)
50
Chamber Material
Niclel Plated Aluminum
Standards
ATEX, cULus Listed
Flow Range (LPM)
23 to 151
Accuracy (%)
+/-125
Flow Range (GPM)
6 to 40
Max. Pressure (PSI)
50
Max. Temp. (F)
150
Resetable Cumulative Totalizer
99,999 gal
O-Ring
Buna/Viton
Display
Digital
Temp.
140 Degrees F
Application
B20, Diesel, E15, Gasoline, Kerosene
Seal Material
Buna-N, Viton
GPM Max.
40 gpm
Master Totalizer
999.9 gal
Output Type
Standard Frequency Pulse
Shaft Material
Stainless Steel
Display Type
Digital
Product Type
Fuel Meter
Media Temperature - Minimum
-40 Degrees F
Rotor Material
PPS
Wetted Material
Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel
Pulse Rate
10 pulses/gal
Viscosity - Maximum
50 SUS
Includes Flow Rate Adjustment Knob
Yes
Flow Rate - Minimum
6 gpm
Includes Totalizer
Yes
Mounting Orientation
Universal
Unit Of Measure
Gallons, Liters
O-Ring Material
Buna-N
Accuracy
+/-1.25%
Flowmeter Type
Paddlewheel
Flow Rate - Maximum
40 gpm
Compatible Flow Material
B20, Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids
Includes Pressure Gauge
No
Media Temperature - Maximum
140 Degrees F
Operating Pressure - Maximum
50 psi

Description

Mechanical Flowmeter, Product Type Fuel Meter, Flowmeter Type Paddlewheel, Accuracy +/-1.25 Percent, Connection Size 1 1/2 in, Connection Type FNPT, Compatible Flow Material B20, Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 50 SUS, Voltage - Maximum Not Applicable, Housing Material Aluminum, Rotor Material PPS, O-Ring Material Buna-N, Seal Material Buna-N, Viton

Restrictions

Hazardous material
This is a restricted item in the USA. It cannot be used for potable water applications.
