Fill-Rite

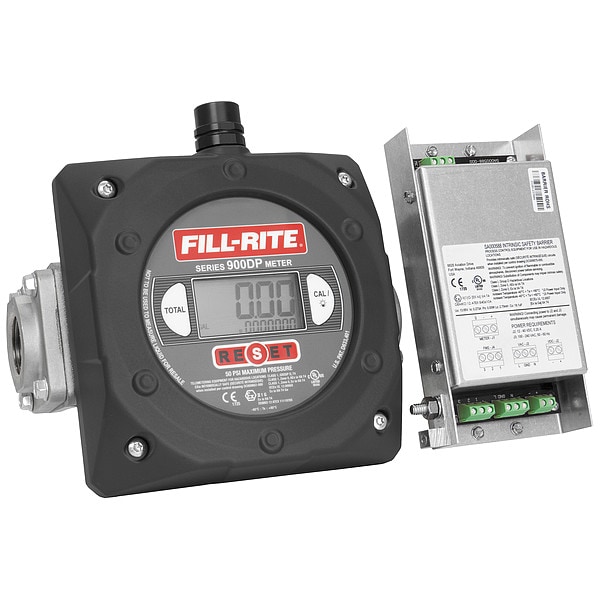

Meter, Digital, 1-1/2 BSPT, 23-151 LPM

product price: $482.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Liquid
  • Housing Material Aluminum
  • For Pipe Size 1 1/2 in
  • Connection Size 1 1/2 in
  • Flow Material Diesel Fuel, Gasoline, Kerosene, Light oil, Stoddard Fluids
See all product information

Product Information

  • Brand Fill-Rite
  • MFR # 900CD1.5BSPT
  • Zoro # G6925852
  • UPC #
    089404223741
  • Country of Origin United States
  • Category Flowmeters

Dimensions

For Pipe Size 1 1/2 in
Connection Size 1 1/2 in
Height 8 in
Length 8 in
Manufacturers Warranty Length 2 yr
Width 8 in
Length (In.) 8"
Connection Size (In.) 1-1/2 BSPT
Width (In.) 8"
Height (In.) 8
Overall Width 8 in
Overall Height 8 in
Overall Length 8 in
Manufacturer Warranty Length 2 yr

Details

Item Mechanical Flowmeter
Type Liquid
Housing Material Aluminum
Flow Material Diesel Fuel, Gasoline, Kerosene, Light oil, Stoddard Fluids
Connection Type BSPT
Max. Pressure 50 psi
Wetted Materials Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Max. Viscosity 50 SUS
Flow Range 6 to 40 gpm
Fluid Temp. Range -40 Degrees to 140 Degrees F
Fitting 1-1/2 in BSPT
Resetable Cumulative Totalizer 99,999 gal
Standards ATEX, CE Certified, cULus Listed, IECEx
Seal Material Buna-N, Viton
Flow Range (LPM) 23 to 151
Display Digital
Insert Nickel Plated Aluminum
Flow Range (GPM) 6 to 40
Temp. 140 Degrees F
Application B20, Diesel, E15, Gasoline, Kerosene
Master Totalizer 999.9 gal
GPM Max. 40 gpm
Thread BSPP
Chamber Material Nickel Plated Aluminum
Max. Temp. (F) 150
Max. Pressure (PSI) 50
O-Ring Buna/Viton
Accuracy (%) +/-125
Max. Viscosity (SSU) 50
Shaft Material Stainless Steel
Output Type Standard Frequency Pulse
Display Type Digital
Product Type Digital Display Meter
O-Ring Material Buna-N
Media Temperature - Minimum -40 Degrees F
Compatible Flow Material Diesel, E15, Gasoline, Kerosene
Flowmeter Type Paddlewheel
Flow Rate - Maximum 40 gpm
Mounting Orientation Universal
Includes Totalizer Yes
Unit Of Measure Gallons, Liters
Accuracy +/-1.25%
Flow Rate - Minimum 6 gpm
Includes Pressure Gauge No
Operating Pressure - Maximum 50 psi
Rotor Material PPS
Includes Flow Rate Adjustment Knob Yes
Pulse Rate 10 pulses/gal
Viscosity - Maximum 50 SUS
Media Temperature - Maximum 140 Degrees F
Wetted Material Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel

Description

Mechanical Flowmeter, Product Type Digital Display Meter, Flowmeter Type Paddlewheel, Accuracy +/-1.25 Percent, Connection Size 1 1/2 in, Connection Type BSPT, Compatible Flow Material Diesel, E15, Gasoline, Kerosene, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 50 SUS, Voltage - Maximum Not Applicable, Housing Material Aluminum, Rotor Material PPS, O-Ring Material Buna-N, Seal Material Buna-N, Viton, Shaft Material Stainless Steel
